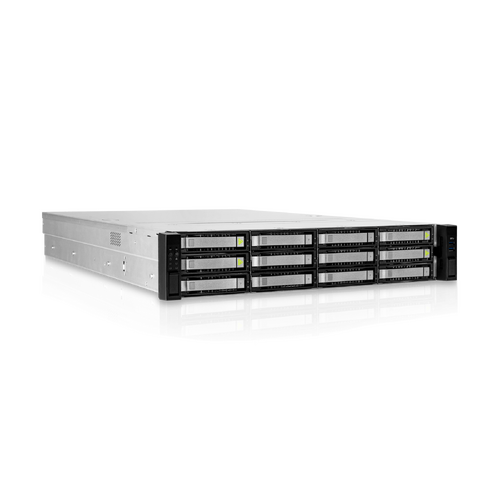

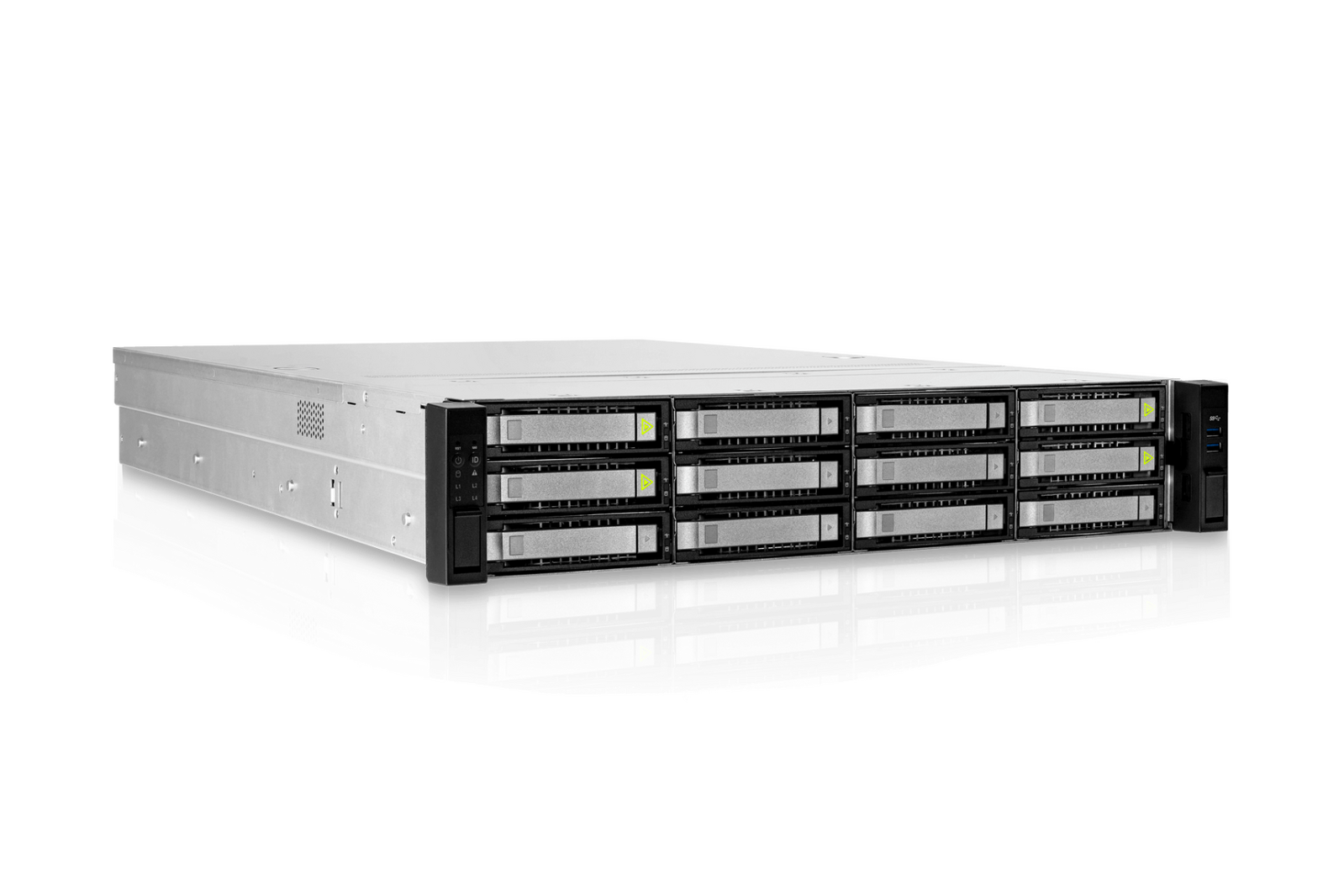

INWIN RS212 2U RACK SERVER CHASSIS/2x1200W RED PSUs/12x3.5" HOT SWAP MINI SAS HD

SPECIFICATIONS & DETAILS
Model Name
	IW-RS212-07
Specifications
MODEL SERIES	2U NVMe Hybrid Storage Server
Industry Standard	EIA-RS310D
M/B Form Factor	ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
Drive Bay	• External 2.5"/3.5" hot-swap trays x 12 (optional U.2 NVMe SSD tray x 4) • Rear 2.5" screwless hot-swap SSD trays x 2 (supports SAS 12Gbps)
Power Supply	• Form factor: 80 Plus Platinum • 1200W Redundant PSUs
Indicator	Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED
Front Control Panel	Power on/off, reset, NMI, ID SW, USB 3.0 x 2
Backplane Type-1	• Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 4 • HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4
Backplane Type-2	• Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 4 • HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4
12Gbps Expander Module	Supports LSI 3 x 36R expander
Cooling Fan	80 x 38mm PWM hot-swap fans x 4, 12000RPM Modular design with anti-vibration
Expansion Slot	Low-profile PCIe slots x 7
Material	• Material: SGCC • Thickness: 1.0mm
Rail Kit	Supports 28" tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only)	660 x 448 x 87.5mm (26 x 17.6" x 3.4")"
Package Dimensions (DxWxH)	845 x 595 x 223mm
Weight (Chassis Only)	• Net weight: 13.09kg • Gross weight: 16.51kg
Cubic Feet	3.96
Container Information	Single packing with pallets: • 20': 160pcs • 40': 368pcs • 40' HQ: 414pcs
12Gbps Backplane Specifications
Backplane Type-1	Mini-SAS HD & Slimline backplane
Dimension (W x H)	405mm x 72.3mm
Backplane Type	Active with expander onboard
Host Interface	Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 4
HDD Interface	SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4
Backplane Type-2	Mini-SAS HD & OCuLink backplane
Dimension (W x H)	405mm x 72.3mm
Backplane Type	Active with expander onboard
Host Interface	Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 4
HDD Interface	SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4
