Doss Bracket Range PDF

A full range of brackets to mount your flat panel TV to yourdesk, wall or ceiling.
PDF file View theentire range of Doss Brackets



Take the guess work out of finding the right bracket that will match your TV. Doss brackets and mounts are extremely easy to install and include all required mounting hardware and fixings to get the job done.

Installer Series

Ideal for Installers

This Doss bracket has been designed to be set up and ready to go right off the bat, allowing you to get the job done quicker and more efficiently.
Packaged in a mainly pre-assembled state, all you need to do is to mount the bracket to the wall and attach the TV!There's no need to follow complicated instructions and wastetime having to try to fit the pieces together!

Class: Large / 2 Pivot
Mount: Wall
Max Weight:

70 kg
Compliance: Vesa, Universal
Vesa sizes (mm): 75 x 75
100 x 100
200 x 200
200 x 400
400 x 400
Universal mount (max): 750 x 455 mm
Tilt: 15°
Turn: 180°
Distance from Wall: 110~610 mm
Back Plate Dimension: 680 (W) x 270 (H) mm
Material: Iron
Bracket Weight: 17.6 kg
Colour:

Black
Warranty: 12 months

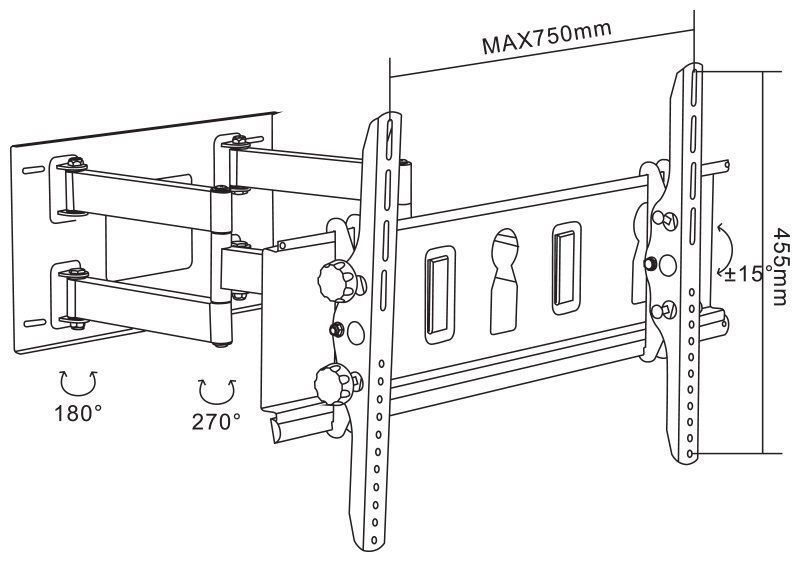

Line Drawing

Line drawing
Click on image to view larger version

(LCD08B)

12 month warranty

SKU LCD08B
Model # JT2702USA
Barcode # 9328202007872
Brand DOSS
Unit Of Measure each
Assembled Width 17.483m
