{tab Overview}

XRS370C4P XRS370C & AE4704B 4WD PACK - GME

The XRS 4WD pack is the latest addition to the revolutionaryrange of XRS radios, designed to be smart, adaptable and rugged.

Enabled by Bluetooth® Smart technology, the XRS Connect range are a new generation of connected UHF CB radios with unique features exclusive to GME; including the XRS Connect smartphone app, and the recently released, game-changing XRSConnect Location Services smartphone app.

Combined with a market-leading Speaker Microphone featuring a bright, anti-glare OLED display and powerful 2 watt front-facing speaker, the XRS Connect range of radios offer outstanding performance in the toughest conditions.

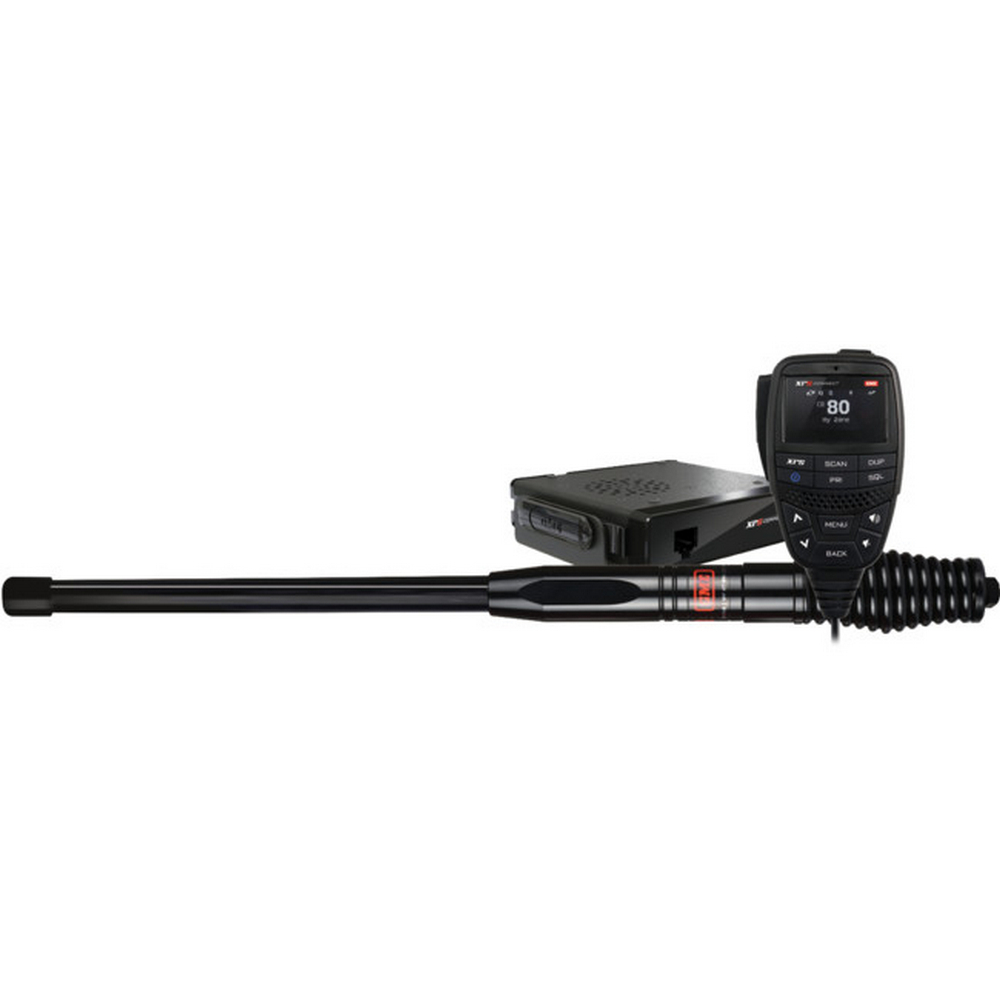

The XRS Connect 4WD Pack pairs the top-of-the-line XRS-370C Compact UHF CB Radio, with the Heavy Duty AE4704B radome antenna, the perfect solution for those users lookingfor the ultimate communications setup for their hardcore 4WD.

{tab Features}

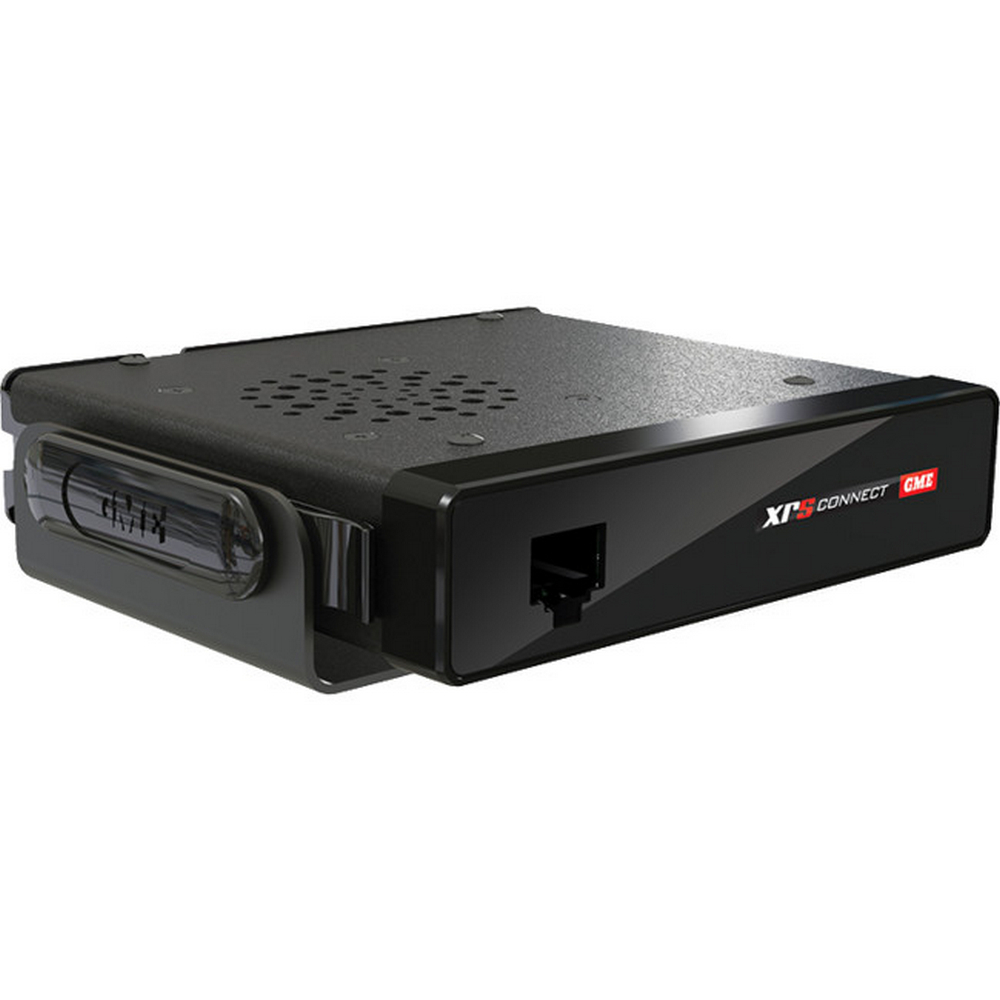

Rugged, die-cast chassis with built-in speaker
Bluetooth Wireless technology – Smartphone control

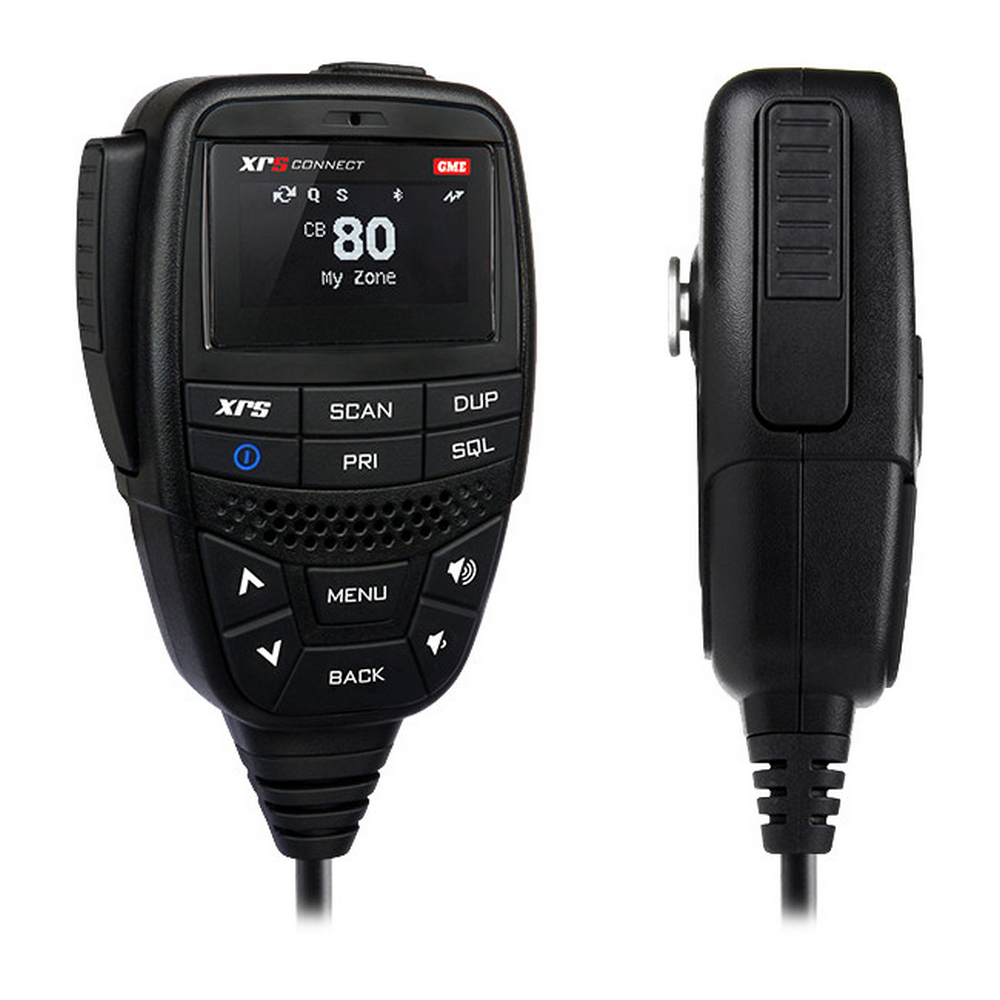

Professional grade OLED speaker microphone
Class-leading 2 watt front-facing speaker
User-customisable buttons
Includes Heavy Duty 2.1dBi radome antenna
Download the XRS Connect App on Google Play or the AppStore

{tab Specifications}

Compliant Specification

Meets AS/NZS 4365 for radio communications equipmentin the UHF citizen and personal radio service.

Frequency Range TX

476.425-477.4125 MHz

Number of Channels

Channel Spacing

12.5 kHz

Operation Mode

Simplex or half Duplex with repeater talk around.

Scanning Speed

25 ms per channel (40 channels per second)

Antenna Impedance

50 Ohms nominal

Nominal Battery Voltage

12 volts DC

Operating Voltage Range

10-16 volts DC

Battery Polarity

Negative Earth

Standard Test Voltage

13.8 volts DC

Overvoltage Protection

30 volts DC max. At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.

Reverse Voltage Protection

Diode Crowbar

Overcurrent Protection

In-line 2 amp fuse

Operating Temperature

-10°C to 60°C

Zones

8 (50 channels per zone)

Scan lists

TRANSMITTER

RF Output

5 watts

Spurious Emission

< - 70 dBc

Frequency Error

< ± 1.5 kHz

Modulation

Maximum Deviation

< ± 2.5 kHz at + 20 dB limiting

Transmit Frequency Response

+6 dB per octave 300 Hz to 3 kHz +1-3 dB

Demodulated Audio Signal to Noise

> 45 dB unweighted

Current Consumption

1.5amps with 50 Ohms termination

RECEIVER

Intermediate Frequencies

38.85 MHz, 450 kHz

Sensitivity

- 122 dBm for 12 dB SINAD unweighted

Selectivity

- 6dB at + 3.5 kHz, - 60 dB at ± 12.5 kHz

Intermodulation Immunity

-72dB

Blocking Immunity

-98dB

Spurious Response Immunity

70 dB

(XRS370C4P)

SKU	XRS370C4P
Model #	XRS370C4P
Barcode #	9319493288422
Artist / Author	Shibin SP
Shipping Weight	4.2410kg
Unit Of Measure	Each
Assembled Width	3.250m
