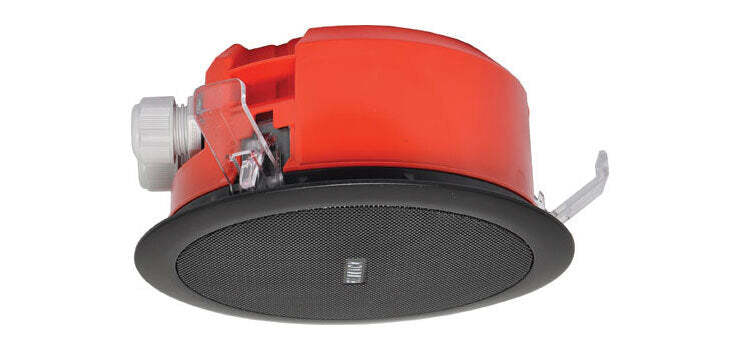

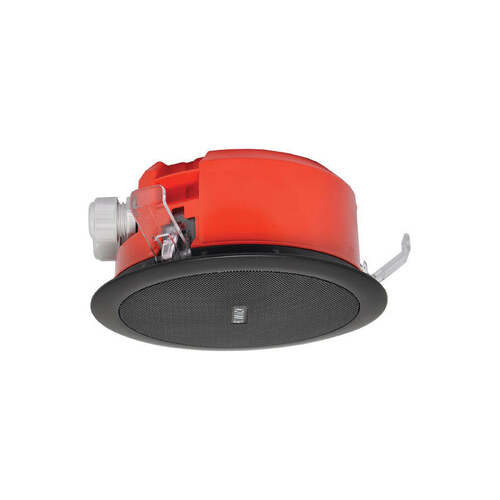

Designed to meet AS ISO7240.24:2015. Our first One-Shot speaker with a aluminium grille, this model has been designed for installations requiring a premium finish whilst still meeting the required fire standards. It can also be used for standard 100V PA/BGM installations. At only 65mm overall height, these models are ideal for low profile ceiling spaces (penetrates ceiling cavity by only 53mm - with 12mm thickness ceiling tiles). It features flame retardent housing material, sealed cable gland entries and a tuned PA driver to suit the new approval requirements.

This range of speakers have been engineered to meet the requirements of evacuation and occupant warning paging systems. The high efficiency speaker and transformer combination ensures high SPL, wide frequency response, superior speech intelligibility and reproduction for mission critical applications. All components of the fixture are manufactured from high quality, long lasting, flame retardant material and tested to the rigours of the new standard. On site installation will be simple and straight forward. Oversized cable glands and terminal blocks will make on site termination easier than other competing products. Finally the speaker will just ‘snap fit’ into the ceiling. Far easier than competitors models being offered on the market.

Features

• Designed to meet Australian Standard AS ISO7240.24
• Excellent speech intelligibility
• Stylish finish with rust free aluminium grille.
• Low profile design is only 65mm deep - penetrates ceiling by only 53mm (with 12mm thickness ceiling tile).
• Tuned PA driver designed to meet the latest fire standards
• High quality speaker driver developed for BGM, paging and emergency warning applications
• Patented 3 way latching ensures a neat, sag free installation.
• Fitted with 4 way wire protect terminal for loop in, loop out wiring.
• Fitted with flame retardent safety cover.
• Fitted with supervisory capacitor for line monitoring.
• Assembled in Australia.
• 5 year warranty.

Specifications: Electrical Power taps: 0.33, 0.66, 1.25, 2.5, 5W Impedance: 30kΩ, 15kΩ, 8kΩ, 4kΩ, 2kΩ SPL 1W @ 1m: 89dB SPL 1W @ 4m: 77dB SPL 5W @ 1m: 96dB SPL 5W @ 4m: 84dB Frequency response: 100Hz - 15kHz Coverage Angles: 1000Hz 180°, 2000Hz 160°, 4000Hz 75° Connection: 4 way terminal block + 22uF bipolar capacitor Approval: AS ISO7240.24 Environmental Type: A (for indoor applications) Mechanical Material: Black flame retardant ABS grille (ABS AF312C) Clear Flame retardant ABS spring clips (Makrolon 6557) Red flame retardant ABS transformer dome cover (Starex VH-0800) Powdercoated aluminium grille insert Driver construction: Paper cone Ceiling cutout: 140mmØ Grille diameter: 159mmØ Mounting depth: 61mm (including ceiling tile thickness) Overall weight: 650g Environmental Operating temperature: -25°C to +55°C Relative humidity: < 95%
