7" VIDEO INTERCOM SYSTEM WITH PICTURE MEMORY

Aiphone JVS-1F Video intercom system

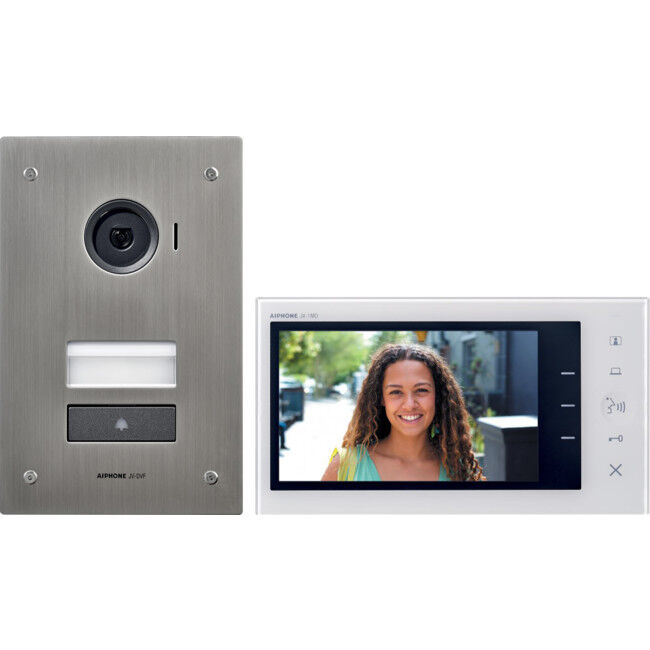

The JVS-1F Kit includes:

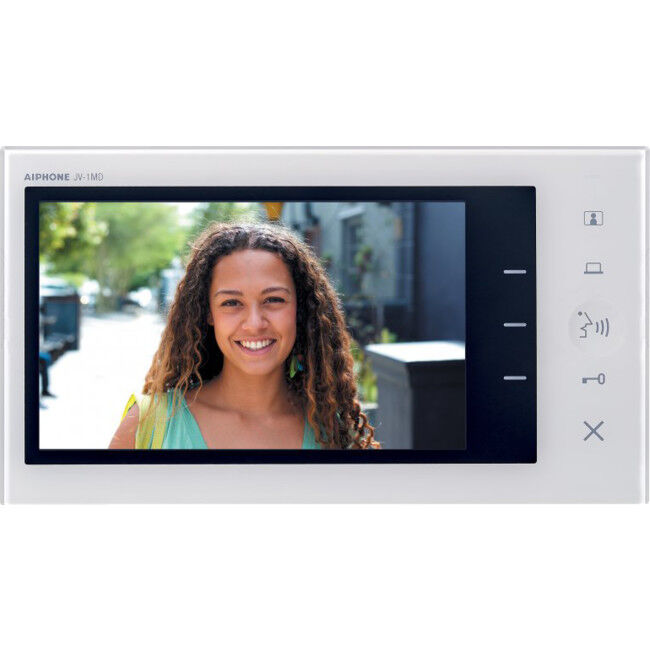

1 × JV-1MD Master Monitor Station

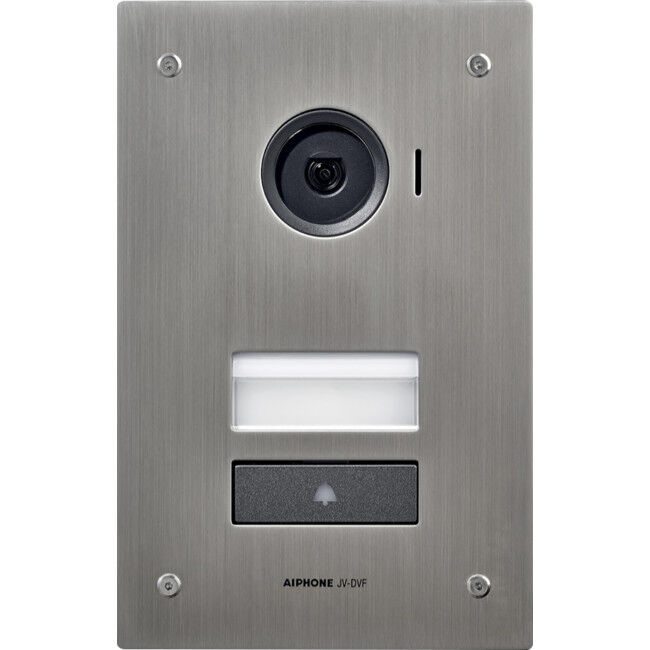

1 × JV-DVF Stainless Steel Flush Mount Door Station

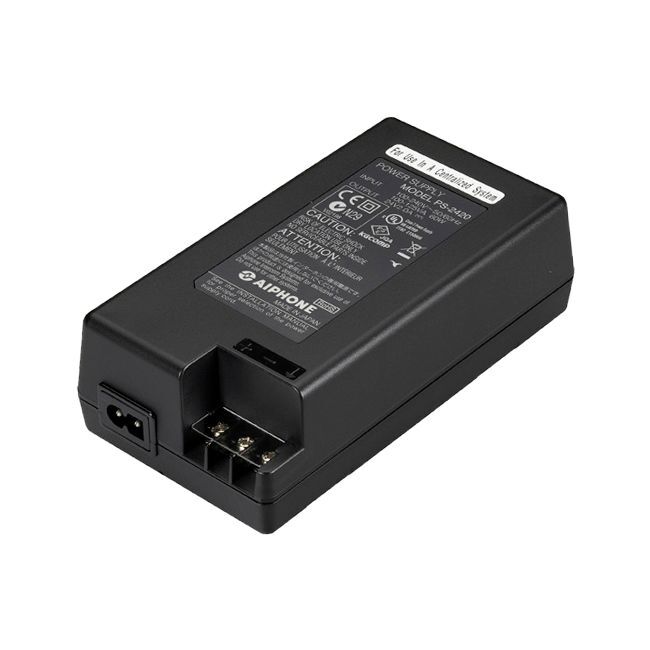

1 × 24V 2A power supply

Features

This compact video intercom set has an attractive design that complements most interiors.

The JV Series Video Intercom comes in two convenient box sets.

JVS-1V and JVS-1F simply select your door station, then add an optional expansion station for a complete 1x2 system. System comes with a power supply.

The Master station features a 7″ screen to view visitors and configure settings. The electrostatic touch buttons to the right of the screen allow users to unlock the door and activate an exterior device. There are multiple call tone options available for the station. Communication with the door station can either be hands-free or push-to-talk. Still images from past calls can be viewed and deleted from the station. The station can store up to 30 images. Wiring for the system is 2-conductor between the JV-1MD and the door station (Aiphone 871802 PE insulated 18/2 cable is recommended).

Key Features:

Video monitoring
One output to control a secondary device like a light or gate
Simple daisy chain wiring
Hands-free or push-to-talk communcation
Electrostatic touch buttons
Simple two-wire connection to the door
Store up to 30 call images
Expand the system with a JV-1FD station

With advanced functionality and refined design, enrich your space with the 7- inch Video Intercom, JV Series

Seamless Elegance for Everyday Living

Achieving a refined, noise-free, flat design by eliminating microphone or speaker slots from the front.

Illuminated nameplate

A harmonious integration of nighttime lighting and nameplate in a sleek and practical design.

Picture Memory

The Picture Memory function is employed by the Master Monitor Station. Record an image automatically by pressing the call button on the Door Station. Verification of visitors during the absence is possible.

Note: Following functions are not available:

Manual Recording
Protect to overwrite recordings
Play recordings on other devices

Door Release

The Output Signal to release door lock is selectable from three ways. Choose the appropriate one to suit the installation.

Option Output

The optional output is adopted for controlling external devices such as Light, Garage gate, and other Electrical Lock etc. The duration time is selectable.
