SPECIFICATIONS & DETAILS

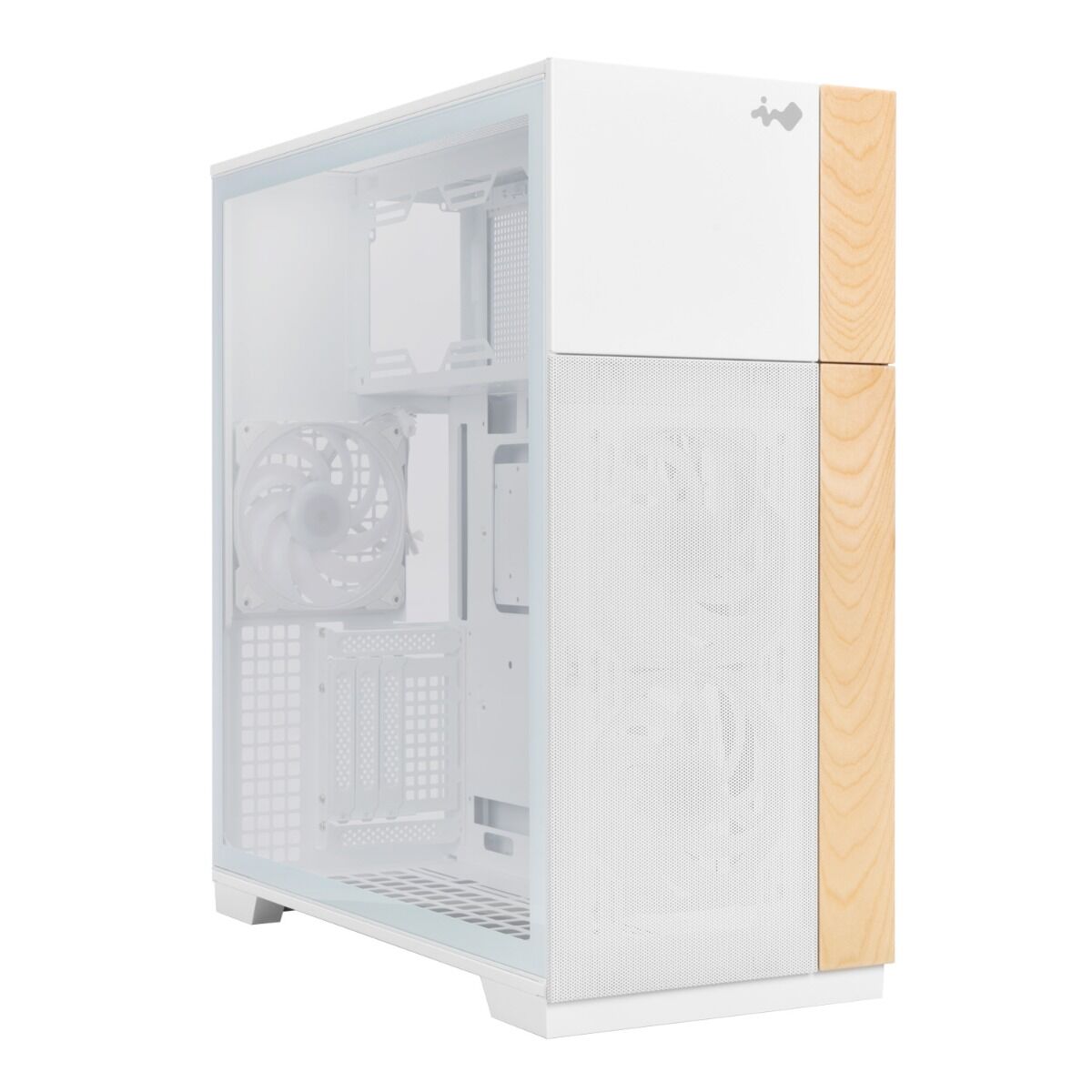

Model Name
  IW-CS-F5WHI-3AN140P
Specifications
MODEL SERIES F5 Series
Colors White
Case Type Full Tower
Materials SECC, Tempered Glass
SECC, Tempered Glass, Wood
M/B Compatibility 12" x 13" E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots 8 x PCI-E
3x Vertical PCI-E
(Riser Cable Optional; Not Included in Package)
Maximum Compatibility GPU Length: 410 - 435 mm
CPU Heatsink Height: 180 mm
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo (CTIA – SPK/Mic)
Internal Drive Bays 2 x 3.5" / 4 x 2.5"
2 x 2.5"
Thermal Solution Compatibility Air Cooling Fans:
Front: 2 x 120 / 140 mm
Top: 3 x 120 / 140 mm
Rear: 1 x 120 / 140 mm
Bottom: 3 x 120 / 140 mm
(3 InWin AN140 / AN140P Fans Included)

Water Cooling Radiator:
Front: 1 x 240 / 280 mm
Top: 1 x 360 / 420 mm
Bottom: 1 x 360 / 420 mm
Power Supply Compatibility PSII: ATX12V
- Length up to 230 mm
Product Dimensions
(L x W x H)
510 x 235 x 543 mm
20 x 9.2 x 21.3"
Package Dimensions
(L x W x H)
653 x 600 x 355 mm
25.7 x 23.6 x 13.9"
Net Weight White : 10.57 kg /23.3 lbs
Gross Weight White : 12.68 kg /27.9 lbs

(IW-CS-F5WHI-3AN140P)

SKU IW-CS-F5WHI-3AN140P
Model # IW-CS-F5WHI-3AN140P
Barcode # 4710474953264
Brand Inwin
