THOR Alpha 7 Way Outlet with Filter Surge Protection Powerboard

THOR A7 – 7 WAY SURGE PROTECTOR WITH GOOD FILTRATION

POWER PROTECTION AND FILTRATION

ALPHA 7 is the affordable way to have power protection for your most valuable electrical equipment.

The new slimline design now means you can have surge protection and filtration anywhere.

ALPHA 7 is the latest addition to the Thor Technologies product range and includes a newly developed Correction Power Filter (CPF) technology.

The CPF has been exclusively designed for the Alpha series.

The CPF is aimed at ensuring the power factor is at its maximum efficiency.

This benefit means dirty power is not robbing your audio visual, Hi-Fi and computer equipment of its performance.

The effects of unwanted dirty power or interference is reduced or eliminated.

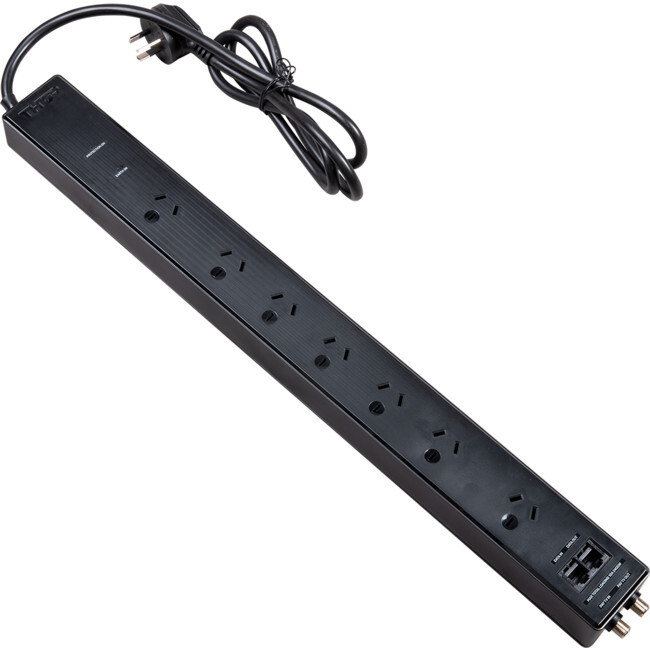

7 protected Australian plug outlets
2 Extra wide plug for large plug pack
Unique slimline brushed finish black flame retardant housing
1.2m cable length
3 year 100K connected equipment warranty

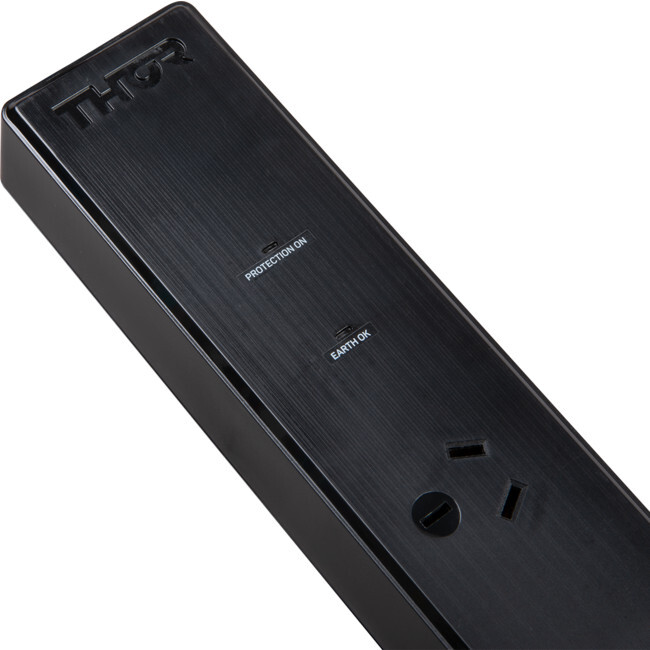

Earth detection LED
Power LED
Flame proof MOVs
Resettable safety 10 amp circuit breaker

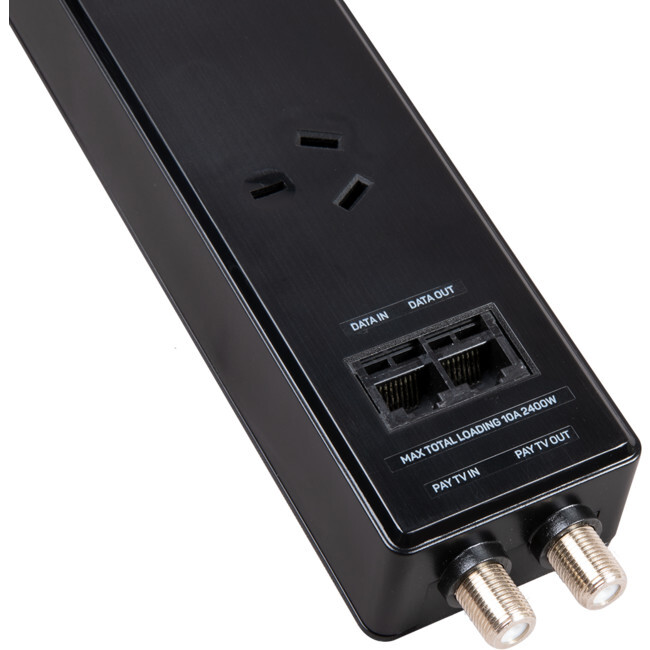

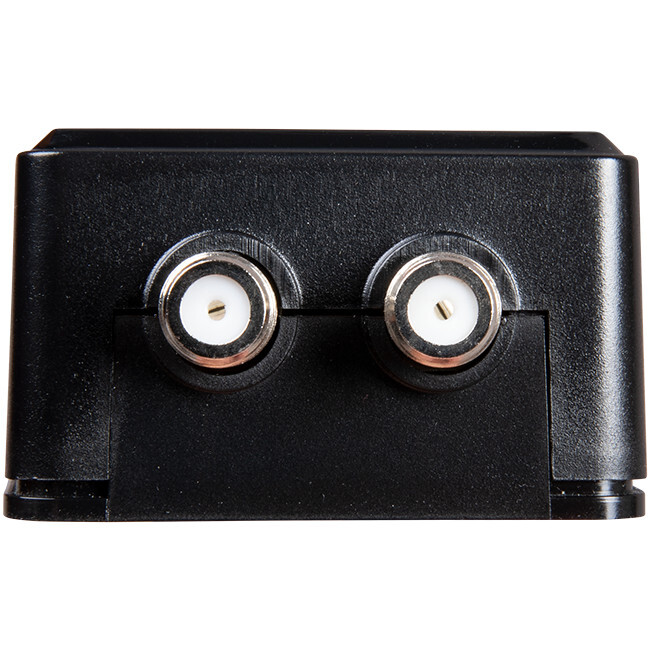

F Type connection: 1 In/1 Out
Data voice protection NBN compatible
F Type adaptors
- 1 x F-Type male to Co-Ax (PAL) male
- 1 x F-Type male to Co-Ax (PAL) female

Model	A7
Product Dimensions	520mm(L) x 32mm(H) x 55mm(W)
Supply voltage	240/VAC 50/Hz
Maximum current rating	10amps/2400 W (VA)Clamping/Let Through Voltage 510VAC
Reaction time	less than 1 nanosecond
Maximum energy dissipation	2115 Joules (equivalent to 705 Joules using UL1449 standard)
Protection modes	(all 7 outlets protects on all 3 conductors): Active/ Neutral, Active/Earth, Neutral/Earth
EMI/RFI noise reduction	filter type
Total number of protected AC outlets	7
Pay TV ‘F’ type connection	1 in and 1 out
Earth potential rise protection
Earth leakage range	less than 1 milli amp
Operating conditions	Indoor/AC mains
Operating temperatures	-10C/ 60C
Cable length	1.2m

1 in and 1 out

Cleaner Power	THOR filters more unwanted noise from power lines for best possible picture and sound as well as fastest streaming and other signal processing
Higher surge protection	THOR has the highest joule ratings in their classes as well as a bulletproof design for handing power spikes of any size or duration
Instant protection	Unlike designs which allow excessive power to reach plugged in products for some time THOR designs kick in and protect in less than one millionth of a second
Peace of mind	All THOR products are backed by a Connected Equipment Warranty which will pay for the cost of surge damaged product repairs or replacement in the unlikely event of failure
Safer	All THOR products use fire resistant technologies as well as overload failsafe circuits to ensure they protect lives just as much as products
