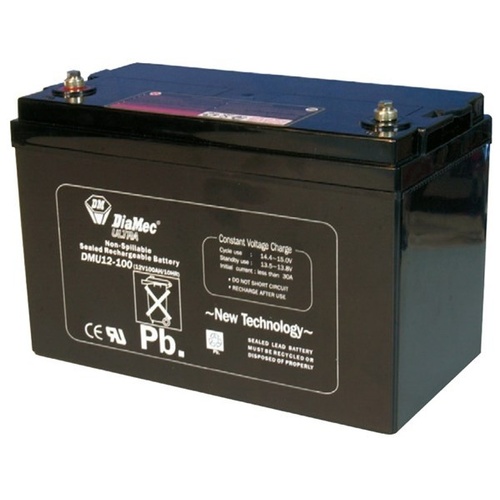

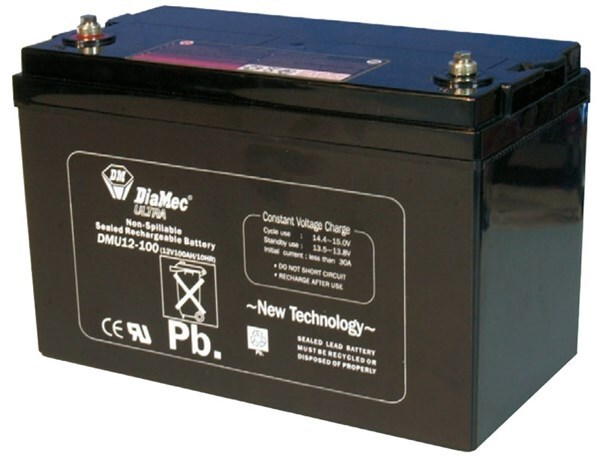

This product has an absorbent glass mat embedded in the structure of the plates. (There are 6 sets of plates, each 2.0V which makes up a “battery” of plates, i.e. 12V). The mat does two things. It reinforces the lead frame of each plate, or cell, and it stops the plates from buckling under heavy discharge current). By helping make the innards of the battery virtually solid, you can mount it in any position, but it is still preferable, of course, to mount the battery upright, even for the sake of convenience of terminal access. They are an excellent product.

Note: It is important to not discharge an AGM more than 60% between recharge.

Note: Due to excessive weight this product cannot be shipped by express or air freight and may attract a surcharge when shipped by road freight. Please contact our call centre for details.

Specifications

DC Voltage : 12.0V

Length : 260.0mm

Width : 168.0mm

Height : 211.0mm

Weight : 20.7kg

Recharging Voltage : 14.4V, 15.0V

Standard Recharge Current : 8.0A

Recharging Time : 10.0hr

Leakage Properties : 91% charge after 3 months; 82% charge after 6 months; 64% charge after 12 months

Battery Chemical Composition : Deep Cycle AGM

Battery usage : Bulk Storage

Battery Peak Current : 1125.0A

Amp Hour Rating : 75.0Ah

20 Hour Capacity : 77.0Ah

10 Hour Capacity : 75.0Ah

5 Hour Capacity : 62.0Ah

1 Hour Capacity : 46.0Ah

Connection Type : M6 Bolt/Nut

Type of battery : SLA Block
