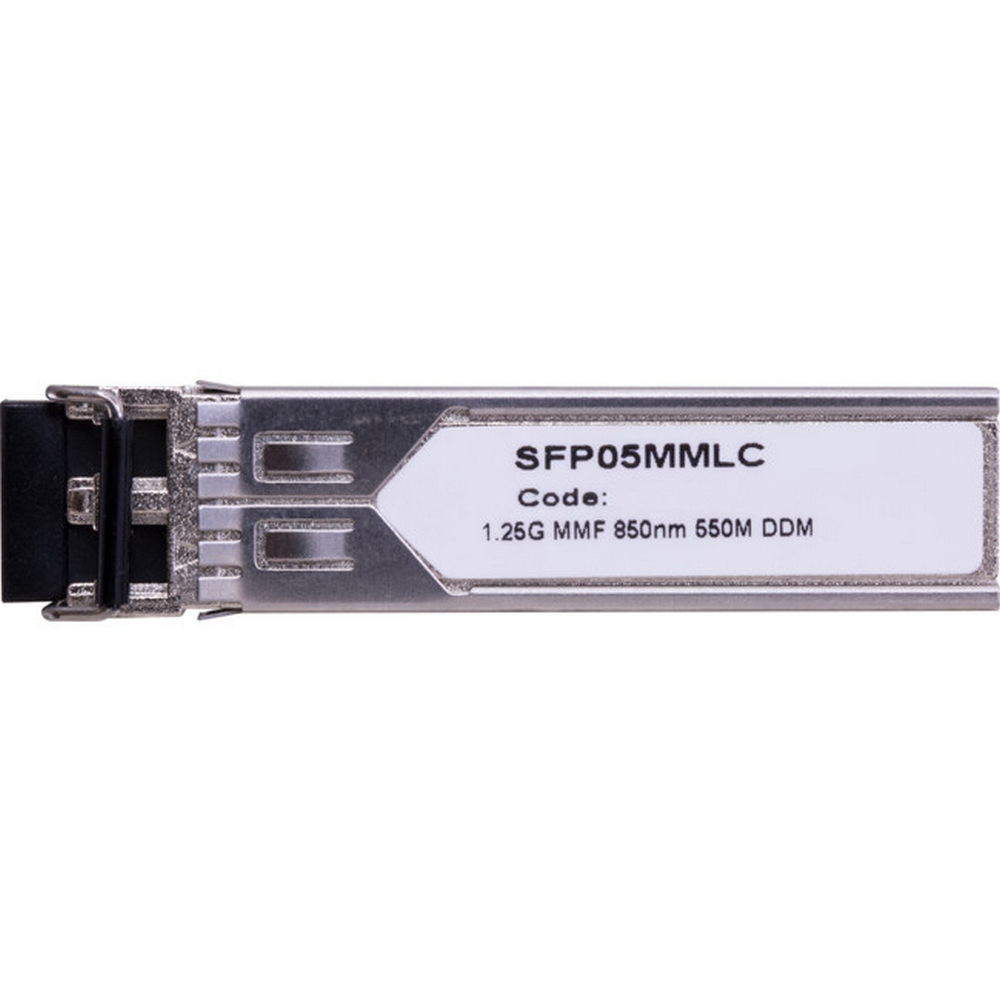

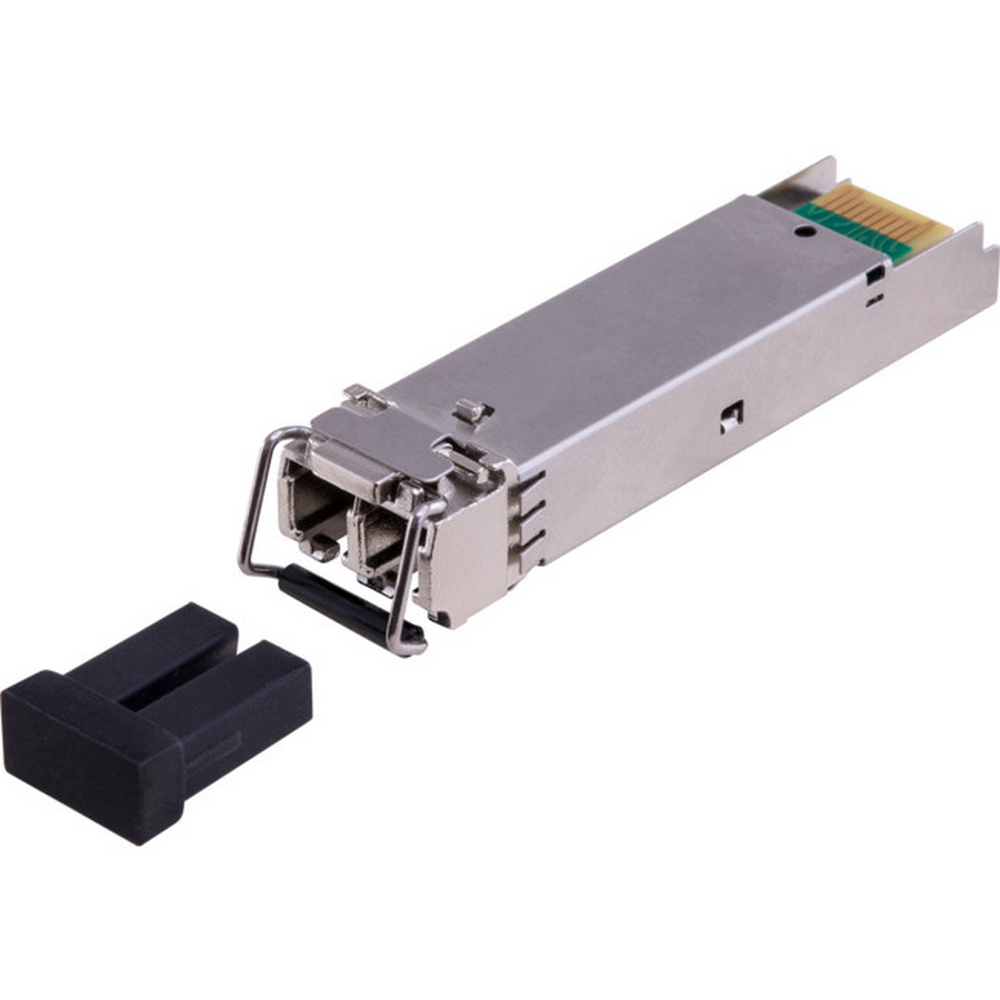

SFP Transceivers SFP05MMLC 1.25G SFP MMF LC 550M Module Dual Fibre 850nm Router

Overview

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 550m transmission distance with MMF.
The transceiver consists of three sections: a VCSEL lasertransmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Features

Up to 1.25Gbps data links

850nm VCSEL laser and PIN photodetector

Compliant with SFP MSA and SFF-8472 with Duplex LC receptacle

Digital Diagnostic Monitoring: Internal Calibration or External Calibration

500m transmission with 50/125µm MMF

300m transmission with 62.5/125µm MMF

Compatible with RoHS

+3.3V single power supply

Operating case temperature:

Applications

SDH and SONET system
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

Optical and Electrical Characteristics

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength				830	850	860	nm
SpectralWidth (RMS)						0.85	nm
Average Output Power			Pout	-9.5		-3	dBm	1
Extinction Ratio			ER	9			dB
Optical Rise/Fall Time (20%~80%)			tr/tf			0.26	ns
Data Input Swing Differential			VIN	400		1800	mV	2
Input Differential Impedance			ZIN	90	100	110	O
TX Disable	Disable			2.0		Vcc	V
TX Disable	Enable			0		0.8	V
TX Fault	Fault			2.0		Vcc	V
TX Fault	Normal			0		0.8	V
Receiver
Centre Wavelength				770		860	nm
ReceiverSensitivity						-18	dBm	3
ReceiverOverload				-3			dBm	3
LOS De-Assert			LOSD			-20	dBm
LOS Assert			LOSA	-30			dBm
LOS Hysteresis				1		4	dB
Data Output Swing Differential			Vout	700		900	mV	4
LOS			High	2.0		Vcc	V
LOS			Low			0.8	V

Notes:
1. The optical power is launched into MMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 27-1 test pattern @1250Mbps, BER =1×10-12.
4. Internally AC-coupled.

(SFP05MMLC)

12 Months
