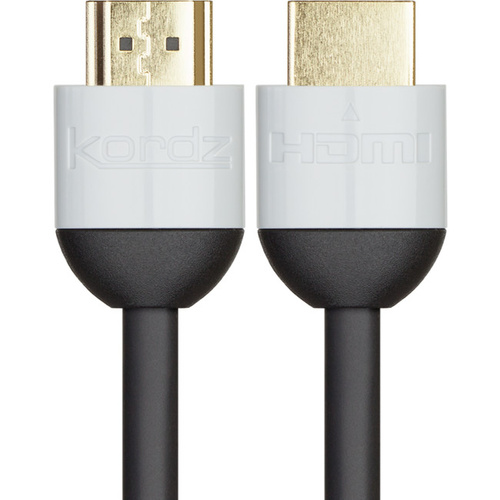

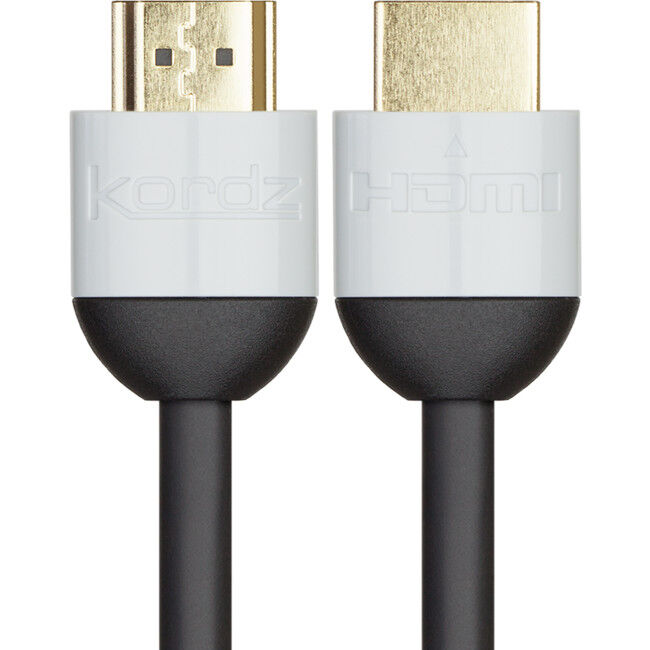

PRO Integrator HDMI® Cable Series

Kordz PRO series is a general application HDMI cable engineered for the discerning integrator.

It employs materials and construction methodologieswhich deliver a balance of economy and dependable performance without compromising the most critical elements common to all Kordz HDMI cables; the retention of digital signal integrity.

• Engineered and constructed to assure installation success and longevity,
• High Speed with Ethernet in lengths to 5m (13ft) for 2160p (4K) support,
• Standard with Ethernet with operational support to 1080p/60 up to 20m (65ft),
• Induction soldered pin transitions for benchmark inter-terminal uniformity,
• Economy ABS + PVC boot shell assembly with folded steel HDMI connector,
• 100% of units tested on the production line for electrically continuity on all pins, with 1080p/60 application test,
• UL CMG fire rated in lengths 5m+,
• Limited lifetime warranty,
• Licensed HDMI 2.0 Adopter company.

Technical Specifications

HDMI Compliance: ≤ 5.0m lengths

• HDMI CTS Certification High Speed with Ethernet
• Certified Data Rate 3.4Gbpsc, 10.2Gbps aggregate
• Supported Data Rate > 3.4Gbpsc (4K UHD)
• Supported HDMI Clock 27-340MHz

HDMI Compliance: 7.5m - 20m lengths

• HDMI CTS Certification Standard with Ethernet
• Certified Data Rate 0.7425Gbpsc, 2.25Gbps aggregate
• Supported Data Rate > 1.485Gbpsc (1080p/60)
• Supported HDMI Clock 27-148.5MHz

Construction

• Primary Conductors Solid 30-24AWG OFC, length dependent
• Insulation on TMDS HD-PE ≤1.7 relative permittivity
• Insulation on 4C + HEAC Pairs Solid polyolefin ≤ 2.0 relative permittivity
• Shielding on TMDS Pairs Al/Mylar, 25% overlap
• Shielding Overall Al/Mylar + Al braid 85% coverage
• Cable Jacket UL CMG fire rated PVC
• HDMI Connector Shell Premium gauge folded steel, 1µ" 24K Gold plated
• HDMI Connector Pins Solid OFC, 15µ" 24K Gold plated
• Termination Contactless IR induction soldering
• HDMI Backshell ABS shell assembly with PVC boot strainrelief

Mechanical

• Cable Diameter 30AWG 5.7mm/0.22" | 26AWG 8.0mm/0.31" | 24AWG 8.6mm/0.34"
• Mounting Length cable gauge dependent (see below)
• Cable Bend Radius cable gauge dependent (see below)
• Retention Force (nominal) 9.9N (1kg / 2.2lbs) +10/-5%

Physical Dimensions

Applications

• General high reliability HDMI connectivity, 1080p/60 support to 20m | 65ft,
• Residential,
• Rack & AV Cupboard,
• Corporate & Board Room,
• Education.

Application Specifications

• Video Format Support Data rate per channel / Aggregate, TMDS Bandwidth
• All lengths
• 480i/p, 576i/p ≤ 540Mbpsc/1.62Gbps, 270MHz
• 720p/60, 1080i/60 742.5Mbpsc/2.22Gbps, 371.25MHz
• 1080p/24-30, 8/10/12-bit YCbCr 4:2:0/4:2:2, 8-bit 4:4:4 742.5Mbpsc/2.22Gbps, 371.25MHz
• 1080p/50-60, 8/10/12-bit YCbCr 4:2:0/4:2:2, 8-bit 4:4:4 148.5Mbpsc/4.455Gbps, 742.5MHz
• Lengths to 5m only (High Speed)
• 1080p/50-60, 10/12/16-bit YCbCr/RGB 4:4:4 max 2.97Gbpsc/8.91Gbps, 1.485GHz
• 2160p (UHD/4K)
• 2160p/23.98/24/29.97/30, 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0 2.97Gbpsc/8.91Gbps, 1.485GHz
• 2160p/50/59.94/60, 8-bit YCbCr 4:2:0 (HDMI 2.0) 2.97Gbpsc/8.91Gbps, 1.485GHz
• HDMI 2.0 mode
• 2160p*/50/59.94/60, 8-bit 4:4:4, 10/12/16-bit 4:2:2/4:4:4 max 5.94Gbpsc/17.82Gbps, 2.97GHz

• VESA graphics Supports all as defined by HDMI specification
• 3D Video Supports all as supported and/or mandated by HDMI specification
• Color Spaces RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
• Audio Formats Support PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio
• 3D Audio (10.2 / 22.2 / 30.2ch Supported, device &video format dependent
• HDMI Ethernet Channel Supported, system dependent
• HDMI Audio Return Channel Supported, Single Mode &Common Mode

* HDMI 2.0 2160p modes encapsulate both 4,096 or 3,840 Hres variants & 4:3 anamorphic pixel ratio support
