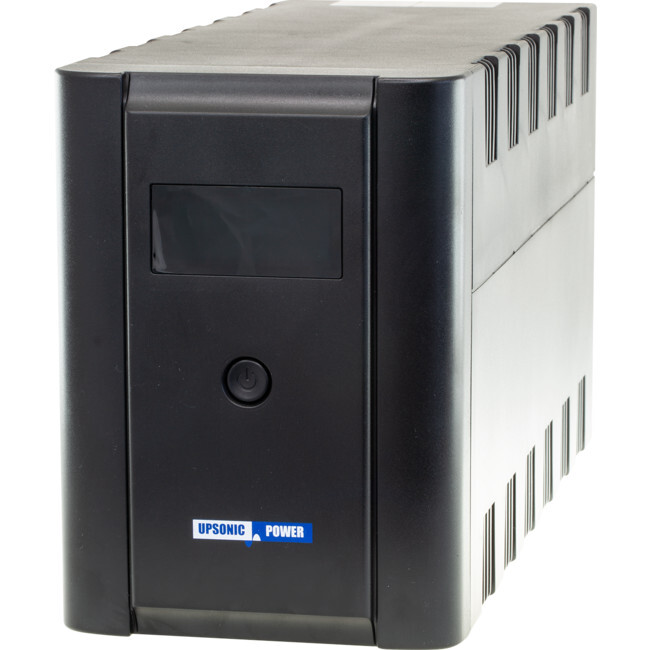

Domestic Series UPS - Upsonic

The Domestic Series UPS is a high quality,compact and affordable UPS suitable for WORKSTATIONS, SMALL BUSINESS, POS EQUIPMENT and PC’s.

This UPS features a state of the art automatic voltage regulator (AVR - Buck and Boost), which enables the UPS to maintain a secure and regulated output voltage, without utilising batteries, for mains voltages between 180VAC and 280VAC.

The Domestic Series has a voltage surge/spike suppressor and noise filter, providing continuous power protection under all operating conditions. In the event of a total power failure the Domestic Series will provide <5 mSec change over to battery back-up from the maintenance free internal batteries.

When the Domestic Series is utilised withintelligent shutdown software, it is able to provide detailed information on the status of input power quality, record power events and perform a fully automatic system save and close-down in the event of a power failure.

A RJ11/RJ45 network connection ACA approved telephone line filter is integral with the Domestic Series UPS to protect sensitive Phone, fax and modem equipment, from power disturbances entering via the phone lines.

FEATURES:

  • Microprocessor control: Guarantees high reliability and efficient operation
  • Equipped with Buck and Boost AVR: To stabilise input voltage & extend battery life
  • Built-in DC start function: Enables UPS to be started without AC power supplied
  • Smart RS-232 and USB Communication Port: With Free Software (Download available from the Internet)
  • User-Replaceable Battery Design: (1000 / 1400 / 2000VA only ) For ease of maintenance
  • Auto restart on AC recovery
  • Compact size, light weight: Saves space and money
  • Provides Modem/Phoneline Surge Protection
  • Provides Overload Protection
  • Comprehensive Warranty: 3 year warranty (2 years on battery)

SPECIFICATIONS:

Model  DOMESTIC SME SERIES  DS 600  DS 800  DS 1000  DS 1400  DS 2000
CAPACITY  VA/W  600VA/360W  800VA/480W  1000VA/600W  1400VA/840W  2000VA/1080W
INPUT  Voltage  230VAC
Voltage Range  180 - 280VAC
Frequency  43 - 65Hz (Auto Sensing)
OUTPUT  Voltage (AC Mode)  230VAC +15% to -10%
Voltage Regulation (Batt Mode)  ±10%  ±5%
Frequency  50 Hz
Frequency Regulation (Batt Mode)  ±1Hz
Output Waveform  Modified Waveform
BATTERY  Battery Type  12V/7AHx1pc  12V/9AHx1pc 12V/7AHx2pcs  12V/9AHx2pcs
Recharge Time 8 Hours to 90% after complete discharge
TRANSFER TIME  Typical  <5ms
INDICATOR LCD  Indicator with Blue Back Light  The LCD will turn on when the UPS is functioning in Off Mode, Charging Mode and Fault Mode Displays In/Out Voltage (AC), Load Level, Battery Capacity and Operational Mode
AUDIBLE ALARM  Backup / Backup Mode  Sounding every 10 seconds
Battery Low  Sounding every second
Overload  Sounding every 0.5 seconds
Fault  Continuously Sounding
PROTECTION  Full Protection  Discharge, Overcharge and Overload protection
PHYSICAL  Dimension (DxWxH) (mm)  330x100x140  390x145x205
WEIGHT  Nett Weight  6.0 kgs  6.5 kgs  14 kgs  15 kgs  16 kgs
ENVIRONMENT  Operating Environment  0-40° C, 0-90% Relative Humidity (non-condensing)
Noise level AC Mode  Less than 40dB
Backup Mode Less than 45dB

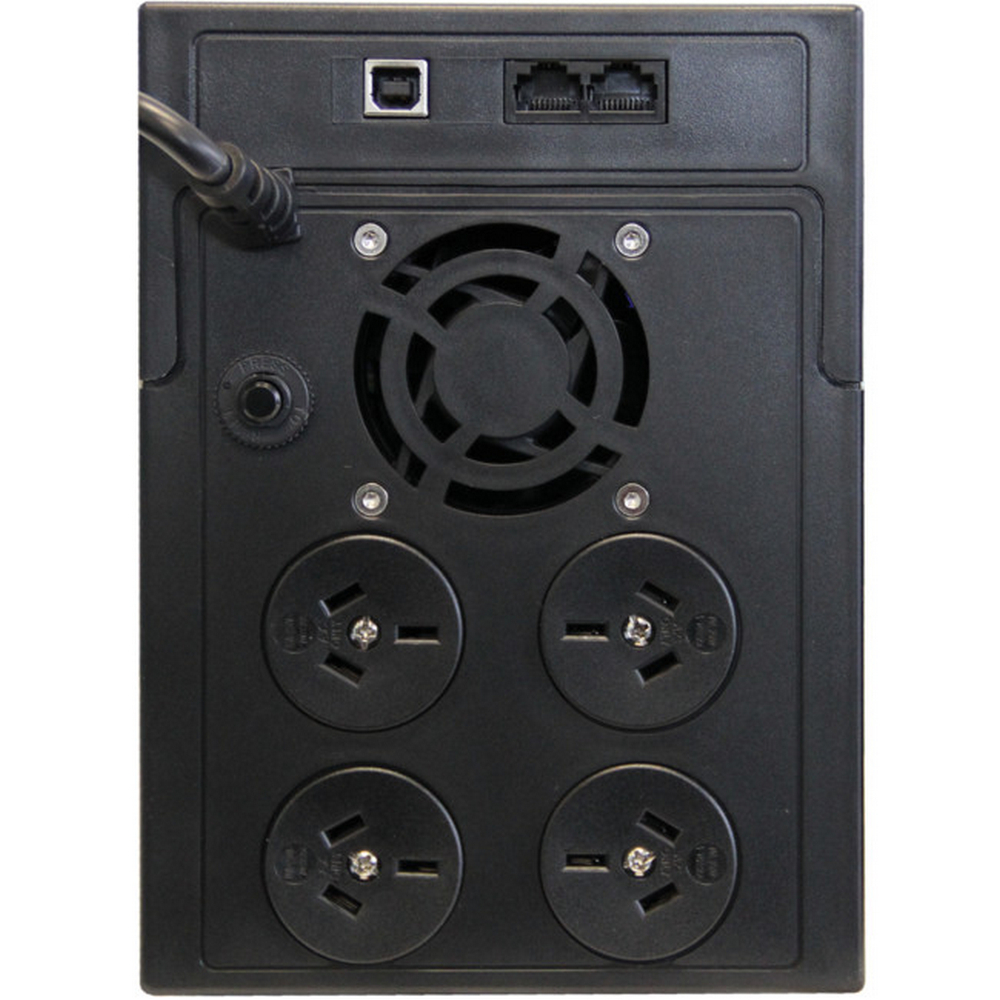

INTERFACE  Smart RS-232 / USB RJ11  Phone/Modem RJ45  Phone/Modem/Network
SOFTWARE  Download from Internet  Free BSD/Linux/Mac/Windows 95-2008/Vista/Unix

APPROX RUN TIMES: (IN MINUTES)

Load (W)  POS PC Small Server iMac Mac Pro
PrOffice 20 16 8 10 -
DS 600 19 14 7 8 -
DS 800 24 20 9 10 8
DS 1000 52 35 20 30 14
DS 1400 58 39 24 35 18
DS 2000 62 44 25 37 20

(DSV1000)

12 Months

SKU DSV1000
Model # DSV-1000
Barcode # 9345785002629
Brand UPSONIC
Unit Of Measure Each
Assembled Width 14.000m
