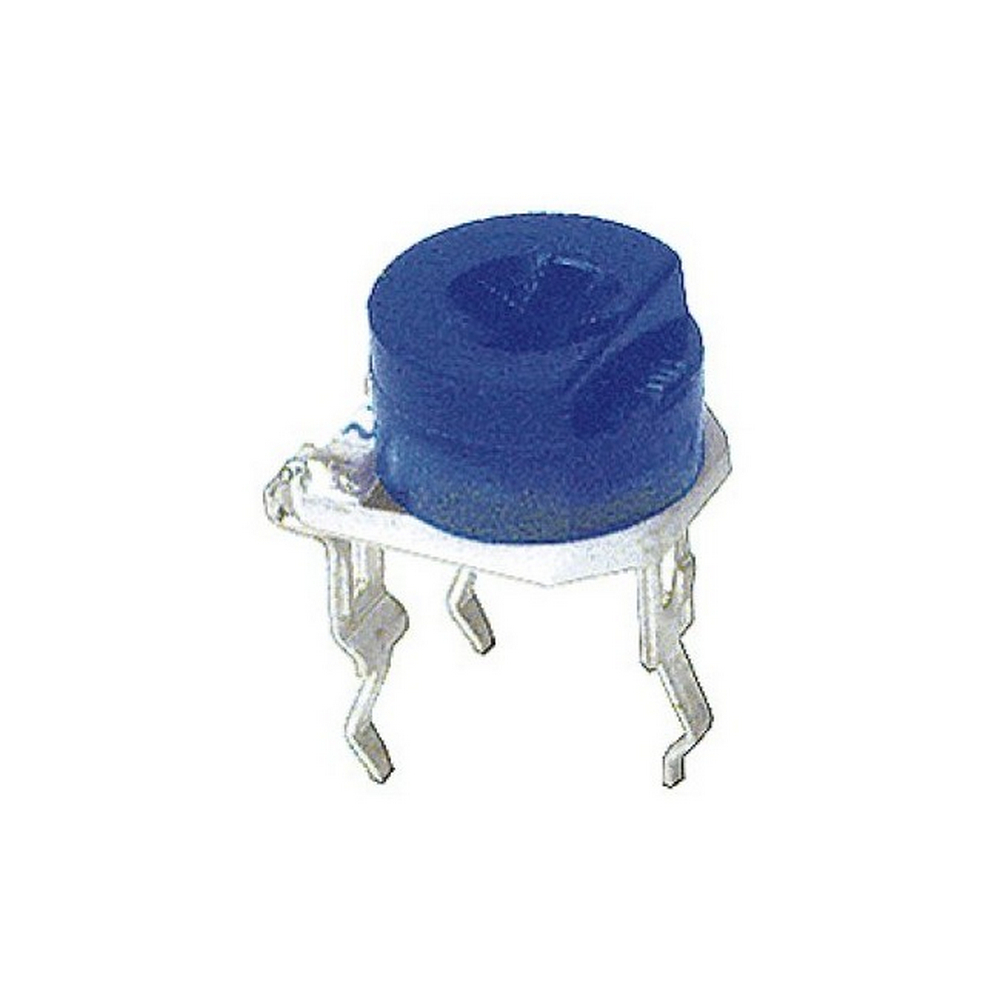

HORIZONTAL MOUNTING WITH VERTICAL ADJUSTMENT
- Sub miniature. 6.4mm Ø
- Designed to fit std .1" grid.
- Resin mold increases reliability in resistance to flux, soldering heat, terminal strength.
- Adjusted on both sides, saves space
- Suits auto insertion & adjustment(Specifications):
- Max. Working Voltage: 100V D.C.
- Resistance Law: Linear
- Resistance Tolerance: ± 20%
- Wattage Rating: 0.2Watt @ 70°C
- Working Temp. Range: - 25°C ~ + 100°C
- Temp. Coefficient: ± 250 PPM/°C
- Rotation Angle: 240° ± 10%
- Rotation Torque: 30 ~ 300 g/cm
- Residual Resistance: < 1K = 10 � max.
- Value: 100k �

(TL1-100KB)

12 Months
SKU TL1-100KB
Model # VTL100K
Brand NETECH
Unit Of Measure Each
Assembled Width 0.001m
