Fibre Media Converter 100MB Speed SM Dual Fibre SC 20km Supports LFP Function

10/ 100M Fibre Media Converter translates the signal froma twist-pair 10/100Base-TX cable to 100Base-FX fibre optic cable, extends data transmission distance from 100m via copper cables to 20km by fibre optic cable, which supports LFP (Link Fault Pass-through) function & USB Powered.

Features

10/ 100Mbps auto-sensed, easily upgrade
Full-duplex and half-duplex auto-sensed
MDI/ MDI-X Auto Negotiation
10/ 100Mbps store-and-forward
100Mbps cut-through transmission
Packet size up to 1518bytes
Supporting VLAN/ VoIP/QoS packets
Support flow control and reduce broadcast packets
Supporting STP to form a redundant network
Extremely low power consumption, low heat and stable performance
Providing Desktop, Wall-mounted, Chassis and DIN-rail installation
LFP (Link Fault Pass-through) Function

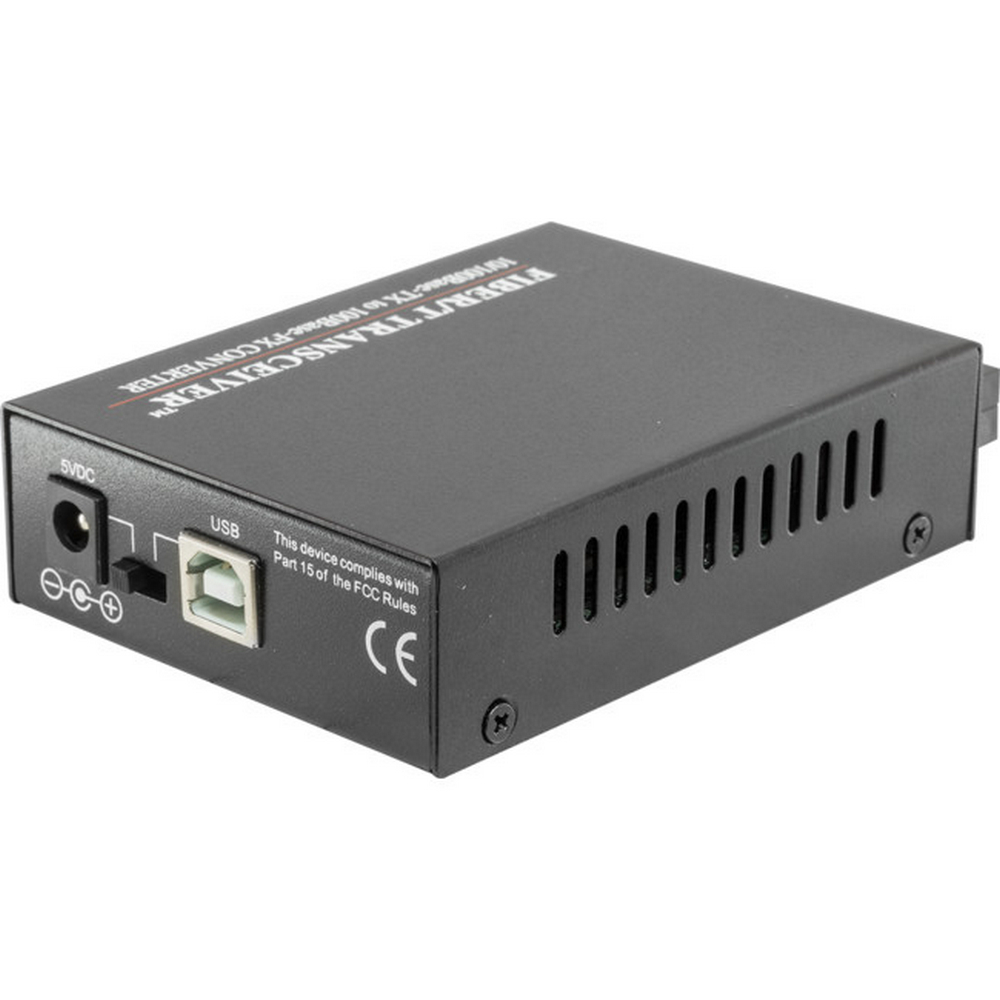

External Power Adapter or USB power source
DIP Switch to set configurations
Supporting extra-long packets up to 1600 bytes

Applications

Network Communication
FTTH/ FTTB/ FTTx
ISP Backhaul Networking

Specifications

Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/ FX Fast Ethernet
Data Rate	Copper: 10/ 100M; Fibre: 155M
Flow control	Full duplex: flow control; Half duplex: back pressure
Copper Port	No.s of Copper Port: 1 Connector: RJ45 Connector Distance:100m
Fiber Port	No.s of Fiber Port: 1 Connector: SC as default, FC/ST optional Wavelength: MMF 1310nm, SMF: 1310nm, Bi-di 1310/ 1550nm Distance: MMF 2km, SMF 20/ 40/ 80/ 100/ 120Km, Bi-di20/ 40/ 80/ 100km

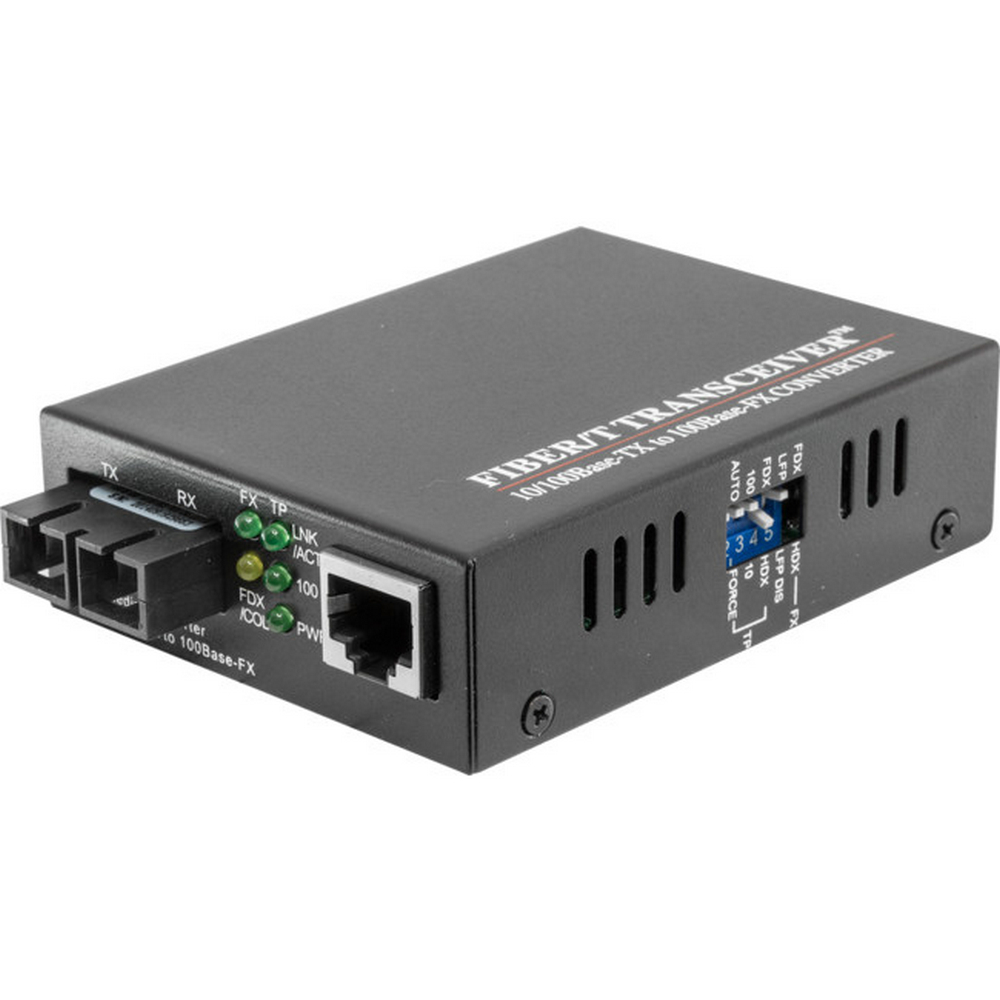

LED indicators	PWR (power supply); FL/A (optical link/action) FDX (FX full duplex), TL/A (twisted pairs link/ action) 100 (100M transmission rate of twisted pairs), FX (100M transmission rate of optical fibre)
Power supply	Working power: DC5V 1A AC Power Supply: 100V~ AC 240V to 5V 1A Or DC Power Supply: -36~-72V to 5V1A External / Internal Power Supply Optional
Power consumption	<2W
Environment	Operating temperature : -10~55°C Storage Temperature: -40~85°C Relative Humidity: 5% to 95% non-condensing
Dimensions	External: 94mmx70mmx26mm Internal: 140mmx110mmx30mm
Gross Weight	External : 0.4kg Internal: 0.5kg

FAQs

What are the DIP switches on the side used for?: Switch 1 - The default setting is (AUTO), which is maximum speed and diagnostic features (LFP)on. This is recommended for normal operation. Force is used when trouble shooting or for special applications.; Switch 2 - Allows user to select a smaller bandwidth (10mpbs or 10BASE-T).; Switch 3 - Fiber has a Send (Tx) and Receive (Rx) channel. When both are enabled, you have FDX orFull Duplex. Some add-on modules are only capable of sendingor receiving and not both. This is called half-duplex (HDX).You can override the FDX using this switch. Switch3 addresses the ethernet ports.; Switch 4 - LFPT will indicate if a fault is present. Without LFPT you may not be aware of an issue. It's suggested to leave LFPT on, but when trouble shooting, LFPT can be set to off.; Switch 5 - Half or full duplex settings for the fiber ports.

(FMC100SM20KSC)

SKU	FMC100SM20KSC
Model #	AOM-1100D-S20EA
Barcode #	9328202001764
Brand	BOURNE
Artist / Author	Shibin SP
Shipping Weight	0.3830kg
Unit Of Measure	Each
Assembled Width	0.383m
