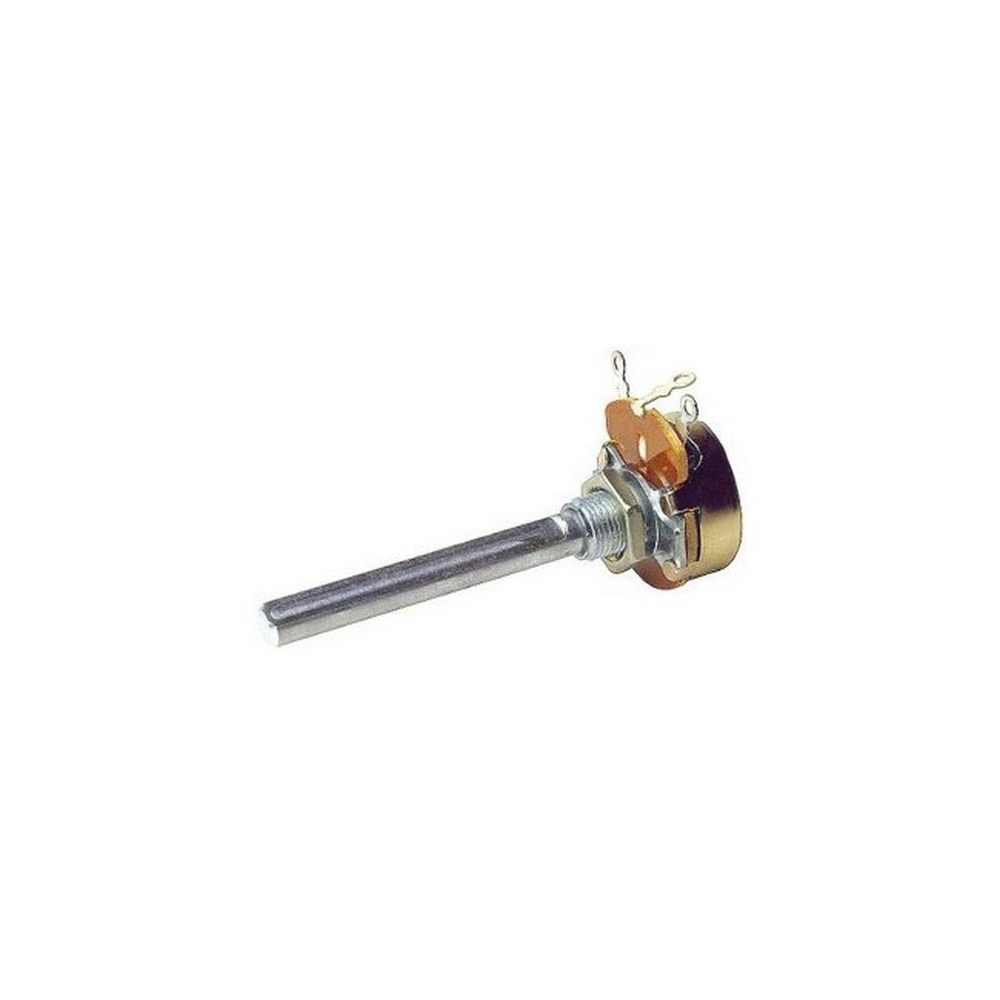

100R Ohm 3 Watt Wire Wound Pot Potentiometer
- Double contact wiper arm for reliable operation
- Chemically sealed base for very high insulation resistance
- One piece bush & plate
- High grade resistance element for long life
- 24mm Ø body supplied with pressed nut
- 6.5mm Ø aluminium shaft
- Total shaft length 69mm (Specifications):
- Resistance Law: Linear
- Resistance Tolerance: ± 10%
- Wattage Rating: 3Watt @ 25°C
- Bushing to Term. Rate: 1000V AC for 1m
- Across End-Term Rate: 500V DC
- Total Rotation: 300° ± 5°
- Effective Rotation: 280° (approx.)
- Value: 100 �
(3AW-100)
| SKU | 3AW-100 |
| Model # | R2156A |
| Barcode # | 9321758098196 |
| Brand | BOURNE |
| Artist / Author | Shibin SP |
| Shipping Weight | 0.0180kg |
| Unit Of Measure | Each |
| Assembled Width | 0.018m |
12 Months
