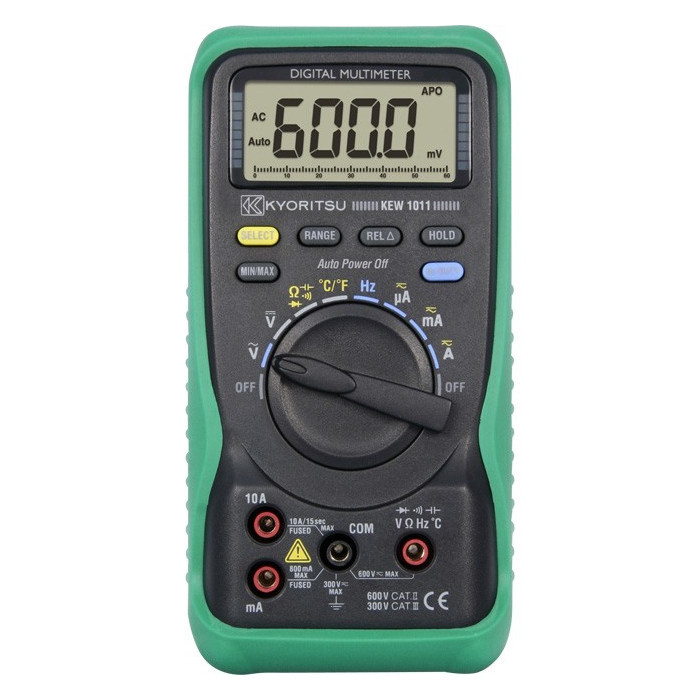

1011 Kyoritsu Compact Digital Multimeter With Temperature

High performance and wide range digital multimeter from the world class manufacturer, Kyoritsu.

  • Temperature measurement, selectable for ºC and ºF
  • 6040 counts with Bar Graph display
  • MIN/MAX function enables to record min & max value
  • REL(relative value) function to indicate the measurement variation
  • Designed to international safety standards IEC61010-1 CAT.III 300V / CAT.II 600V

Included accessories:

  • Test leads, temperature probe, batteries & manual.

FEATURES:

  • 6040 counts with Bar Graph display
  • MIN/MAX function enables to record min & max value
  • REL(relative value) function to indicate the measurement variation:
    • Saving the initial value at the start of measurement as a reference value(= zero). The difference between the later measured values andthe reference
      value is indicated on the display
  • Temperature measurement, selectable for ?C and ?F (KEW 1011)
    • supplied with K-type temperature probe (8216): -50~300 ?C (-58~572?F)
  • DUTY function
    • (It is possible to measure Pulse width / Pulse period)
  • Data Hold function, Auto Power Off function
  • Continuity with buzzer and Diode Check function
  • Capacity measurement of capacitors
  • Current ranges are protected by fuses (600V ceramic)
  • Designed to meet international safety standards: IEC61010-1 CAT.III 300V / CAT.II 600V

SPECIFICATIONS:

DC V 600.0mV/6.000/60.00/600.0/600V
(Input Impedance: 10MΩ, 100MΩ only 600mV)
t (600.0mV/6.000/60.00/600.0V)
t (600V)
AC V 6.000/60.00/600.0/600V
(Input Impedance: 10MΩ)
t (6.000/60.00/600.0V)
t (600V)
DC A 600/6000µA/60/600mA/6/10A
t (600/6000µA/60/600mA)
t (6/10A)
AC A 600/6000µA/60/600mA/6/10A
t (600/6000µA/60/600mA)
t (6/10A)
Ω 600Ω/6/60/600kΩ/6/60MΩ
t (600Ω/6/60/600kΩ/6MΩ)
t (60MΩ)
Continuity buzzer 0~600Ω (Buzzer sounds below 100Ω)
Diode Check 2.8V Release Voltage:Approx. 0.4mATest Current
Capacitance 40/400nF/4/40/400/4000µF
Frequency 10/100/1000Hz/10/100/1000kHz/10MHz
DUTY 0.1~99.9% (Pulse width/Pulse period)
t (~10kHz)
Temperature -50~300ºC (-58~572ºF)
(with the use of Temperature probe 8216)

Note: KEW 1011 can measure max. 700ºC
In order to measure over 300ºC, please use a K-type temperature probe available in the market.
Display 6040 Counts
Withstand Voltage AC 3700V / 1min.
Applicable standards IEC 61010-1 CAT.III 300V Pollutiondegree 2
IEC 61010-1 CAT.II 600V Pollution degree 2
IEC 61010-031
IEC 61326
Power Source R6P (1.5V) × 2 (Auto-power-OFF within 15 minutes)
Dimensions 161(L) × 82(W) × 50(D)mm
Weight Approx. 280g
Accessories KTL04 (Test Lead)
8216 (K-type Temperature probe)
0.8A/600V (Ceramic Fuse) × 1
10A/600V (Ceramic Fuse) × 1

(1011KY)

12 month warranty

SKU 1011KY
Model # KEW1011
Barcode # 4560187060724
Brand KYORITSU
Unit Of Measure each
Assembled Width 0.492m
