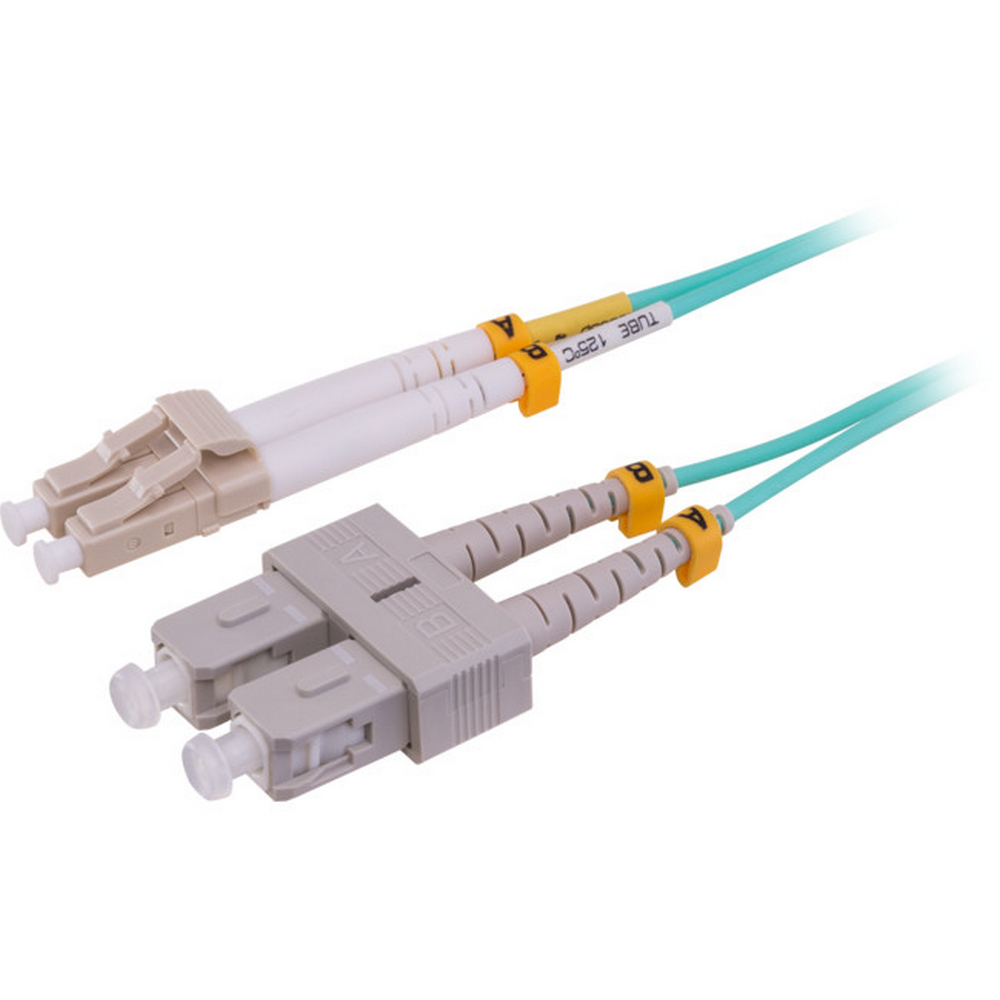

Pro2 fibre patch leads ensure the performance and reliability of servers, storage, and network switches and are built using the highest-quality fibre cable and connectors.

Product Brief
OM3 laser-optimized multi-mode fibre (LOMMF) cables support 10 Gigabit high speed network applications and offercomplete backward compatibility with existing 50/125 OM2 cabling systems.

Our OM3 50/125 fibre patch cables feature a flame retardant LSZH (Low Smoke, Zero Halogen) cable jacket to ensure minimal toxic and corrosive gas emissions in the event of a fire, making them compatible with most data centre requirements and critical area applications.

OM3 cables support 10Gb transfer speeds up to 300 metres and also support 1Gb up to 550 metres, 40Gb up to 100 metresand 100Gb up to 100 metres. Each cable is 100% optically tested and supplied with its own individual insertion loss test report for maximum performance and reliability.

Features

• Aqua 50/125 OM3 laser-optimized fibre cable with LSZH jacket

• Backward compatible with 50/125 OM2 fibre

• Supports 1Gb Ethernet up to 550 metres

• Supports 10Gb Ethernet up to 300 metres

• Supports 40Gb and 100Gb up to 100 metres

• Full support for LED & VCSEL light sources @ 850nm& 1300nm

• Bandwidth: 2000/500 MHz-km @ 850//1300 nm

• Typical insertion loss <0.2dB

• Typical return loss >35dB

• Lifetime warranty

Applications:

• Gigabit Ethernet
• Active Device Termination
• Premise Installations
• Telecommunication Networks
• Multimedia

Fibre-Connection Types

LC - The LC connector features a small form factor and resembles the SC connector.

SC - The SC connector has a molded, plastic plug casing and a push/pull locking system.

ST - The ST connector uses a push-and-turn-to-lock system.
