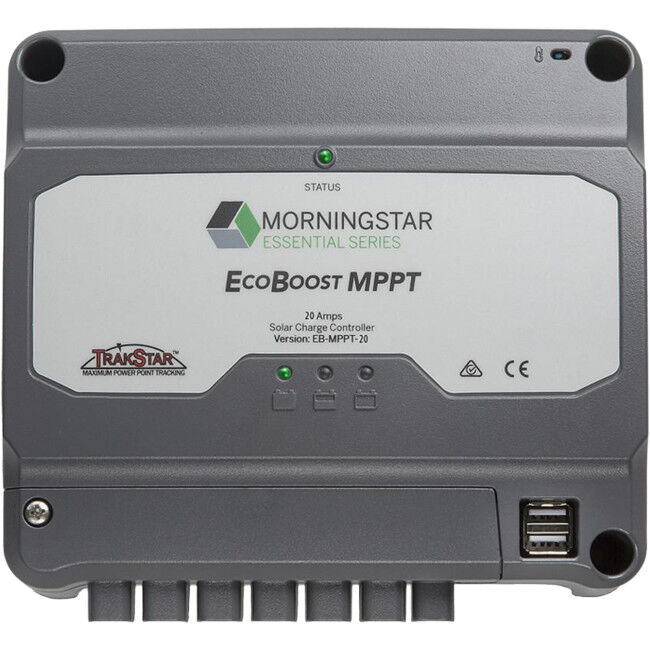

EBMPPT20 Morningstar EcoBoost MPPT Solar Regulator; 20A 12-24V / 120V

The Morningstar EcoBoost MPPT™ solar charge controller is a high-efficiency, auto-detecting 12/24V controller that uses proprietary TrakStar Technology™ to ensure batteries reach full charge while protecting them from over-discharge. Designed for PV systems up to 1,120 watts, it also functions as a smart DC load controller, enhancing system reliability. With built-in USB ports for small DC loads, it offers excellent value, performance, and dependability for off-grid solar applications.

Key Features & Benefits

Durable, Maintenance-Free Design: Includes a conformally coated circuit board and corrosion-resistant terminals.

Optimized Energy Harvesting: TrakStar MPPT technology continuously adjusts to the true maximum power point throughout the day.

High Efficiency: Maintains excellent performance across all power levels.

Optional Integrated Meter: Displays real-time and historical system data; included in all “M” models.

USB Charging Ports: Two ports with a combined 3A output for mobile device charging.

Self-Diagnostics: Monitors system health and reports errors via LEDs or optional display.

Lighting Control: Automatically switches loads at dusk and dawn using PV array input.

Load Management: Direct DC load connection with programmable disconnect to protect batteries.

Flexible PV Array Configuration: Supports two modules in series for 12V or 24V battery systems.
