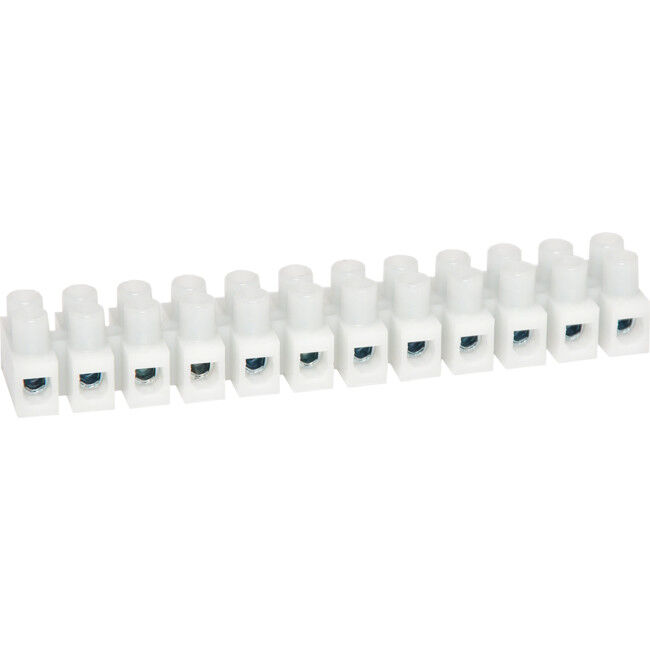

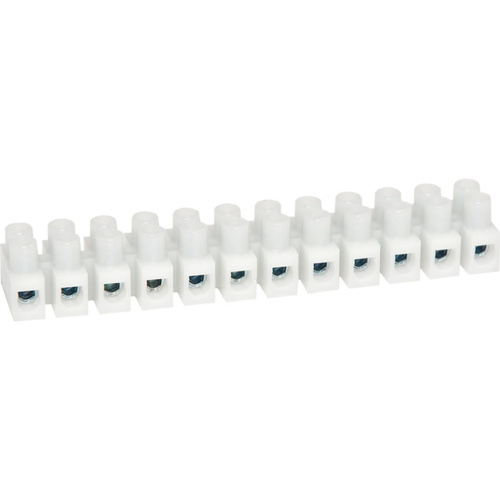

12 Way 41A 500V Terminal Block

Specifications

  • ClampingArea : 6 mm2
  • Wire Range: 22AWG - 10AWG Sol/Str
  • Screw: M3.5x7
  • Features
  • Base:1.0~2.5 mm Raised Base Type
  • Housing Material:Polyamide 66 (Nylon 66) Flame-retardant to UL 94V-2
  • Temperature Rating: -30°C to T110°C
  • Terminal Insert:Brass metal alloy, nickel plated
  • Screw:Steel, zinc plated


Dimensions:
A: 141mm
B: 24
C: 19
D: 4.2
Pitch: 12mm

(TBL4020)

SKU TBL4020
Model # TBL4020
Barcode # 9321758062272
