MP3923

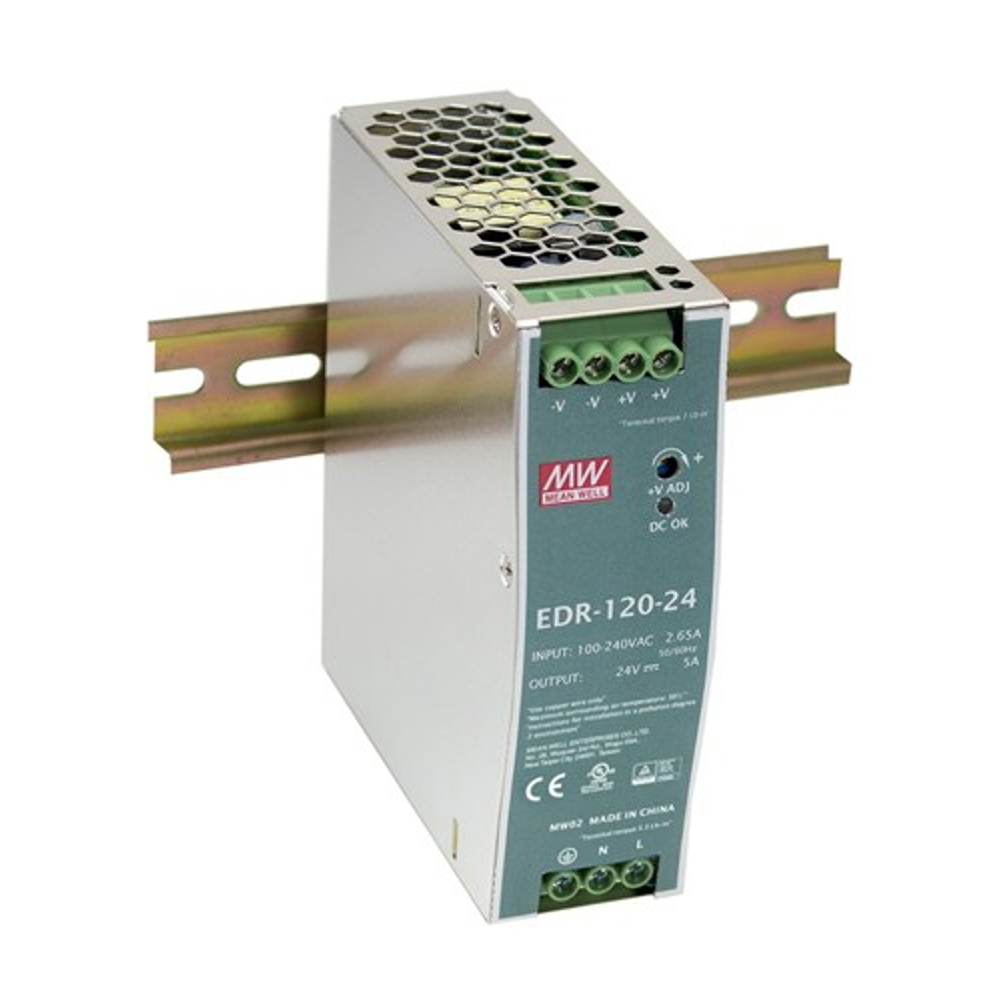

Mean Well EDR Din Rail Power Supplies are an economical and slim solution which adapt to be installed on TS-35/7.5 or 15 mounting rails. They are 40mm wide which allows plenty of space to be saved in cabinets. They are designed with metal housing that enhances the unit’s power dissipation. It is equipped with constant current mode for over-load protection fitting various inductive or capacitive applications.

Features:
• Universal AC input / Full range
• Cooling by free air convection
• Installable on DIN rail TS-35/7.5 or 15
• 100% full load burn-in test
• Low cost
• 3 year warranty

Specifications:
Model Number: EDR-120-24
Output Voltage: 24VDC
Output Current: 5A
Ripple & Noise: 120mV
Efficiency: 7.5% 88.5%
Input Voltage: 90~264VAC, 127~370VDC
Frequency Range: 47~63Hz
In Rush Current: 35A @ 230VAC
DIN Rail Compatibility: TS-35/7.5 or 15 mountable
Dimensions: 125.2(L) x 40(W) x 113.5(D)mm

(MP3923)

12 months

SKU MP3923
Model # EDR-120-24
Barcode # 9319236725726
Brand MEAN WELL
Unit Of Measure each
