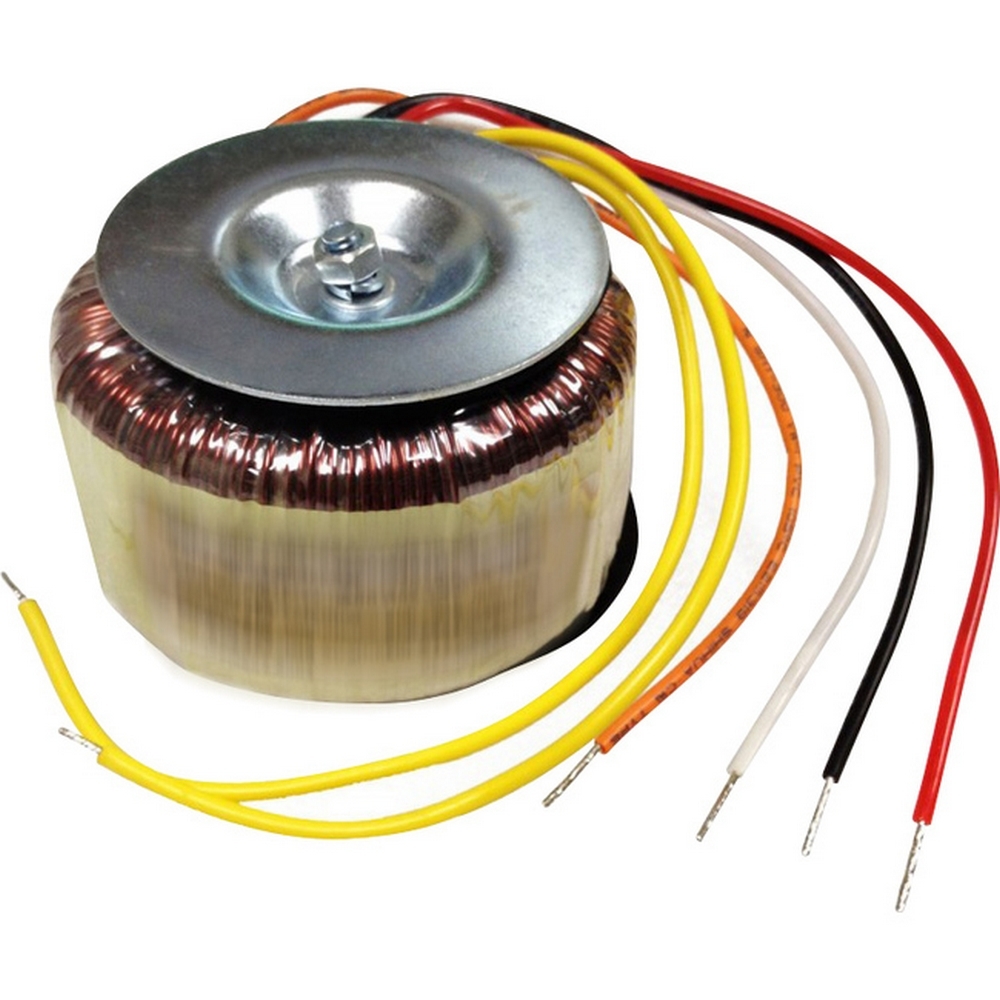

12V + 12V 300VA Toroidal Transformer

240VAC PRIMARY TOROIDAL TRANSFORMERS

High quality open style toroidal transformers with a single 230V a.c. 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.

FEATURES:

Small size and low weight compared with traditional stacked lamination types to meet modern slimline requirements.
Extremely low level of radiated magnetic field
Very low induced noise (hum) to meet requirementsdemanded of compact equipment
Very low iron loss
Higher efficiency enabling conservative ratings whilst maintaining size advantages.
Double insulated primary leads
100% electrical and flash tested
High quality manufacturing and testing in accordance to EN61558, EN60742, EN60950, EN60065, VDE0551,VDE0550 and BS415
pproved to Australian standard AS3108
Energy authority app. CS348/W.
Supplied with mounting kit - Simple quick single bolt mounting
Each transformer is supplied with 2 x Neoprene washers, 1 x steel dished washer, 1 x Mounting bolt and Nut.

Important Installation Note
Each transformer is supplied with a dished washer and protection pads for single hole fixing. Ensure that the padsare fitted above and below the transformer winding and that the dished washer is on top of the upper pad. Do not overtighten the fixing bolt (not supplied) as this could damage the winding.
Under no circumstances should both ends of the fixing bolt contact a metal chassis or frame as this would create a'shorted turn' causing irreparable damage.

SPECIFICATIONS:

NOTE:

Secondary Current A - current available when secondaries are connected in parallel

Secondary Current B - current available when secondaries a reconnected in series.

PRIMARY VOLTAGE OF ALL TOROIDAL TRANSFORMERS: 240VAC

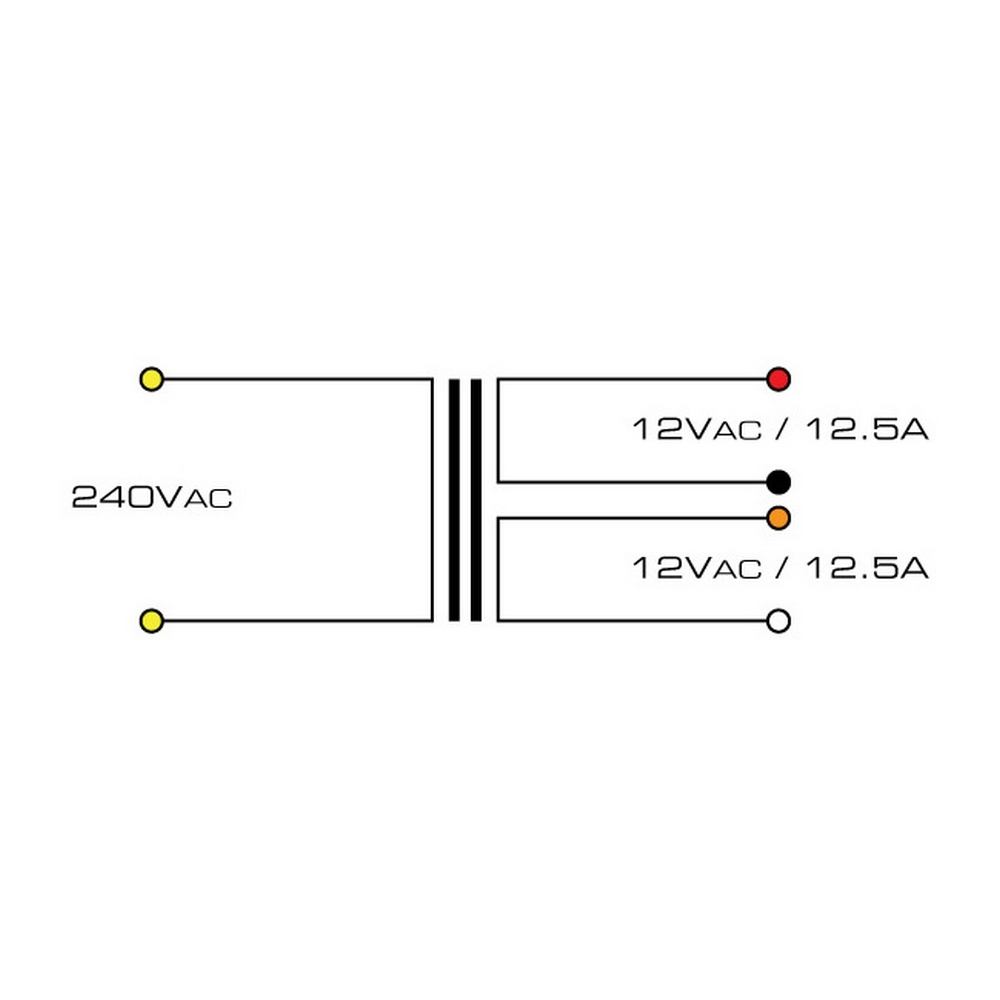

Secondary Voltage: 12 + 12
Secondary Current (A): 25A
Secondary Current (B): 12.5A
Rated VA: 300

Rated VA	Regulation % Typical	Temperature Rise [K]	Dimensions* Diameter [mm]	Height [mm]	Weight [Kg]
15	16	26	60	31	0.30
30	18	40	70	32	0.45
50	14	42	80	33	0.65
80	14	53	93	38	0.90
120	10	52	93	46	1.20
160	9	55	105	42	1.50
225	8	60	112	47	1.90
300	8	60	115	58	2.30
500	6	68	136	60	3.50
625	5	67	136	68	4.30
800	5	69	162	60	5.10
1000	5	72	162	70	6.50

* Allow extra 4mm for mounting kit, allow extra 5mm where leads emerge

Leads: PVC insulated 150mm long.

Secondary voltage tolerance: <1% at nominal input

Overall insulation category: Class A 105°C

Maximum ambient operating temperature +40°C

Neoprene pads: 5kV isolation

Meets all requirements of Class E (120°C)

(2X12V300)

12 Months
