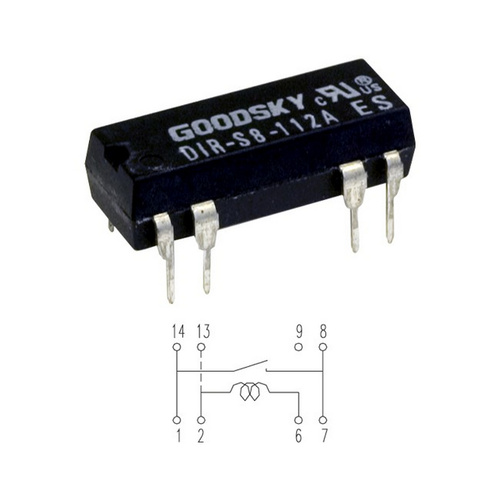

12V 1A SEALED DIL PITCH RELAY

Fully sealed construction (immersion cleanable). DIL pitch terminals. Usable in a wide range of environmental conditions .

Application : Security system, Modem and other telecommunication products.

FEATURES:

  • Epoxy molded Dual-In-Line package.
  • Low profile, mounting space compatible with DIP IC.
  • Completely washable.
  • Provide high speed, miniature and cost effective switching solution.

SPECIFICATIONS:

  • Rated Load (Resistive): 0.5A 100VAC
  • Rated Carrying Current: 0.5A
  • Max. Allowable Voltage: 100 VAC
  • Max. Allowable Current: 1A
  • Max. Allowable Power Force: 50 VA
  • Min. Switching Load: DC 1V, 1mA
  • Contact Material: Ru Alloy
  • Contact Form: SPST
  • Contact Resistance.............150 mΩ Max.@ 100mA, 6VDC
  • Operate Time......................0.5 mSec. Max.
  • Release Time......................0.5 mSec. Max.
  • Dielectric Strength:
    • Between Coil & Contact......1,000 VAC at 50/60 Hz for one minute.
    • Between Contacts...............150 VAC at 50/60 Hz for one minute.
  • Insulation Resistance:..........100 MΩ Minimum
  • Temperature Range:
    • Operating.............................-40~85 °C.
    • Storage................................-40~105 °C.
  • Humidity Range...................45~85% RH.
  • Vibration...............................20 G.
  • Shock .................................100 G.
  • Life Expectancy:
    • Electrical..............................1,000,000,000 Operations at ref. 10VDC, 10mA
  • Weight………………………..About 1.8g
  • Safety Standard & Its File Number
    • C-UL.....................................E141060.

(DIRS8112A)

12 Months
SKU DIRS8112A
Model # DIR-S-8112A
Brand GOODSKY
Unit Of Measure Each
Assembled Width 0.001m
