Overview

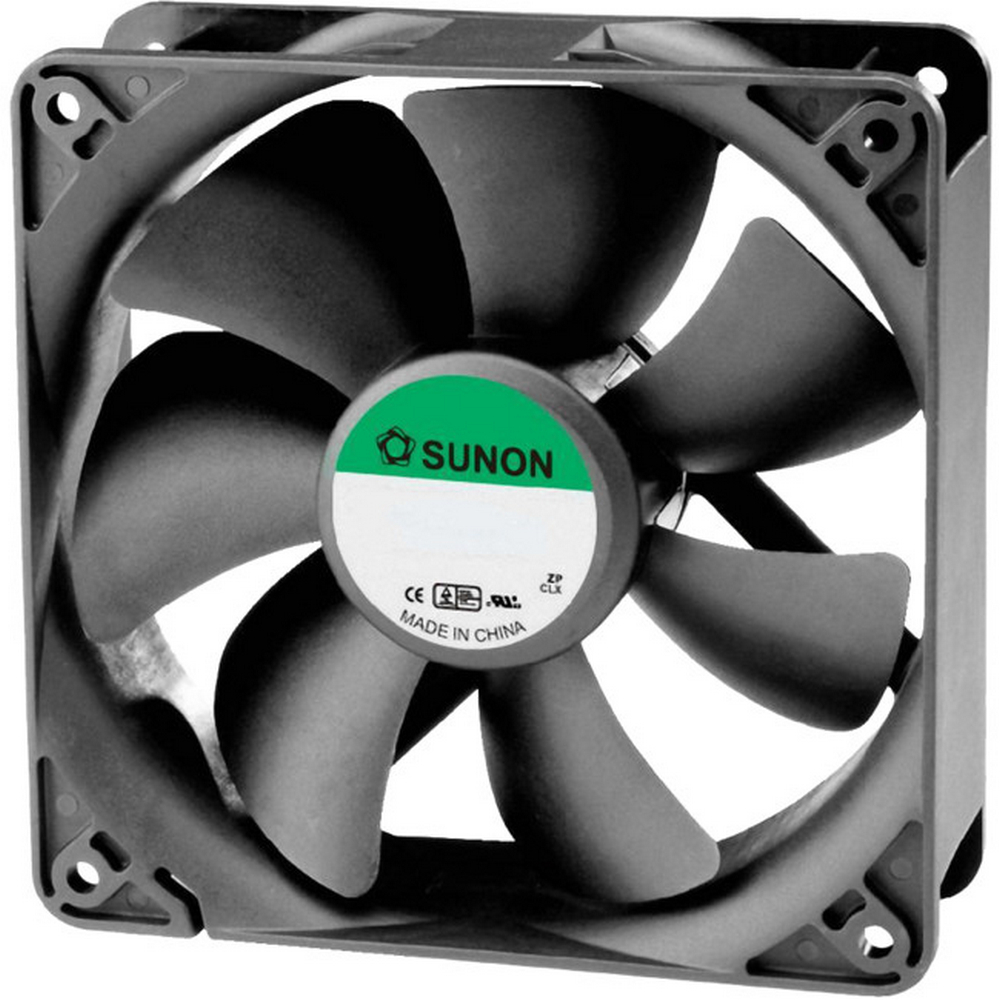

Sunon MEC0381V1-000U-A99 12V DC 120mm Maglev/Vapo Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon^® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

 Specifications

Mechanical Characteristics

• Motor Design: 2 phases, 4 poles brushless DC motor
• Bearing System: Vapo bearing system
• Frame Material: Thermoplastic PBT of UL94V-0
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Connection: Fly leads (330mm)
• Mounting Holes: 8x 4.3mm holes
• Weight: 218g
• Dimensions: 120 x 120 x 38mm

Electrical Characteristics

• Rated Voltage: 12V DC
• Rated Current: 833mA
• Rated Power Consumption: 10W
• Operating Voltage Range: 6~13.8V DC
• Starting Voltage: 6V DC (25°C Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

Performance Characteristics

• Rated Speed: 3100 RPM ±10% at rated voltage
• Air Flow: 138 CFM
• Static Pressure: 0.36 Inch-H2O
• Noise Level: 48dB(A)
• Insulation Class: UL Class A
• Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
• Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
• Life Expectancy: 60,000 hours at 40°C, 65% RH, 90% CL
• Protection: Automatic restart, polarity protection

Note: Other models are available for your specific OEM requirements, please contact us for details.



About Sunon Maglev Bearing Design
Sunon's maglev bearing system provides whisper quiet operation and superior resistance to dust and debris, extending the operational lifetime of the motor.
