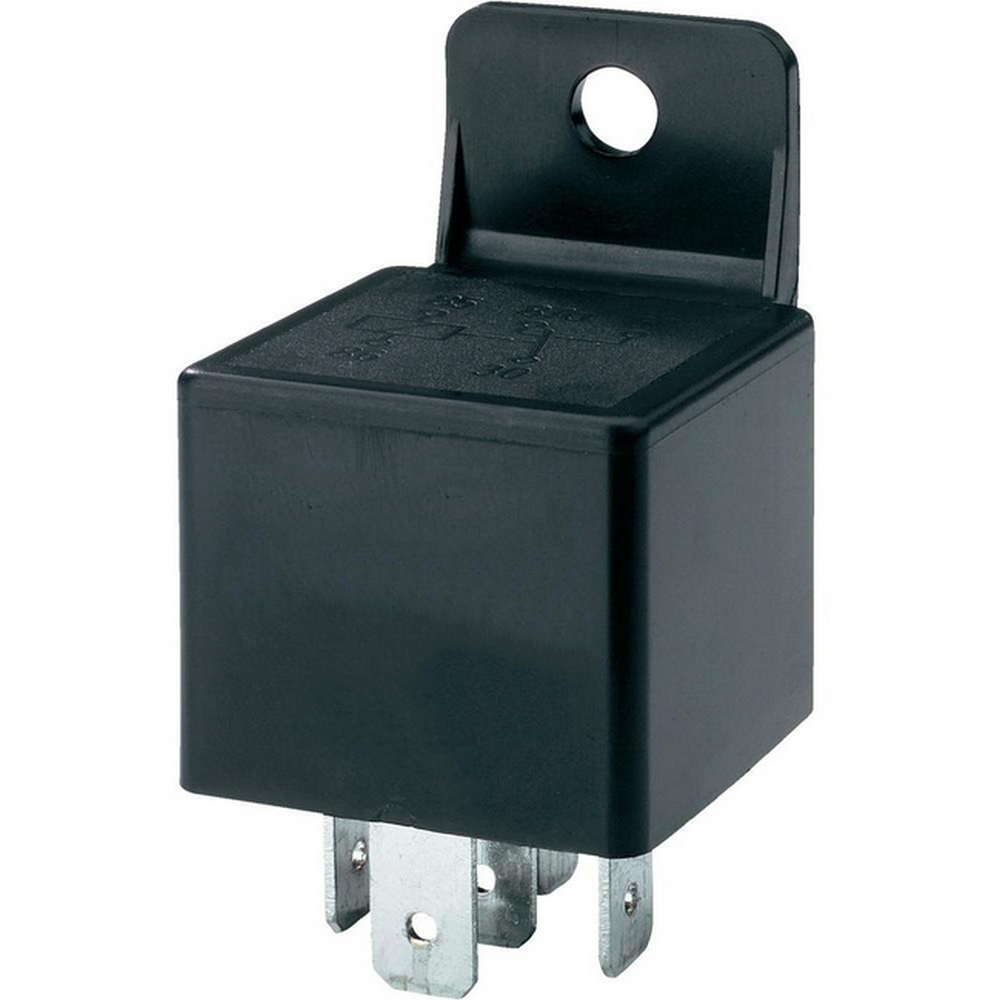

12VDC 30A AUTOMOTIVE HORN / SIREN RELAY

Used in cars for starter disable, flashing lights, powerdoor lock etc. Used in alarm units for extra sirens, external lighting.

6.3mm quick connet terminals

Size: 28 x 25 x 28mm (WHD)

Application : For direct connection with Cell Motors, Transmission etc. and Anti-Locking Brake System..

FEATURES:

• 40A switching use relay at ambient temperature of 80°C.
• Compatible fasten terminal arrangement with this kind of power relay.
• Simple magnetic circuit to meet mass production forlow cost offer.
• Standard type contact is SPDT.
• Operating ambient temperature range covers from -30°C to 80°C.

SPECIFICATIONS:

• Contact Resistance.............100 mΩ Max.@1A,6VDC
• Operate Time.......................10 mSec. Max.
• Release Time......................10 mSec. Max.
• Dielectric Strength:
  • Between Coil & Contact......1,000VAC at 50/60 Hz for one minute.
  • Between Contacts...............500VAC at 50/60 Hz for one minute.
• Insulation Resistance..........100 MegaΩ Min. at 500VDC.
• Max. On/Off Switching:
  • Electrical..............................6 Cycles per Minute.
  • Mechanical..........................300 Cycles per Minute.
• Temperature Range.............-30 - 85°C
• Humidity Range...................45- 80% RH.
• Coil Temperature Rise.........60°C Max.
• Vibration :
  • Endurance............................10 to55 Hz dual amplitude width 2 mm.
  • Error Operation....................10 to 55 Hz dual amplitude width 2 mm.
• Shock :
  • Endurance ..........................1,000 m/S2 .
  • Error Operation....................50 m/S2 .
• Life Expectancy :
  • Mechanical .........................100,000,000 Operations at No Load condition.
  • Electrical .............................1,000,000Operations at Rated Resistive Load.
• Weight..................................About 36.5 g.
• Accessories & Sockets: UC3003
