VHF & UHF Masthead Distribution Amplifier with 15dB Gain, Combined VHF/UHF input & 4G/LTE filtering

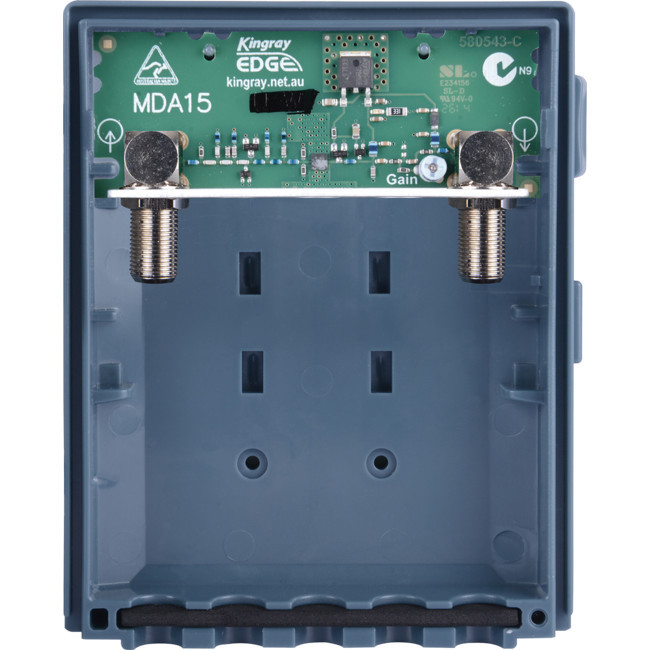

• The MDA15W is a VHF/UHF TV masthead distribution amplifier which has a single combined input for VHF/UHF antennas to amplify the frequency range of 174-694 MHz and with UHF frequencies above 694 MHz filtered, 4G/LTE transmissions are filtered out.
• Whether the unit is used as a masthead or distribution amplifier, the low noise figure, capacity for multiple channels with low distortion and a high output has proven to be effective in all installations, especially digital problem areas.
• The MDA15 range is based on a concept of convergent technology. The characteristics of the IC selected provides a very low noise figure and output figure that equals our DW32, 113dB @ -60 dB IMR, hence the name Masthead Distribution Amplifier (MDA).
• The masthead is powered remotely via a Kingray PSK06 series power supply (sold separately).

Features

• Frequency Range 174-694 MHz
• 15dB Maximum Gain
• 10dB Gain Control for UHF
• 6dB Gain Control for VHF
• 4G/LTE Filtering
• Low Noise Figure <2.5dB
• High Output Figure of 113dB IMR3 (DIN45004B)
• Weatherproof Housing
• Connectors: F-Type
• Power Consumption: 60mA
• Suitable Power Supply: PSK06 Series
