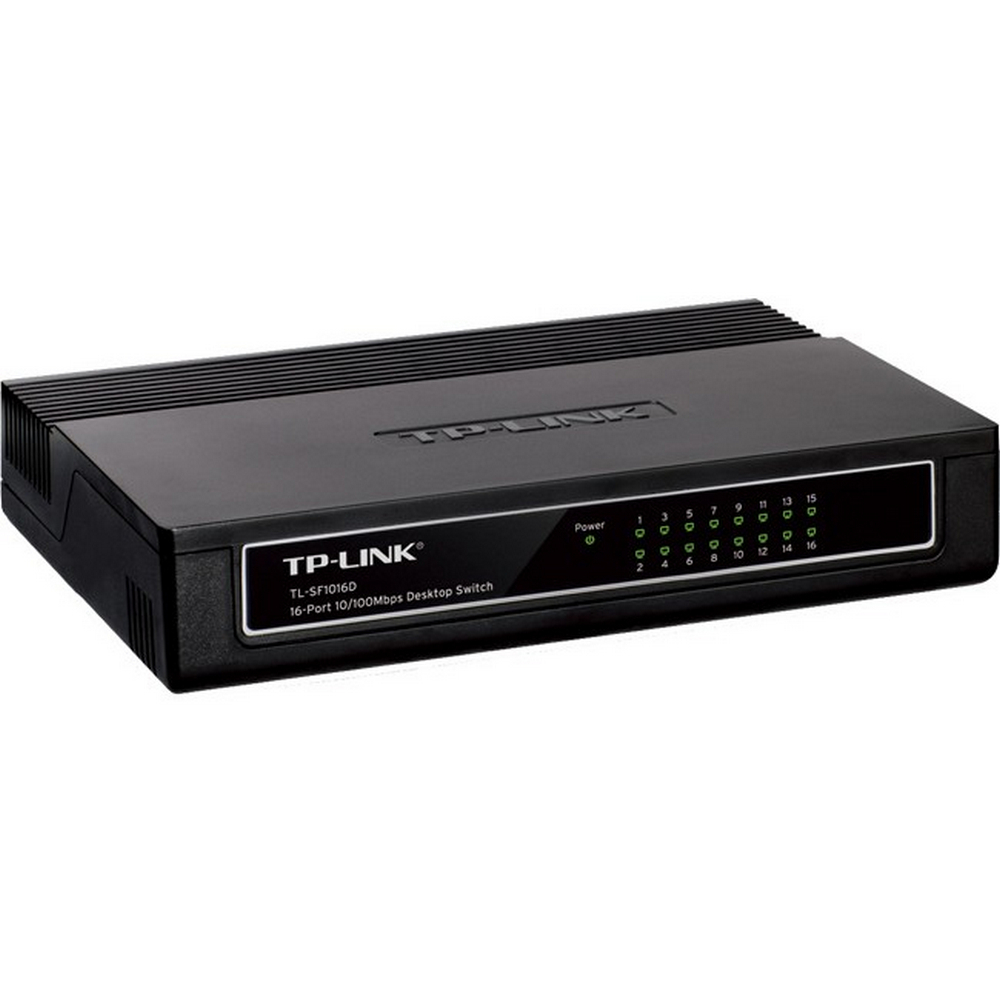

TL-SF1016D - 16-port Unmanaged 10/100M Desktop Switch - TP-LINK

TL-SF1016D 16-port 10/100Mbps Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the needfor crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.

The TP-LINK TL-SF1016D 16-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improveyour old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.

FEATURES:

  • 16-port 10/100M Fast Ethernet Desktop Switch
  • Supports MAC address self-learning and auto MDI/MDIX.
  • Supports IEEE 802.3x flow control for Full Duplex modeand backpressure for half-duplex mode
  • Supports MAC address auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity
  • Plastic case, desktop or wall-mounting design
  • External Power Adapter supply

SPECIFICATIONS:

Standards and Protocols
 IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function
 Wire-speed Performance
 MAC Address Auto-Learning andAuto-aging
 IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
 3.2Gbps
MAC Address Table
 1k
Forwarding Rate
 10BASE-T: 14880pps/port
 100BASE-TX: 148800pps/port
Transmission Method
 Store-and-Forward
Ports
 16 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
LED Indicators
 Power, Link/Act (1~16)
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 7.9*5.6*1.6 in. (200*142*40 mm)
Environment
 Operating Temperature: 0℃~40℃ (32℉~104℉)
 Storage Temperature: -40℃~70℃ (-40℉~158℉)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
Power
 External Power Adapter

(TLSF1016D)

12 Months

SKU TLSF1016D
Model # TL-SF1016D
Barcode # 6935364020293
Brand TP-LINK
Unit Of Measure Each
Assembled Width 0.678m
