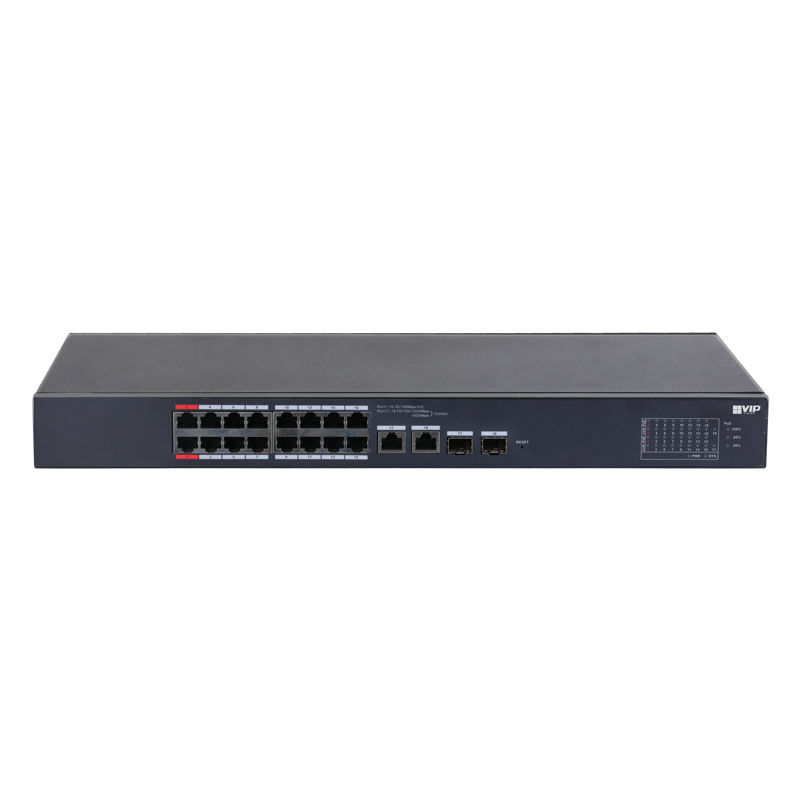

16-port Fast PoE Switch

The VSPOE-SWA16C is a rackmount and desktop mount fast Hi-PoE switch in 16 ports. This switch is ideal for providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

Features

• • PoE, PoE+ and Hi-PoE support for up to 90W per port
• • Total PoE power load up to 240W
• • Fast PoE+ device ports with 100Mbps per port
• • Extend mode takes Ethernet cable runs up to 250m
• • Rackmount tabs for cabinet installation
• • Professional appearance full metal enclosure
• • Lightning overvoltage protection up to 4kV

Specifications

Switch Specification

• Ports: 16 ports
• Speed: Fast 10/100
• Device Ports: 16 x 10/100 Base-T (PoE power supply ports)
• Uplink Ports: 2 x 1000 Base-X / 2 x 10/100/1000 Base-T
• Switching Capacity; 7.2bps
• Packet Forwarding Rate: 5.36Mbps
• Power over Ethernet
• PoE: Yes
• PoE Protocol: PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE (IEEE802.3bt)
• Switch Power Load: Port 1-2: ≤90W / Port 3-16: ≤30W / Total: ≤240W

Management

• Switch Management: N/A
• MAC Address Capacity: 8K
• Virtual LAN: N/A
• Network Time Protocol: N/A
• Spanning Tree Protocol: N/A
• Port Aggregation: N/A
• Port Mirroring: N/A
• LLDP: N/A
• DHCP: N/A
• Extend Mode: Up to 250m range at 10Mbps
• Flow Control: N/A
• Security Features: N/A
• System Maintenance: N/A
• Quality of Service: N/A
• Network Management: N/A
• PoE Management: N/A

Environmental

• Input Power: 100 ~ 240VAC
• Lightning Protection: Common Mode: 4kV / Differential Mode: 2kV
• Mounting Options: Rackmount Tabs (1RU) / Desktop Mount
• Operating Environment: -10° ~ 55°C / RH95% (max)
• Weight: 2.35kg
• Dimensions: 440 x 220 x 44mm
