TOA WS5225F01AS 636-666MHz 16Channel UHF Wireless Handheld Microphone Kit

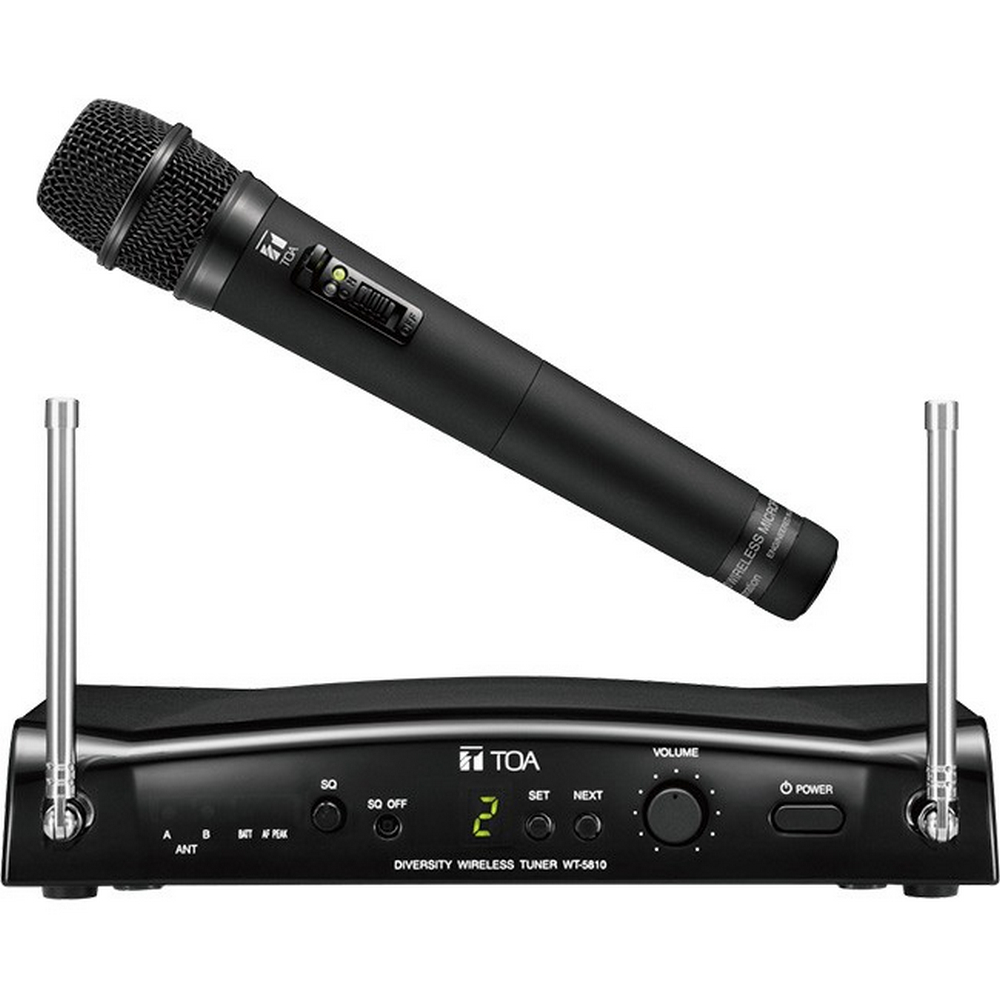

The WS-5225 includes a handheld wireless microphone WM-5225 and a diversity wireless tuner WT-5810 operating in the 636-666MHz band

The WM-5225 wireless microphone employs an electret condenser microphone capsule and is suitable for any applications.

Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available.

A high output power ensures stable radio signal transmission.

The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system.

It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

F01 band (636-666MHz)

For other regions there is also a H01 band (578-606MHz) that can be ordered in as indent item
SPECIFICATIONS:

Product Composition	Handheld wireless microphone WM-5225 x 1 Diversity wireless tuner WT-5810 x 1
Operating Temperature	-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Accessory	AC adapter x 1, Screw driver x 1 Microphone holder W3/8 (with stand adapter) x 1," Strage case x 1

Microphone Element	Electret condenser microphone unit: Unidirectional
Modulation	Frequency modulation
Channel Selectable	64 channels (the number of channels may differ from country to country)
RF Carrier Power	50 mW or less
Oscillator	PLL synthesized
Maximum Input Level	126 dB SPL
Maximum Deviation	±40 kHz
Audio Frequency Response	100 Hz - 15 kHz
Battery	WB-2000 rechargeable battery (option) or AA alkaline dry cell battery
Battery Life	Approx. 13 h (when the WB-2000 rechargeable battery is used) Approx. 10 h (when the alkaline battery is used)
Indicator	Power/Battery lamps
Antenna	Built-in type
Finish	Resin, coating
Dimensions	φ43.6 x 231.5 mm (φ1.72 × 9.11")
Weight	180 g (0.4 lb) (with battery)

Power Source	AC mains (supplied AC adapter must be used)
Power Consumption	130 mA (12 V DC)
Channel Selectable	16 channels
Receiving System	Double super-heterodyne
Diversity System	Space diversity
Mixing Output	MIC: -60 dB (1), 600 Ω, balanced, XLR-3-32 type connector LINE: -20 dB (1), 600 Ω, unbalanced, phone jack
Mixing Input	-20 dB (1), 10 kΩ, unbalanced, phone jack
Antenna	Whip antenna
Receiving Sensitivity	90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
Squelch Sensitivity	16 - 40 dBμV variable
Squelch System	Using together of noise SQ, carrier SQ and tone SQ
Indicator	ANT A/B, Audio (peak), Battery alarm, Channel number
Channel Check	Usable frequencies scanning
Signal to Noise Ratio	104 dB or more (A-weight, unbalanced output)
Harmonic Distortion	1 % or less (typical)
Frequency Response	100 Hz - 15 kHz, ±3 dB
Finish	Resin, black
Dimensions	206 (W) × 40.6 (H) × 152.7 (D) mm (8.11 × 1.6" × 6.01") (excluding antenna)
Weight	590 g (1.3 lb)
