Overview

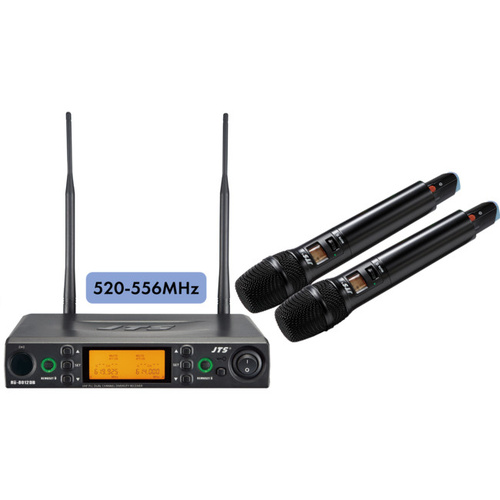

JTS 8012DBKITHHB1

520-556MHz 2 Channel Wireless Hand Held Microphone System

Includes

  • RU-8012DB receiver
  • 2 × RU-850LTH handheld transmitters

RU-8012DB

RU-8012DB Receiver

Features:

Based on US-8001 successful experience RU-8012 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum, the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.


Specifications


  • Frequency Preparation
 PLL Synthesised Control
  • Carrier Frequency Range
 520-556MHz
  • Frequency Setting
 Ultrasonic / REMOSET (Transmit)
  • Receiving Mode
 Antenna Diversity
  • Bandwidth
 36MHz
  • S/N Ratio
 > 105dB
  • THD
 <0.6% @ 1KHz
  • Sensitivity
 −95dBm, S/N> 80dB
  • Rejection Ratio
 >80 dB
  • Frequency Response
 50Hz~16KHz ±2dB
  • Antenna Type
 BNC Socket
  • Antenna Booster Power
 12~15V DC / 100mA
  • Display Contents
 Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter, RF Meter, Battery Status
  • Display
 LCD
  • Controls
 Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad
  • Audio Level Output

Ref/ ±22.5KHz De @ 1KHz Tone

ψ6.3 Phone Jack / −10dBV

LR Jack / −4dBV(Line) / −24dBV (MIC)
  • AF Output Impedance
 600Ω
  • Squelch
 Pilot tone, Noise and Mute
  • Output Connector
 2 independent balanced XLR and 2 Ø6.3mm unbalanced
  • Power Supply
 12~15V DC / 500mA
  • Dimensions (W×H×D)
 212.3mm × 38.3mm × 144mm

RU-850LTH

2 × RU-850LTH Handheld Transmitters

Features

This innovative transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

A quick Lock On key is built inside. Recharging circuit and connecter are already built in case users want to upgrade the system.


Specifications:


  • Frequency Preparation
 PLL Synthesised Control
  • Carrier Frequency Range
 520-556MHz
  • Frequency Setting
 REMOSET U (Receive)
  • RF Outputs
 Low / High
  • Stability
 < ±10KHz @ Fc
  • Frequency Deviation
 ±48KHz
  • Spurious Emissions
 < −50dBc
  • Function
 Mute, Auto Power Off, Sensitivity Adjust, Low Battery
  • Display
 LCD + LED
  • Controls
 Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
  • Battery
 UM# AA + 2

(8012DBKITHHB1)

SKU 8012DBKITHHB1
Model # 8012DBKITHHB1
