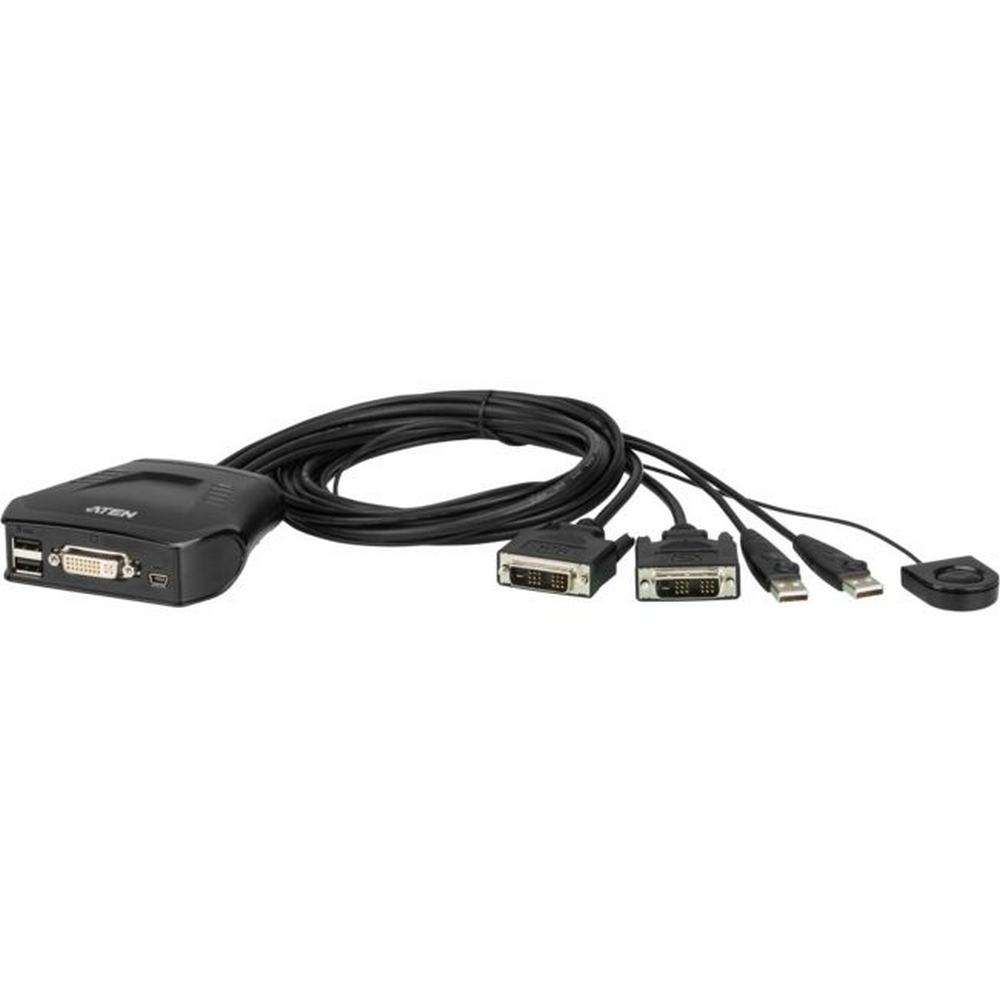

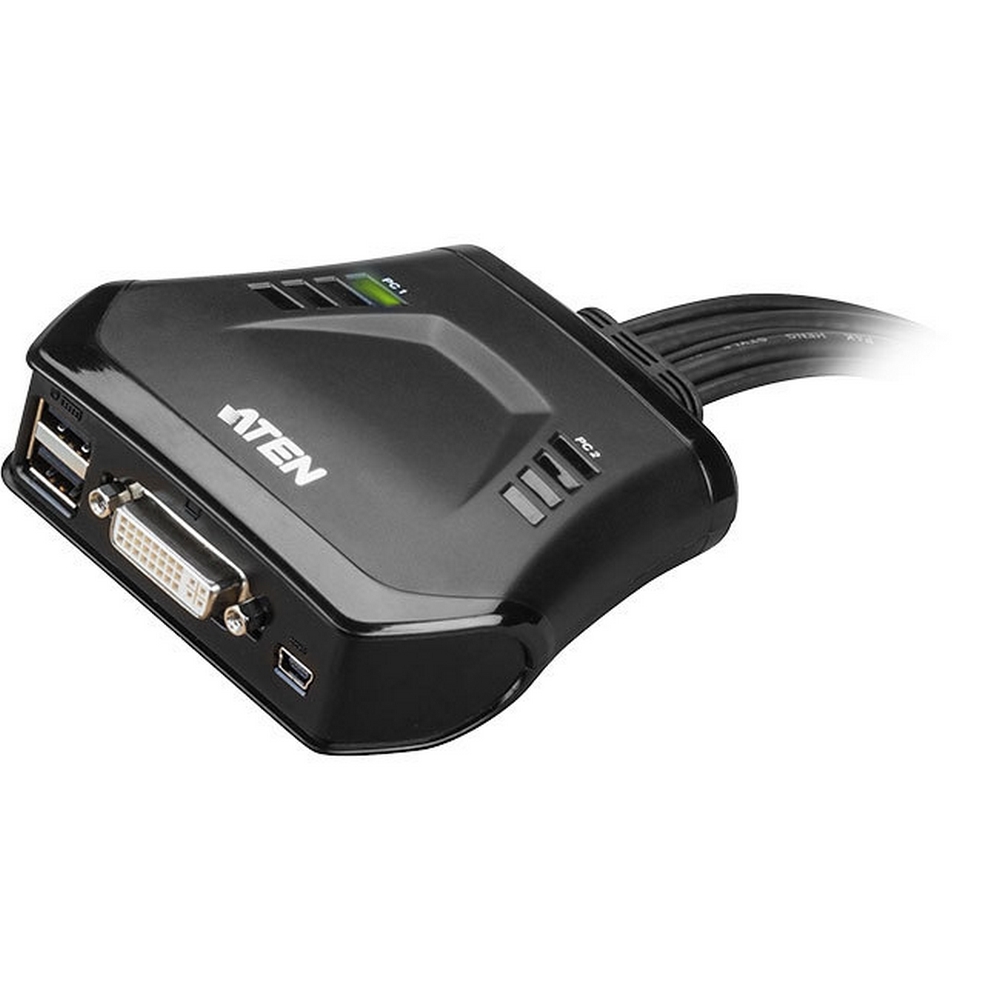

ATEN 2-Port USB DVI-D KVM Switch

The CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the CS22D, you can access the computers conveniently via a Remote Port Selector.
The CS22D´s compact all-in-one design makes it ideal for multiplatform desktop applications.

FEATURES

  • One DVI-D video console controls two DVI-D USB interface computers
  • Computer Selection via Remote Port Selector
  • OS Support: Windows 2000, Windows XP, Windows Vista, 7, Mac, Sun and Linux
  • Superior video quality- up to 1920 x 1200@60Hz
  • Supports USB hot-plugging
  • Non-powered
  • Supports USB 2.0 device

SPECIFICATIONS


Computer Connections 2
PortSelection Remote Port Selector
Connectors Console Keyboard 1 x USB Type A Female (Black)
Mouse 1 x USB Type A Female (Black)
Video 1 x DVI-I Female(Black)
Power 1 x mini USB Type B Female (Black, Optional)
Computer ports KB/MS 2 x USB Type A Male (Black)
Video 2 x DVI-D Male (Black)
LEDs Selected 2 (Green)
Resolution DVI-D: 1920 x 1200 @ 60 Hz
Power Consumption 5V, 2.5W
Environment Operation Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties Housing Plastic
Weight 0.33 kg
Dimensions ( L x W x H ) 9.95 x 9.36 x 3.01 cm



(CS22D)

12 Months

SKU CS22D
Model # CS-22D
Barcode # 4719264640315
Brand ATEN
Unit Of Measure Each
Assembled Width 0.427m
