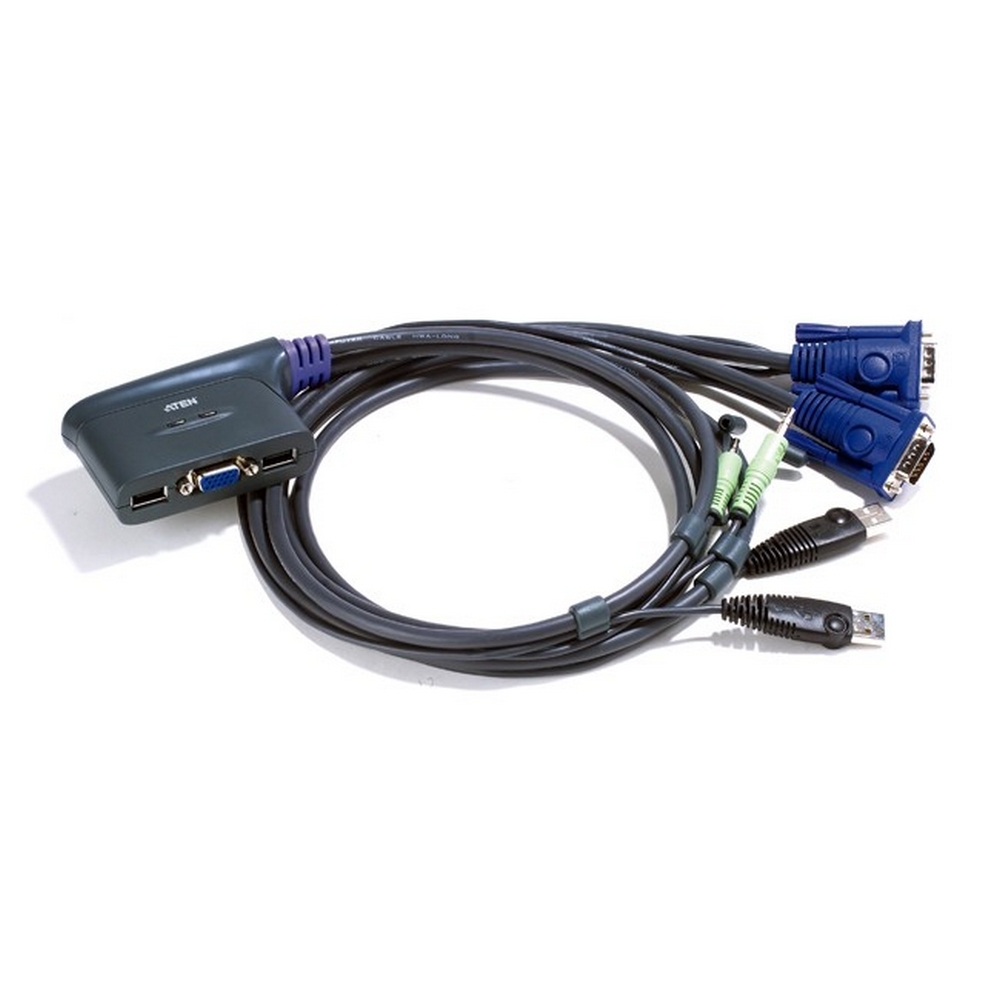

ATEN 2 Port USB KVM Switch Inc 90cm Cables Built In Controls Two USB computers
SKU: CS62US
2-Port USB KVM Switch
Our total USB solution. Link two USB computers to one USBconsole for a complete USB system compatible with all operating platforms: PC, Mac and Sun.
FEATURES:
- One USB console controls two USB computers
- Compact design, built-in 0.9m cables
- Hotkey selection for OS and keyboard language
- Multiplatform support - Windows , Linux, Mac, Sun
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- USB mouse port can be used for USB hub and USB peripheral sharing
- Supports multimedia USB keyboards and multifunction mice
- All-in-one design
- With speaker support
- Superior video quality up to 2048 x 1536; DDC2B
- Auto Scan function to monitor computer operation
- Non-powered
- ATEN USB ASIC inside
- OS Compatibility includes Windows 2000/XP/Vista, LINUX, Mac, Sun and FreeBSD
Package Content:
- 1x 2-Port USB KVM Switch with Attached Cables
- 1x User Guide
SPECIFICATIONS:
| Computer Connections | 2 | ||
| Computer Port Selection | Hotkey | ||
| Connectors | Console Ports | Keyboard | 1 x USB Type A Female (White) |
| Video | 1 x HDB-15 Female(Blue) | ||
| Mouse | 1 x USB Type A Female (White) | ||
| Speaker | 1 x Mini Stereo Jack Female (Green) | ||
| KVM Ports | Keyboard/ Mouse | 2 x USB Type A Male(Black) | |
| Video | 2 x HDB-15 Male(Blue) | ||
| Speaker | 2 x Mini Stereo Plug Male (Green) | ||
| LEDs | Selected | 2 (Green) | |
| Cable Length | Computers | 0.9m | |
| Emulation | Keyboard/Mouse | USB | |
| Video | 2048 x 1536, DDC2B | ||
| Scan Interval | 5 seconds | ||
| Environment | Operating Temp. | 0-50˚C | |
| Storage Temp. | -20˚C-60˚C | ||
| Humidity | 0~80% RH, Non-condensing | ||
| Physical Properties | Housing | Plastic | |
| Weight | 0.29kg | ||
| Dimensions( L x W x H ) | 8.10 x 6.90 x 2.60 cm | ||
