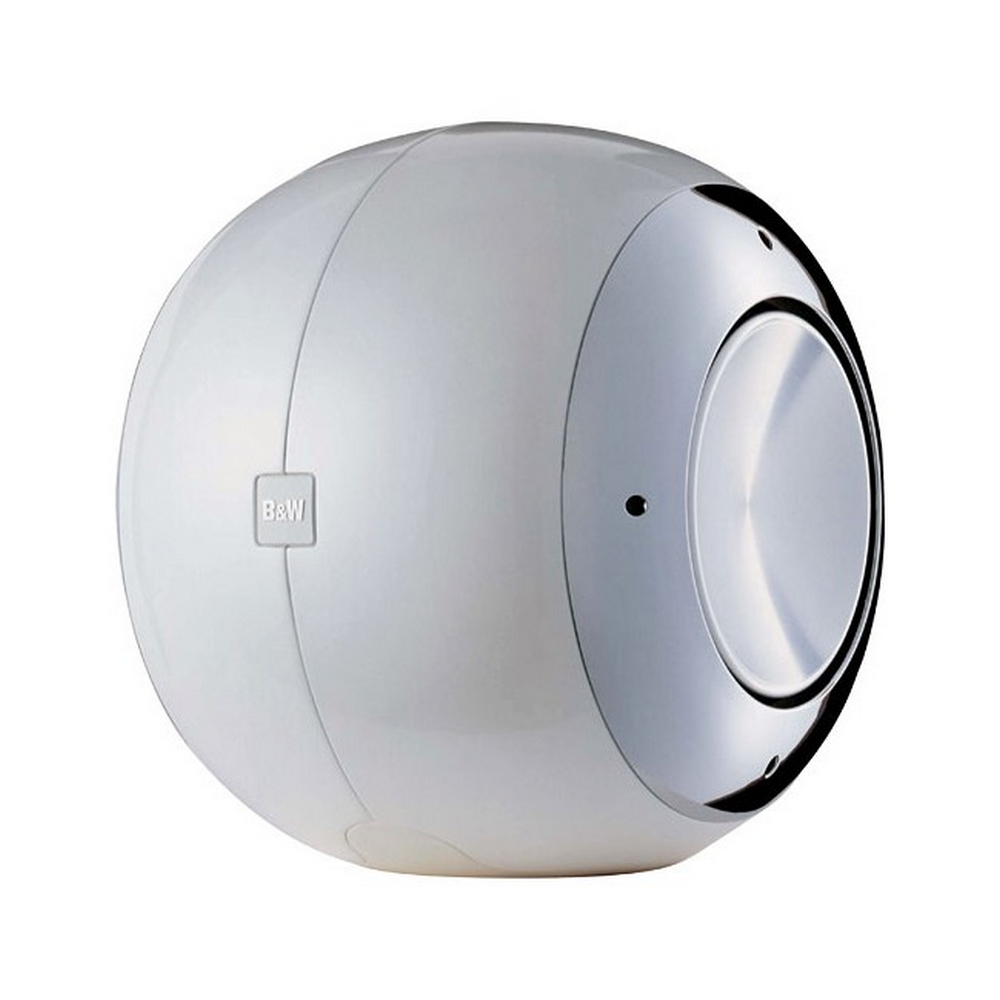

PV1D 2 X 8" Active, balanced-drive closed-box subwoofer system B&W

The world’s most musical subwoofer goes digital

Retaining the balanced drive and pressure vessel concept of its predecessor, PV1D sports a fresh new design and a version of the DSP platform developed for the acclaimed DB1.Digital processing provides greater control and versatility,allowing PV1D to integrate seamlessly with a wide variety ofsatellite speakers, either to create truly impressive home theatre systems, or to simply extend their bass response fortwo-channel applications. There is power on tap to fully reproduce the most demanding special effects in movies, but PV1D retains all the musical nuances for which its predecessor was renowned.

FEATURES:

• 2x 200mm (8in) Paper-Kevlar /aluminium cone long-throw
• Paper-Kevlar /aluminium composite diaphragm drivers

• Balanced drive

• Digital Signal Processing

• 400W Class-D amplifier

• Frequency range: -6dB at 6.5Hz and 570Hz
• Frequency response 7.5Hz - 450Hz ±3dB on reference axis

SPECIFICATIONS:

Amplifier

• Power output: 400W

• Rated power consumption: 150W

• Standby power consumption: <1W

• Input impedance: 100kΩ

• Signal/noise: >100dB

Functions

• 5 presets

• Input sensitivity (analogue)

• Gain (digital)

• Low-pass filter: frequency, slope, phase

• Auto on/standby

• 12V trigger on/standby

• 12V trigger preset switching

• RS-232 automation control

Inputs

• Stereo line in (2x RCA/Phono/Cinch)

• Speaker level in (5m cable supplied)

Dimensions

• Height: 342mm (13.5in)

• Width: 270mm (10.6in)

• Depth: 358mm (14.1in)

Net weight;

• 18.7kg (41lb)

Finishes: Matte Black or Matte White
