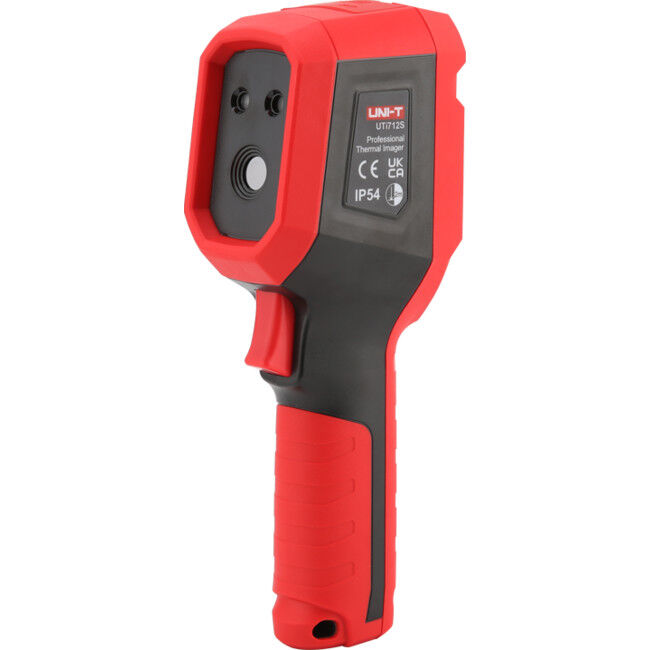

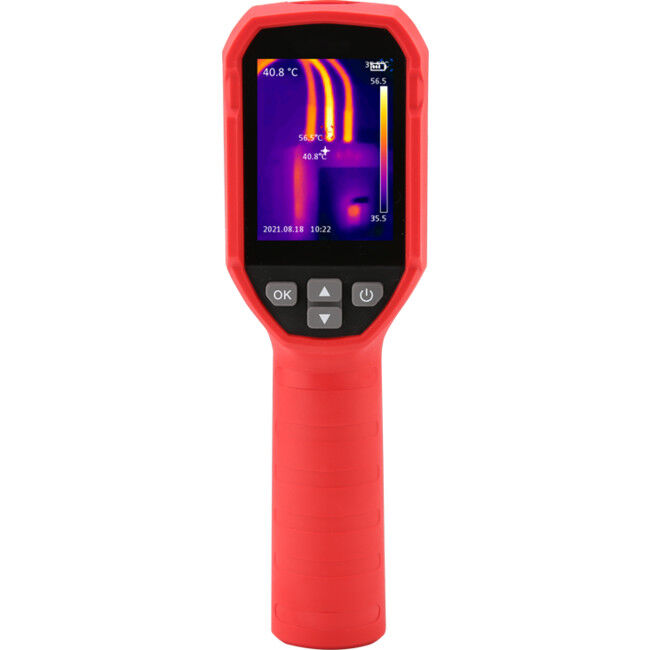

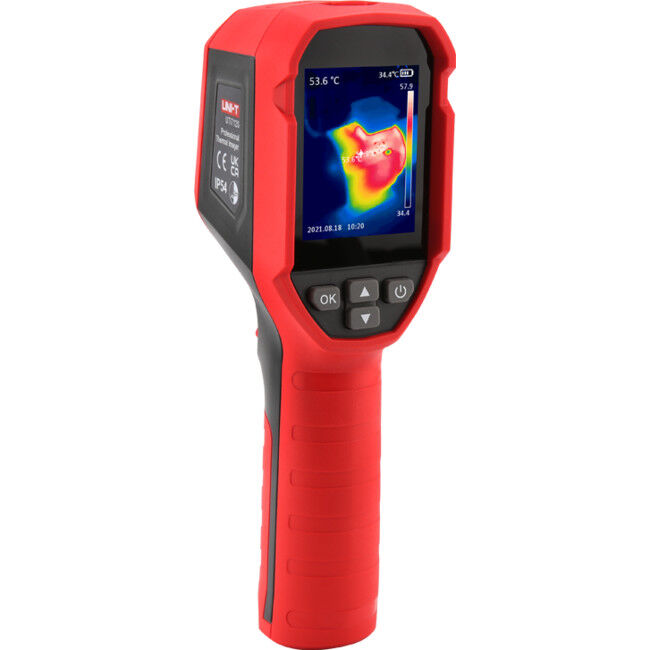

2.4" TFT LCD PROFESSIONAL THERMAL IMAGER

UTi712S is a compact thermal imager with a quality build. It is one of the best prices for performing thermal imagers in the market today. Some special features include temperature compensation (which allows more accurate readings under different temperature environments). This rugged thermal imager has IP54 protection and can withstand 2 meters drop. UTi712S also supports 5 languages: English, German, French, Russian, and Spanish.

Features

IR resolution: 120x90 pixels
2.4" TFT LCD display (320*240 Resolution)
6 Palettes (White hot, Black hot, Iron, Rainbow HC, Rainbow, Lava)
Emissivity: Adjustable (0.01-1.00)
Display mode: Thermal
Temperature compensation
Image capture
Laser indicator
LED flashlight
Auto tracking for Lo/Hi temperature
Auto Lo/Hi temperature alarm
Storage: 32GB Micro SD Card supplied
PC software Analysis
Multi-languages: English, German, French, Russian, Spanish
Protection: IP54 waterproof and dustproof, 2m drop proof
USB Type-c Charging
1/4" tripod mounting hole
Rechargeable Li-ion battery built-in.

What is in the box?

UTi172S x 1
Hand strap x 1
32G Micro SD card x 1
USB-A to USB-C Charging cable x 1
Manual x 1
Download operation guide card x 1

Applications

Building & HVAC,
Pipeline inspection, House water leakage inspection, Air conditioner outlet inspection, Sealing of doors and windows inspection.
Automotive Maintenance, Engine Inspection,
Electricity
Power distribution cabinet inspection, Electric power tower inspection, Solar panel inspection
Outdoor
Animal observation, Security

Specifications

Technical Data
IR resolution (Pixels)	120×90 (10800)
Sensor	Uncooled infrared focal plane
	thermal imaging sensor
Pixel size	17µm
Minimum imaging distance	0.1m

Display	2.4” TFT LCD (320×240)
Field of view(FOV)	50°H×38°V
Thermal sensitivity(NETD)	≤60mK
Spatial resolution(IFOV)	7.3mrad
Frame rate	≤25Hz
Infrared spectrum bandwidth	8~14µm
Focus	Focus Free
Temperature measurement range	-20°C~400°C
Accuracy	±2°C or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Measurement units	°C/°F
Resolution	0.1°C
Functions
Color palettes	6
Color palettes	(White hot, Black hot, Ironbow, Rainbow HC , Rainbow, Lava)
Image modes	Thermal
Hi/Lo temperature alarm	Icon,LED flashlight,Buzzer
Temperature display	Center point temperature,
	high/low temperature tracking
Buttons	4 buttons (power, up, down, OK) 1 trigger
PC software analysis	Yes
Laser pointer	Yes (Class 2)
LED light	Yes
General Characteristics
Battery	Fixed Li-ion battery (3.7V 2600mAh) 18650
Battery operation time	≥8 hours
Charging time	≤2.5h
Charging voltage/current	5V /2A
Power on speed	0s (wake up) / 5s (power on)
Auto power off	5min/10min/30min(default)/off
USB	Type-C
IP rating	IP54
Drop proof	2m
Operating temperature	0-50 °C ( 32-140 °F)
Storage temperature	-20 -60 °C (-4 -140 °F)
Operating humidity	< 85%RH
Image storage	16GB Micro SD card
Image/Video storage format	BMP
Certificates	CE,UKCA,FCC,RoHS
Product net weight	310g
Product size	197mm×72mm×60mm
