Product Features:
- 1-CH IP extender over coax cable
- Transmit Ethernet signal over coax cable
- Transmission distance max up to 2 00m
- Access Control Method and Physical Layer Specification Comply with IEEE802.3,10BASE-T and 100BASE-T
- Passive device, no power required
- Real-time transmission
- Built-in TVS for surge protection
- Compact size, easy to install
- ABS engineering housing
Product Overview:

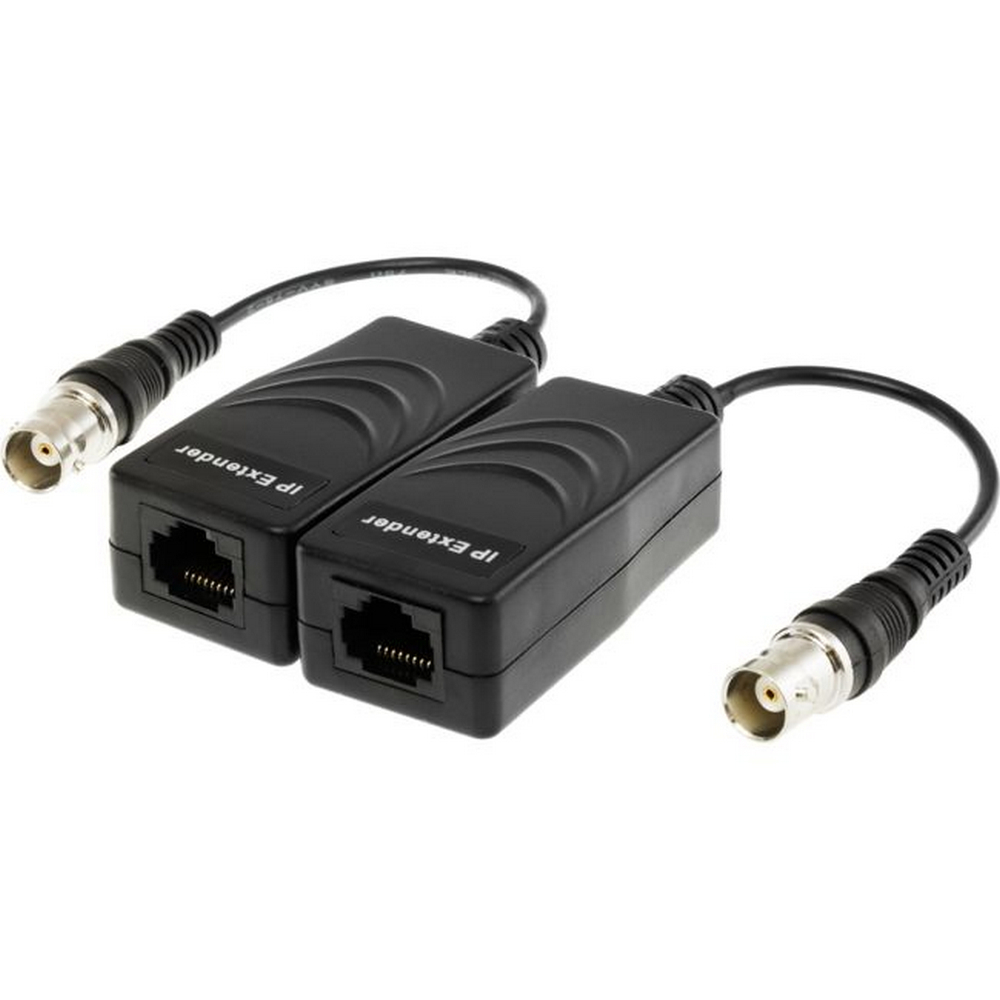

IPOC200 is a kind of Ethernet signal extender over coax cable, which adopts specific technology for media conversion, complies with IEEE802.3, 10BASE-T and 100BASE-T Protocol Standards. The device can transmit Ethernet signal200 meters over coax cable without extra power provided. Built-in TVS for surge protection help IPOC200 can protect interior equipment when encounter badly thunderstorms from. As for the application area IPOC200 can be widely used for network monitoring project, upgrading from coaxial analog monitoring system to network HD monitoring system, and all the field of transmitting Ethernet signal over coax cable.
Applications:
Security Monitoring System
Triple-Play Transmission Solutions
Intelligent Home System
Industrial Control System
Banking Security
School Security
Store Security
Technical Specifications:
Model |
IPOC200 |
|
Product Name |
Single Channel IP Extender over Coax |
|
Applied Devices |
PoE Switch, Network DVR, Video Codec, Other Network Equipments |
|
Video |
Ethernet Port |
10/100 Mbps |
Impedance |
UTP:100 ohm coax:75 ohm |
|
Distance |
Up to 200m(100Mbps) |
|
Power |
No Extra Power Needed |
|
Connector |
Video Port |
RJ45 (Female) |
Video Port |
BNC (Female) |
|
Protection Level |
Surge Protection Type |
RenewableSolid Surge Protection |
Coaxial Surge Protection |
2KV(Common Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
Twisted Pair Interface Surge Protection |
2KV(Differential Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
Operating Environment |
OperatingTemperature |
-20-85 ? |
Storage Temperature |
0~95% |
|
Humidity |
115mm*82mm*22mm |
|
Physical Properties |
Dimension(Length*Width*Height) |
ABS Engineering Plastic |
Housing |
Black |
|
Color |
90g |
|
Weight |
>20000h |
|
Reliability |
MTBF |
|
Diagram:
(IPOC200)
12 Months
SKU | IPOC200 |
Model # | FS-EOC7001 |
Barcode # | 9328202016577 |
Brand | DOSS |
Unit Of Measure | Each |
