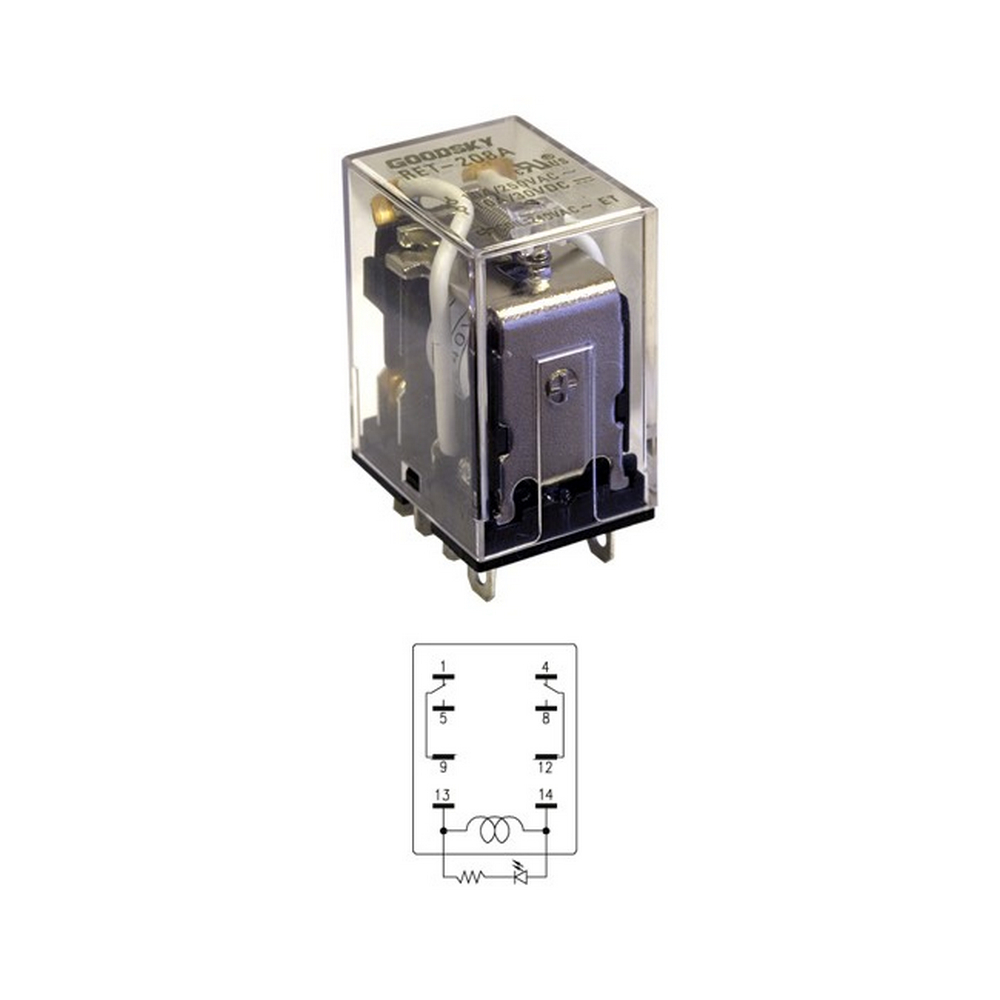

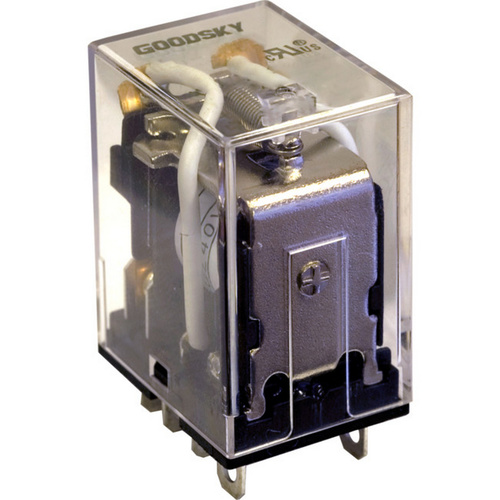

240V AC DOUBLE POLE 10A RELAY

Application : Vending Machine, Cooking Appliances, OfficeMachine, Domestic Appliances, Control Equipment, etc.

FEATURES:

• 1 Pole to 4 Poles versions are available with switching current at 15 Amps (1 Pole) and 10 Amps (2-4 Poles).
• Solder Lug Terminal and Flanged Case are designed for direct panel mounting use.
• Low coil power consumption with high response time.
• High reliability and long life with better vibration and shock resistance.
• 1/3 Horse power on RET 2 Poles series are certifiedby UL.
• Touch Button and LED version are available for customer’s selection


SPECIFICATIONS:

• Contact Resistance.............100 mΩ Max.@1A,6VDC
• Operate Time.......................25 mSec. Max.
• Release Time......................25 mSec. Max.
• Dielectric Strength :
  • Between Coil & Contact......1,500VAC at 50/60Hz for one minute.
  • Between Contacts...............1,000VAC at 50/60 Hz for one minute.
• Surge Strength....................3,000V (between Coil & Contact 1.2x50μSec.)
• Insulation Resistance..........100 MegaΩ Min. at 500VDC.
• Max. On/Off Switching :
  • Electrical..............................6 Cycles per Minute.
  • Mechanical..........................300 Cycles per Minute.
• Temperature Range.............-25 - 55°C
• Humidity Range...................45 - 85% RH.
• Coil Temperature Rise.........60°C Max.
• Vibration:
  • Endurance...........................10 to 55 Hz dual amplitude width 1.5mm.
  • Error Operation....................10 to 55 Hz dual amplitude width 1.5mm.
• Shock:
  • Endurance .........................1,000 m/S2.
  • Error Operation....................100 m/S2.
• Life Expectancy :
  • Mechanical .........................100,000,000 Operations at No Load condition.
  • Electrical ............................1,000,000 Operations at Rated RET Resistive Load.
• Weight:
  • 1-2P :About 35 g.
  • 3P :About 53.2g.
  • 4P :About 66.5g.
• Safety Standard & Its File Number
  • C-UL (1-pole & 2-pole)........E141060
