240W Power Amplifier TOA

240W 2000 SERIES POWER AMPLIFIER - TOA

Offering high-end performance at affordable cost. Think of TOA when you need amplifiers for commercial audio applications.

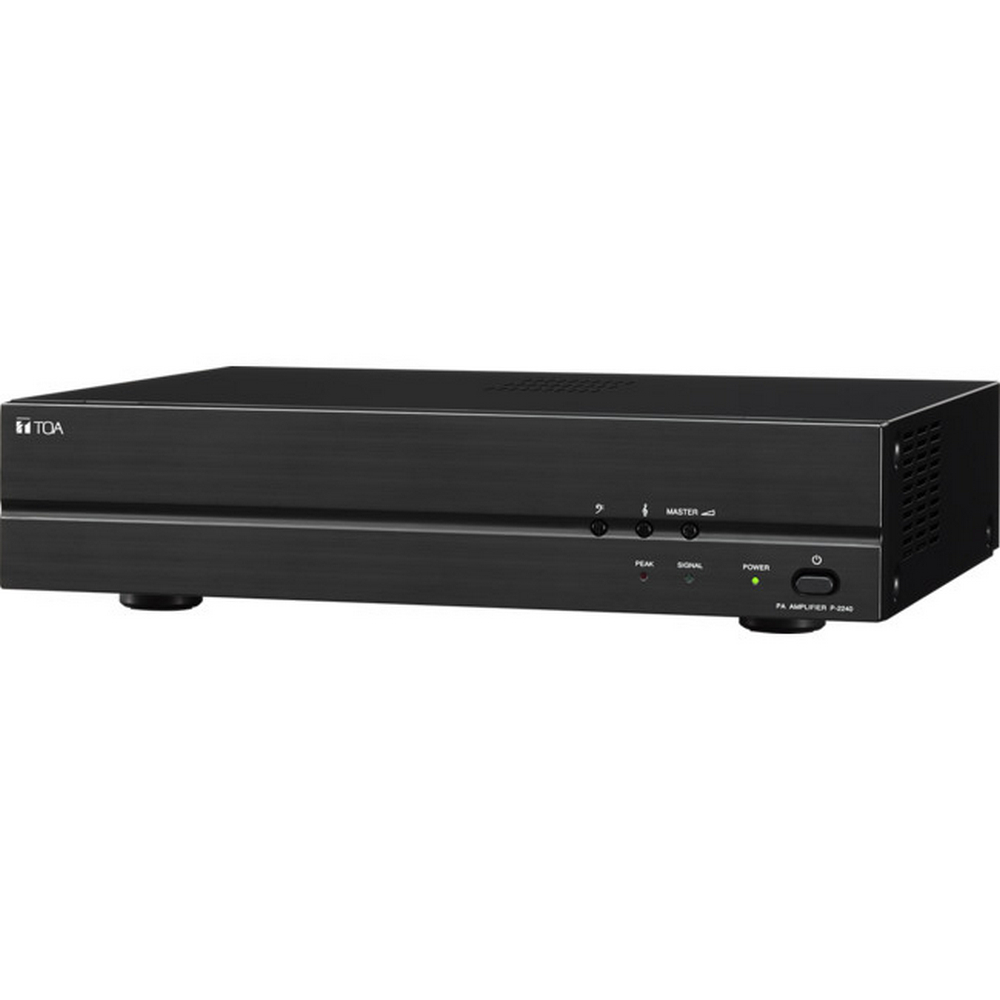

TOA’s P2240 Power Amplifier is designed to complement the A2000 Series of Mixer Power Amplifiersand is consequently a highly cost effective solution to the demands of PA applications. Features such as front bass, treble and volume controls and a 100 volt line input enures its versatility and adaptability to situations where a booster amplifiers is needed. The 100 volt line input allows it to be aded to the end of an existing 100 volt speaker line or used on the high impedance speaker output of a mixer amplifier.

P2240 Power Amplifier Features:

240 watt 100 volt, 70 volt or low impedance outputs
Volume, bass and treble control on front panel
Line level in and out for cascade operation
100 volt line input 50Hz or 20kHz frequency response
Rack mountable with MB25B brackets
3 year warranty

FEATURES:

The P-2240 offers a high performance-to-cost ratio, andcan be used with TOA’s A-2000 Series mixer power amplifiers. Because the P-2240 features
a 100V line input, it can be connected to the speaker line from another amplifier. Also, the P-2240’s power can be switched on and off by remote control, allowing it to be operated independently of the A-2000 Series.

High cost-performance

Suitable for commercial audio systems in schools, offices, shops, factories, houses of worship, and large meeting rooms
Equipped with balanced mic. inputs for better isolation from external noise, compared to unbalanced inputs
Improved durability compared with conventional TOA models

Flexibility

A wide range of power outputs from 30W to 240W
Offers a comfortable acoustic space thanks to tone control at bass and treble
Both AC and DC operation possible
Phantom power provided to MIC1, for supplying power to a condenser microphone

Easy to handle

Scratch- and fingerprint-resistant finish
Easy and quick volume control with master volume knob

SPECIFICATIONS:

Model No.	A-2030	A-2060	A-2120	A-2240	P-2240
Power Source	220 – 240V AC or 24V DC
Rated Output	30W	60W	120W	240W	240W
Power Consumption	34W (EN60065), 78W (AC operation atrated output), 2A (DC operation at rated output)	72W (EN60065), 150W (AC operation at rated output), 4A (DC operation at rated output)	124W (EN60065), 260W (AC operation at rated output), 8A (DC operation at rated output)	238W (EN60065), 520W (AC operation at rated output), 15A (DC operation at rated output)	238W (EN60065), 520W (AC operation at rated output), 15A (DC operation at rated output)
Frequency Response	50 – 20,000Hz (±3dB)
Distortion	Under 1% at 1kHz, 1/3 rated power
Input MIC	MIC 1 – 3: -60dB, 600Ω, electronically balanced, XLR3-31 type AUX 1, 2: -20dB, 10kΩ, unbalanced, RCA pin jack Mute: Contact screw terminal (for MIC 1)				Line in: 0dB, 10kΩ, balanced, screw terminal 100V line in: 40dB, 330kΩ, unbalanced, screw terminal Power remote control: Make contact
Output - Loop out	—	—	—	—	0dB*, 10kΩ, balanced, screw terminal
Output - Speaker out	Balanced (floating)	Balanced (floating)	Balanced (floating)	Balanced (floating)	Balanced (floating)
Output - High impedance	330Ω (100V), 170Ω (70V)	170Ω (100V), 83Ω (70V)	83Ω (100V), 42Ω (70V)	42Ω (100V), 21Ω (70V)	42Ω (100V), 21Ω (70V)
Output - Low impedance	4Ω (11V)	4Ω (15.5V)	4Ω (22V)	4Ω (31V)	4Ω (31V)
Output - Rec. out	0dB*, 600Ω, unbalanced, RCA pin jack	0dB*, 600Ω, unbalanced, RCA pin jack	0dB*, 600Ω, unbalanced, RCA pin jack	0dB*, 600Ω, unbalanced, RCA pin jack	—
Phantom Power	DC +21V (MIC 1)				—
S/N Ratio	Over 60dB
Ventilation	—			Fan cooling
Tone Control	Bass: ±10dB at 100Hz/Treble: ±10dB at 10kHz
Muting	MIC 1: Mutes other input signals by 0 – 30dB attenuation				—
Indicator	Power. signal, peak
Finish	Panel: ABS resin, black/Case: Steel plate, black
Dimensions	420 (W) × 100.9 (H) × 280.3 (D)mm		420 (W) × 100.9 (H) × 360.3 (D)mm		420 (W) × 100.9 (H) × 351.3 (D)mm
Weight	5kg	7kg	10.8kg	13.2kg	13.2kg
