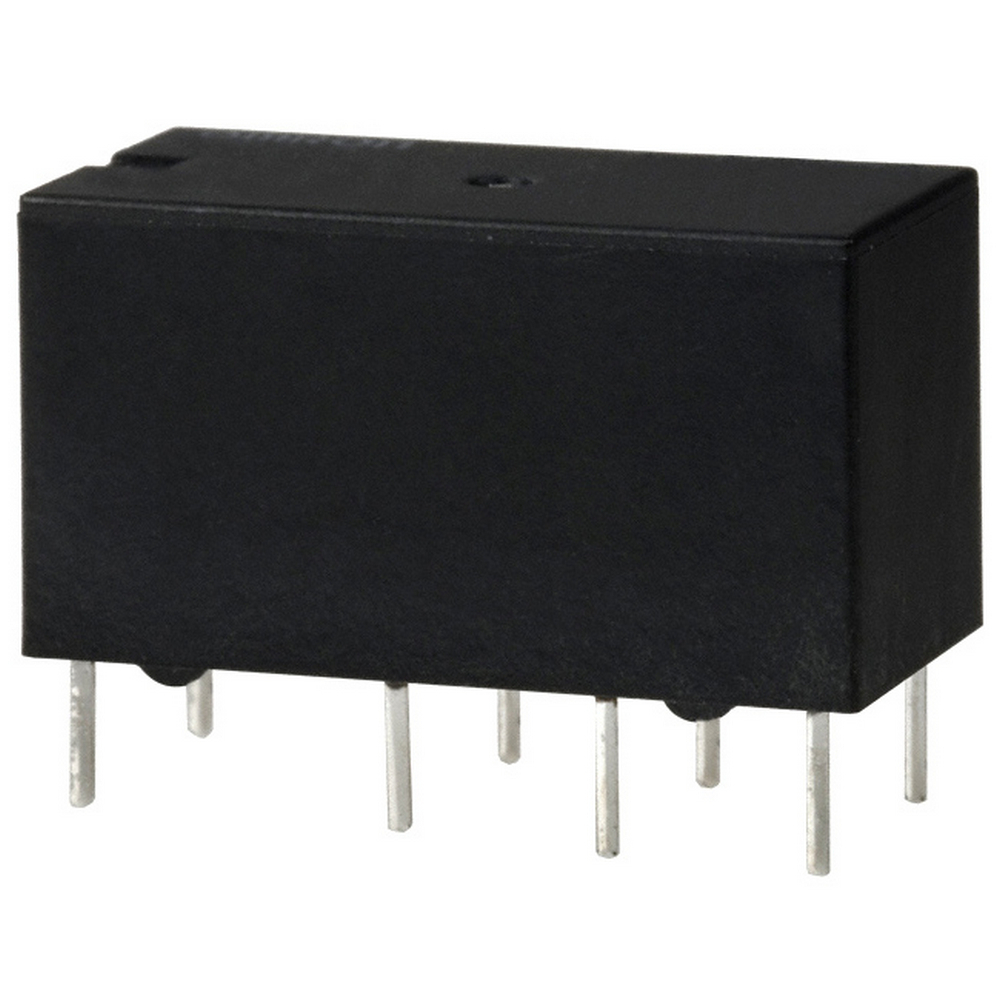

24V DC 1A DUAL INLINE RELAY
The Dual-in Line relay is designed to offer a completelydust and water-proof package with bifurcated and crossbar contacts for assuring high reliability.
Plastic sealed package and DIP terminal for flow-soldering process
Application : Telecommunication, domestic appliances, office machine, audio equipment, Remote Control, etc
FEATURES:
- Reliable Ag + Au clad contact type is suitable for low level switching application.
- Small size and light weight can provide high density P.C. Board mounting
- Capable of switching loads 10uA to 2 A
- Conforms to FCC part 68 1,500V surge withstand
- Employment of suitable plastic materials to be applied to high temperature and various chemical solution.
- Fully sealed construction.
SPECIFICATIONS:
- Contact Resistance.............100mΩMax.@0.1A,6VDC
- Release Time......................4 mSec. Max.
- Dielectric Strength :
- Between Coil & Contact.......1,000VAC at 50/60 Hz for one minute.
- Between Contacts................1,000VAC at 50/60Hz for one minute.
- Surge Strength.....................1,500V (between coil & contact 10 x 160μ.)
- Insulation Resistance..........1,000 MegaΩ Min.at 500VDC.
- Max. On/Off Switching :
- Electrical..............................1,800 Cycles per hour. ( under rated Load )
- Mechanical 36,000 Cycles per hour.
- Temperature Range..............-25 - 70°C
- Humidity Range....................5 - 85% RH.
- Coil Temperature Rise:
- 25°C Max. (D Type)
- 20°C Max. (T Type)
- Vibration:
- Endurance.............................10 to 55 Hz dual amplitude width 1.5mm.
- Error Operation.....................10 to 55 Hz dual amplitude width 1.5mm.
- Shock:
- Endurance ...........................1,000 m/S2 .
- Error Operation.....................100 m/S2 .
- Life Expectancy:
- Mechanical ..........................15,000,000 Operations min at operating frequency of 36,000 operations per hr
- Electrical ..............................1,00,000Operations min at 1,800 operations per hr
- Weight...................................About 5 g.
- Safety Standard & Its File Number
- C-UL(D&T only)....................E41515
- CSA(D&T only).....................LR31928
(G5V224V)
SKU | G5V224V |
Model # | G5V-2-24V |
Brand | OMRON |
Unit Of Measure | Each |
Assembled Width | 0.005m |
