Features

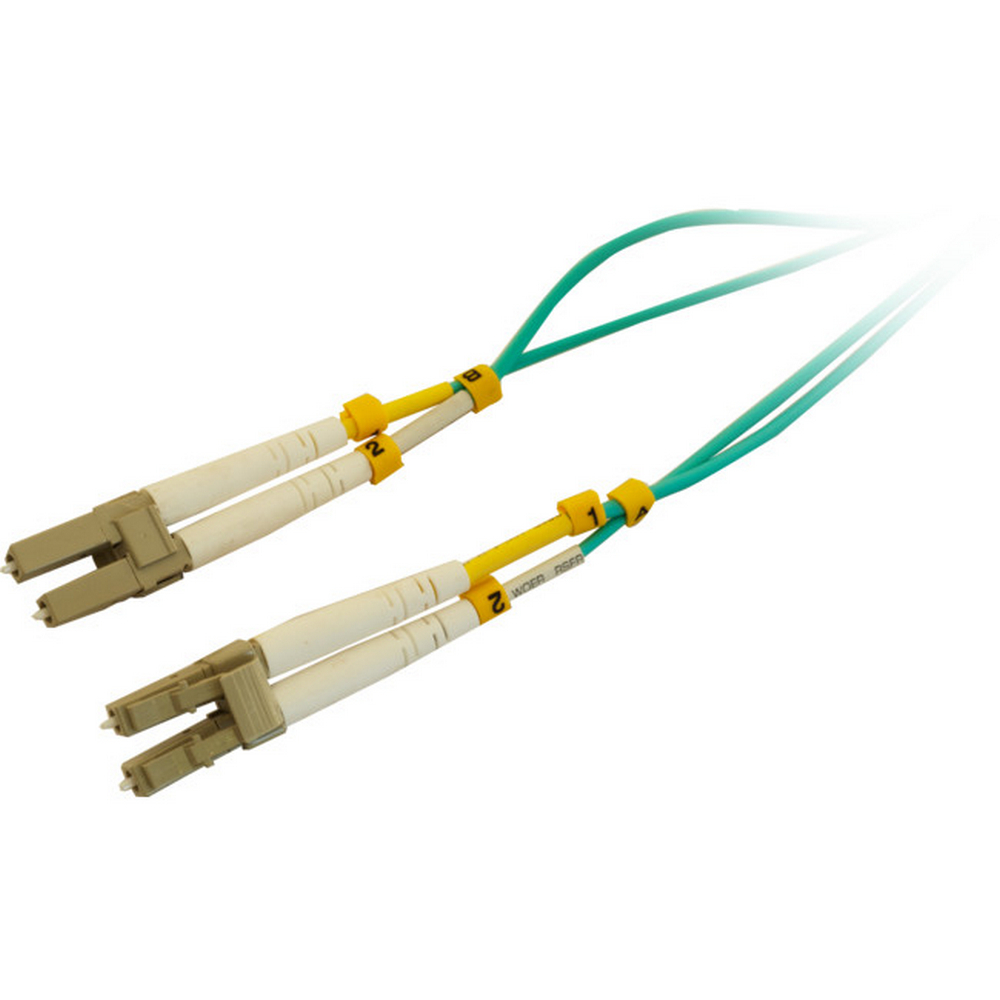

OM4 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, is used for 10/100Gb Ethernet applications. These new technology, 50/125um, LC/LC OM4 Fiber Optic Patch Cord, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10/100Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution.
LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.

  • Designed for 10/40/100-Giga Ethernet applications, OM4 Rated
  • 10//40/100gb Ethernet speed to 300 metres @850nm
  • Use with VCSEL and LED laser light sources
  • High-Speed, High-Bandwidth, Low-Cost
  • Backward compatible with legacy LAN's
  • Ideal for Fibre Channel (SAN) applications
  • IEEE 802.3ae and TIA LOMMF compliant

Specifications

Type

Multi-mode 50/125 OM4

Insertionloss

≤0.3dB

Return Loss

≥35 dB

Network Speed

10Gbps / 40Gbps / 100Gbps

Repeatability

≤0.1dB

Durability

≥1000matings

OperatingTemperature

-40°Cto +80°C

Tensile Strength(N)

≥90N(Φ3), ≥70N(Φ2)

(FP7640)

12 Months
SKU FP7640
Barcode # 9328202001719
Brand PRO2
Unit Of Measure Each
Assembled Width 0.037m
