FEATURES

  • Switch between 3 HDMI inputs to 1 HDMI output
  • HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
  • Bandwidth up to 18Gbps
  • HDCP2.2/ HDCP1.4, CEC
  • Support HDR10
  • Uses IR remote control or switch button to choose thesource
  • Micro USB interface for the user to upgrade firmware
  • Keeps memory of the last power state when switching different HDMI channels

SPECIFICATIONS

  • Operating Temperature Range: -5 to +40°C(+23 to +104°F)
  • Operating Humidity Range: 5 to 90%RH (No Condensation)
  • Power supply: 5V 1A
  • Minimum power: 182mA (work under 480p60hz)
  • Maximum power: 277mA (work under 4K2K/60hz)
  • Max resolution: 4k@60hz YUV4:4:4
  • Function: HDR10 and CEC
  • HDMI version: HDMI 2.0
  • HDCP version: HDCP2.2 / HDCP1.4(Auto choose depends onTV version)
  • Control ways: Switch button and IR remoter control
  • Distance: 1080P 20m, 4k@30hz 10m, 4k@60hz under HDR can support 3m
  • Dimensions(LxWxH): 125x64.2x17mm

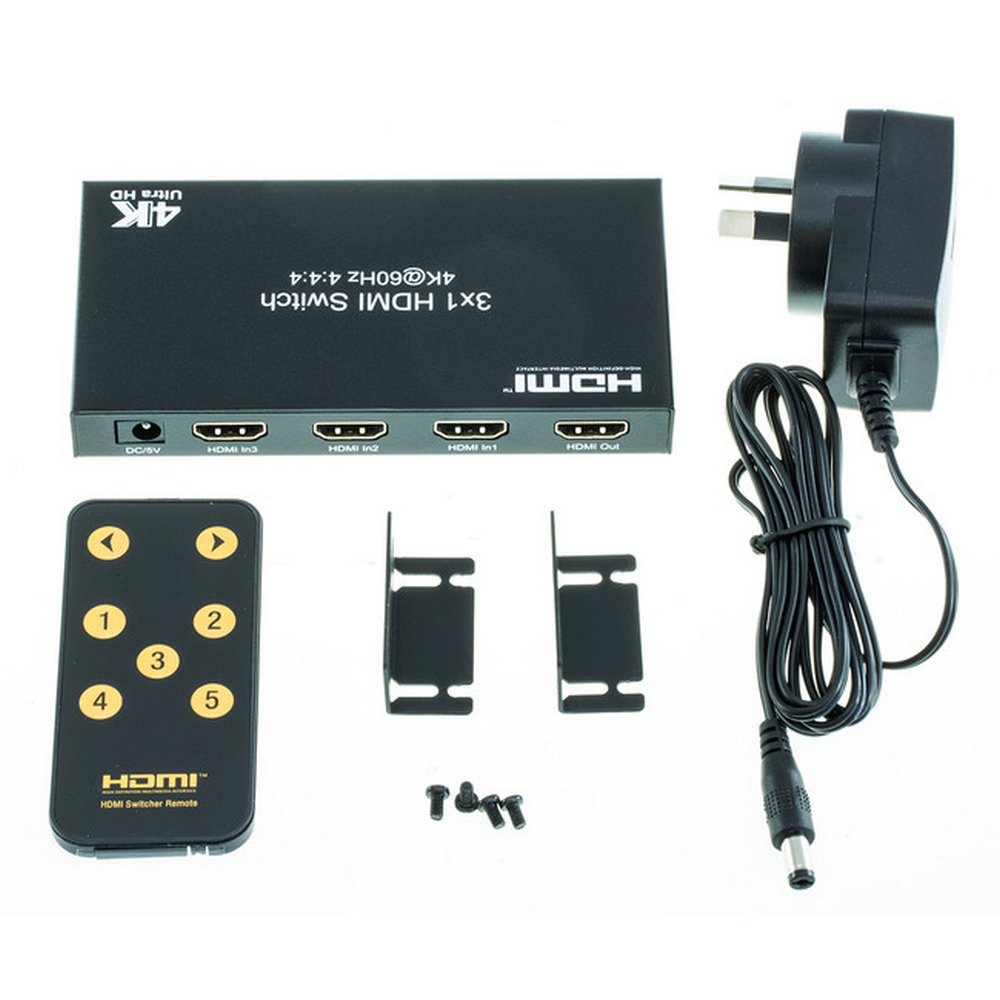

PACKAGE CONTENTS

  • 1x HDMI Switch
  • 1x 5V 1A DC power adapter
  • 1x User manual
  • 1x IR Remote controller

(HDMI3S18G)

12 Months

SKU HDMI3S18G
Model # SX-SW10
Barcode # 9328202033789
Brand PRO2
Unit Of Measure Each
Assembled Width 0.405m
