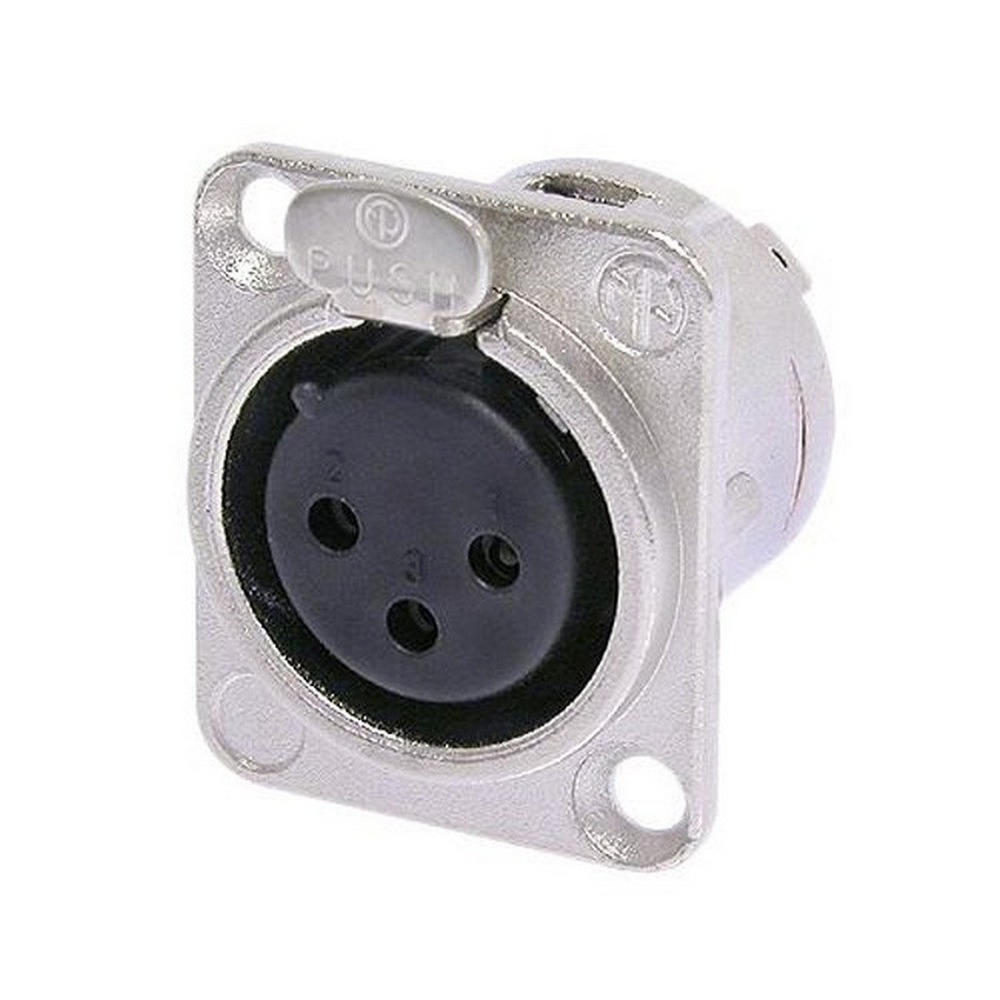

3 pole female receptacle, solder cups, Nickel housing, silver contacts

Universal D-size metal body XLR panel mount series. UL recognized component.

Features & Benefits

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Soldercups on 3 - 7 pole version

Technical Information

Products
Title
NC3MDM3-L-1
Connection Type XLR
Electrical
Capacitance between contacts
= 4 pF
Dielectric strength
1,5 kVdc
Contact resistance
= 5 mO (inner)
Insulation resistance
> 2 GO (initial)
Rated current per contact
16 A
Rated voltage
50 V
Mechanical
Insertion force
= 20 N
Withdrawal force
= 20 N
Lifetime
> 1000 mating cycles
Mounting direction
 front &rear
Chassis shape
 D
Wiresize
max. 14 AWG
Wiresize
max. 2.5 mm2
Wiring
Solder contacts
Locking device
latch lock
Material
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Bronze (CuSn8)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell Plating Nickel
Locking element
Steel Ck67
Environmental
Approval
UL
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

(PD5680)

12 Months

SKU PD5680
Model # NC3FD-L-1
Brand NEUTRIK
Unit Of Measure Each
Assembled Width 0.023m
