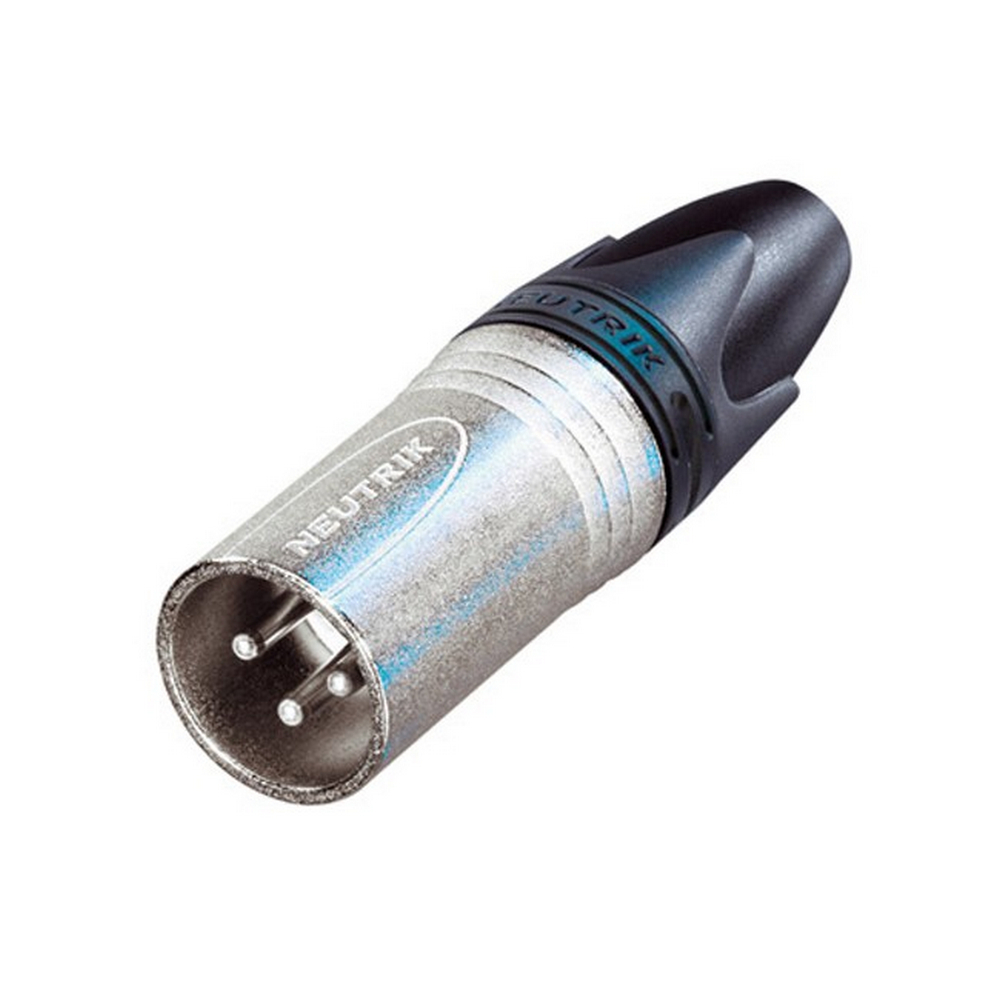

3 pole male cable connector with Nickel housing and silver contacts.
The next generation of the worldwide accepted standardof XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features & Benefits
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane glandgives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design -valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well proteced against any damage
Technical Information
Products | |
Title | NC3MXX |
Connection Type | XLR |
Electrical | |
Capacitance between contacts
|
= 4 pF
|
Dielectric strength |
1,5 kVdc
|
Contact resistance
|
= 3 mO (inner)
|
Insulation resistance |
> 2 GO (initial)
|
Rated current per contact
|
16 A
|
Rated voltage
|
50 V
|
Mechanical | |
Insertion force
|
= 20 N
|
Withdrawal force
|
= 20 N
|
Lifetime
|
> 1000 mating cycles
|
Cabel O.D.
|
3.5 - 8.0 mm
|
Wiresize |
max. 2.5 mm2
|
Wiresize |
max. 14 AWG
|
Wiring |
Solder contacts
|
Locking device
|
latch lock
|
Material | |
Contact plating
|
2 µm Ag
|
Contacts |
Brass (CuZn39Pb3)
|
Insert |
Polyamide (PA 6.6 30 % GR)
|
Shell |
Zinc diecast (ZnAl4Cu1)
|
Shell Plating | Nickel |
Strain relief
|
Polyacetal (POM)
|
Boot
|
Polyuretan
|
Bushing
|
Polyamide (PA 6 15% GR)
|
Locking element
|
Zinc diecast (ZnAl4Cu1)
|
Environmental | |
Flammability
|
UL 94 HB
|
Standard compliance
|
IEC 61076-2-103
|
Protection class
|
IP 40
|
Solderability
|
Complies with IEC 68-2-20
|
Temperature range
|
-30 °C to +80 °C
|
(PD5290)
12 Months
SKU | PD5290 |
Model # | NC3MXX |
Barcode # | 7613187000379 |
Brand | NEUTRIK |
Unit Of Measure | Each |
Assembled Width | 0.033m |
