Overview

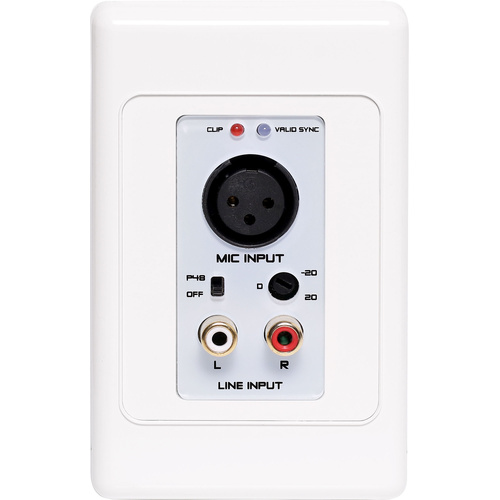

This wallplate is designed to accept Mic input and RCA Line level input with the Dante interface. Equipped with high performance of microphone pre-amplifier circuit and phantom power, the wallplate supports condenser or dynamic microphone and provides perfect sound to the Dante network via standard CATx cable with RJ-45 connector.

Powered by using PoE (Power over Ethernet), or DC24V power supply. Features high-quality circuits to provide studio grade of performance without worrying about ground loops or other common audio problems. High performance, simplicity of operation, and ef?ciency of installation makes this wallplate ideal to use for installed sound systems, teleconferencing, etc.

Features

• Dante Interface 2 input channels.
• Converts microphone or RCA Line signal to Dante network.

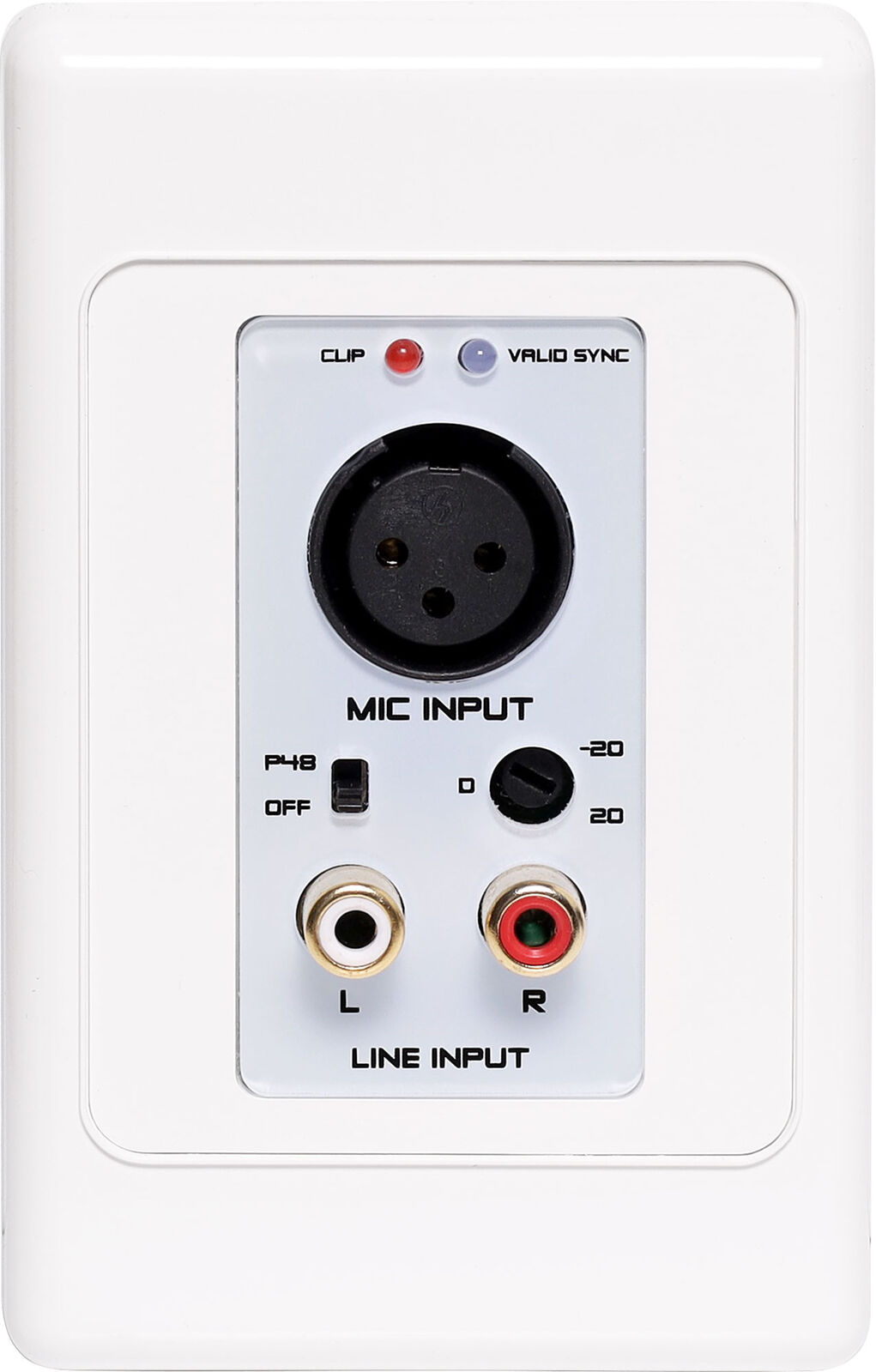

• CLIP and VALID SYNC LED indications on the front panel.
• Microphone input gain control on the front panel.
• Phantom power switch to support Condenser microphone.
• Power supply via PoE network switch or DC24V input.
• Simply audio configuration and routing by using Dante Controller.

Specifications

• Input: XLR (CH1), RCA, L(CH1)/R(CH2)
• Input impedance: <1.5K Ohm (XLR), <1.5K Ohm (RCA)
• Max input level: -22dbu (XLR), +12dbu (RCA)
• S/N: >60dB A-Weight
• THD+N: <0.1%@1KHz
• Frequency response: 20Hz ~ 20KHz
• Phantom power: 48V
• Gain range: -20dB to +20dB
• Dante AES67 Interface: 2 in
• Network connection: RJ45 x 1

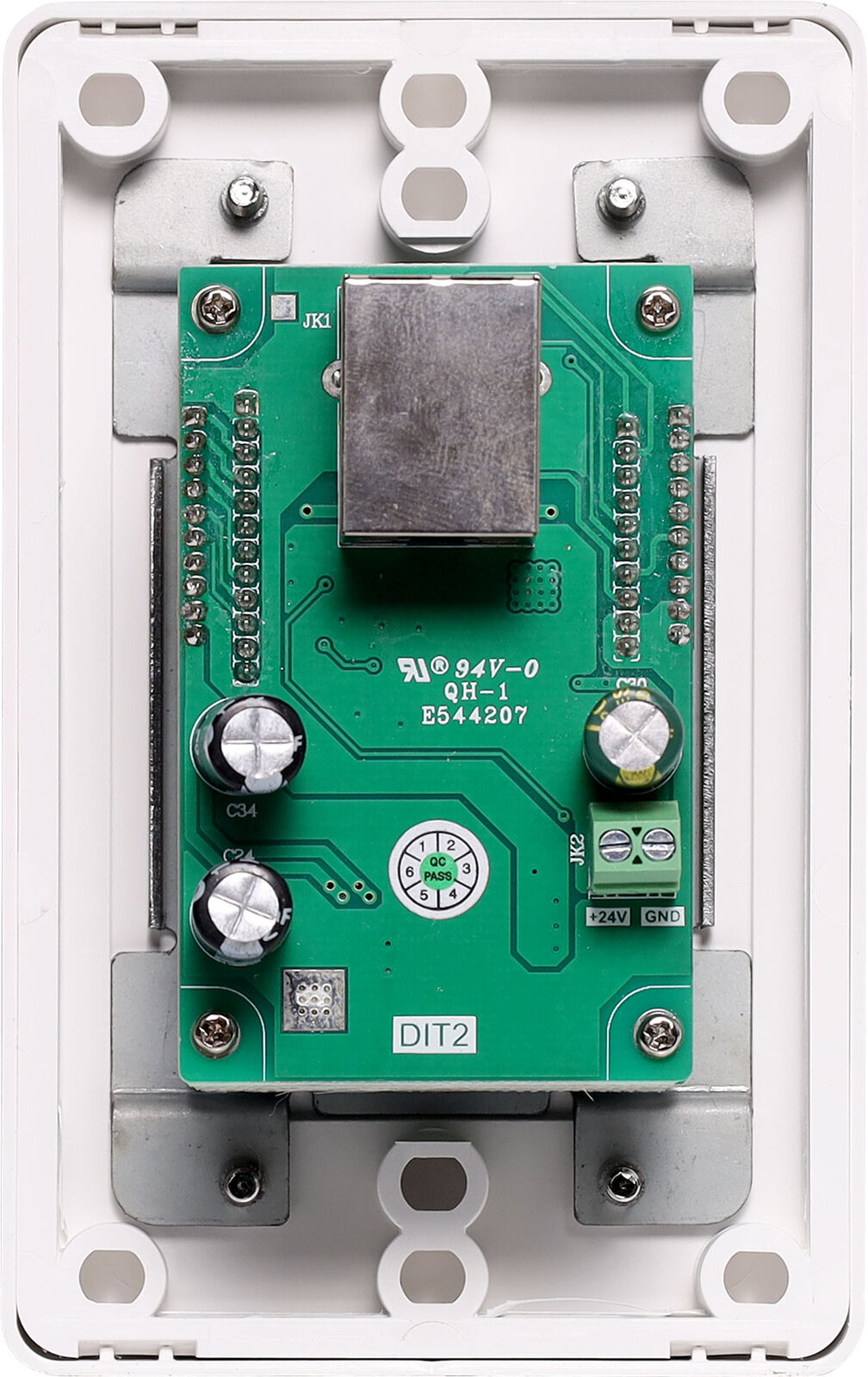

• Power supply: 802.3af PoE or DC 24V 750mA input
• Dimensions: 114H x 70W x 50Dmm

  *Specifications are subject to change without notice.
