- 30 Amp DC Power Connectors
- These industry standard connectors are used in automotive, marine, aviation and mining applications and are used widelyin industry.
- They are genderless which means that there is no separate plug and socket and can be easily stacked to make custom configurations.
- Rated at 30A DC with a surge of 45A DC, they are compact enough to fit in tight places but rugged enough to handle most current loads.

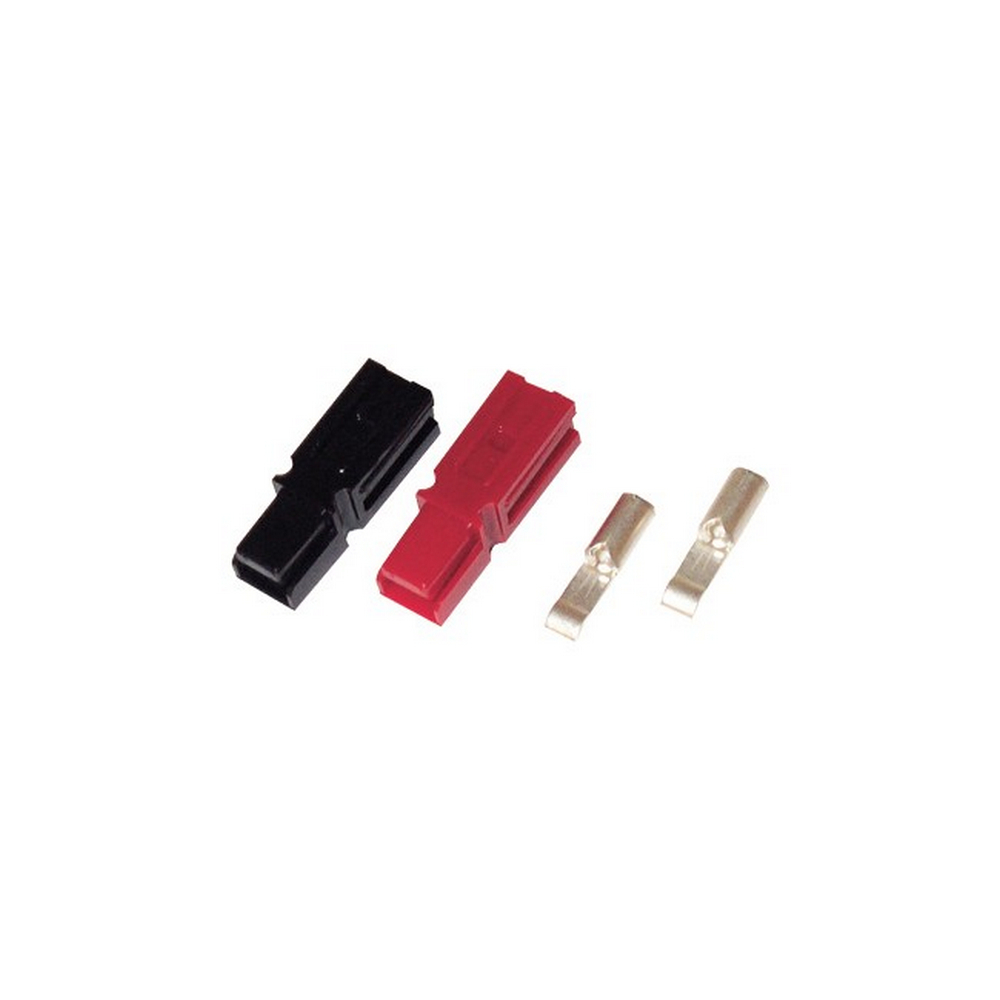

- Supplied as a red and black pair with contacts.
- Contact Rating: 30A (max. 45A)
- Voltage: 600V (AC or DC)
- Contact Wire Size: 1.63mm - 2.59mm (#10-#14 AWG)
- Max Wire Insulation Diameter: 4.4mm
- Contact Retention Force: 9kgs (20lbs)
- Operating Temperature: -40 to +125 degrees C
