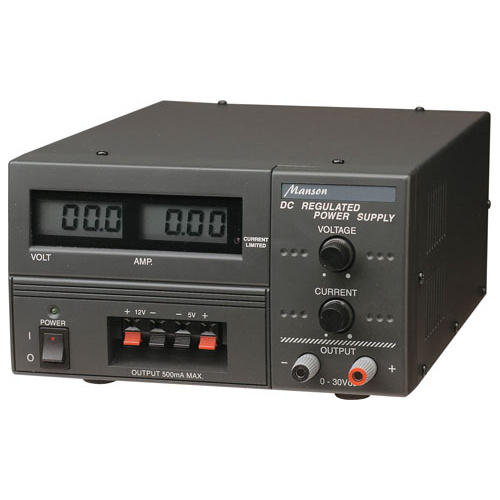

With an output of up to 30 volts at 3 amps, this compact bench power supply has been one of our most popular. Both output voltage and current are fully adjustable. In the case of an output short, the power supply goes into overload and shuts down. In addition to the variable output, the supply is fitted with 2 fixed outputs, 1 of 12V and the other of 5V both rated at 0.5A. It is ideal for R+D departments, service centres, workshops etc

Features

  • 0 to 30V @ 0 to 3A output
  • Regulated variable output voltage
  • Auxiliary fixed outputs of 5V & 12V @ 0.5A
  • Variable current limiting
  • Digital LCD meters
  • Overload & short circuit protected
  • Floating outputs
  • Extremely low ripple & noise
  • Excellent regulation

Specifications

  • Voltage output: 0 to 30V DC @ 0-3A
  • Auxillary outputs: 12 Volt DC @ 0.5A, 5 Volt DC @ 0.5A
  • Output current: Variable 0 to 3A on main, 500mA max fixed rails
  • Ripple & noise: Less than 5mV
  • Load regulation: 20mV 0-10% Load
  • Apprx. Size(WxHxD): 205W x 115H x 230D mm
  • Net weight: 5.4kg

(M8200A)

12 month warranty

SKU M8200A
Model # M8200A
Barcode # 9321758002629
Brand Manson
Unit Of Measure each
