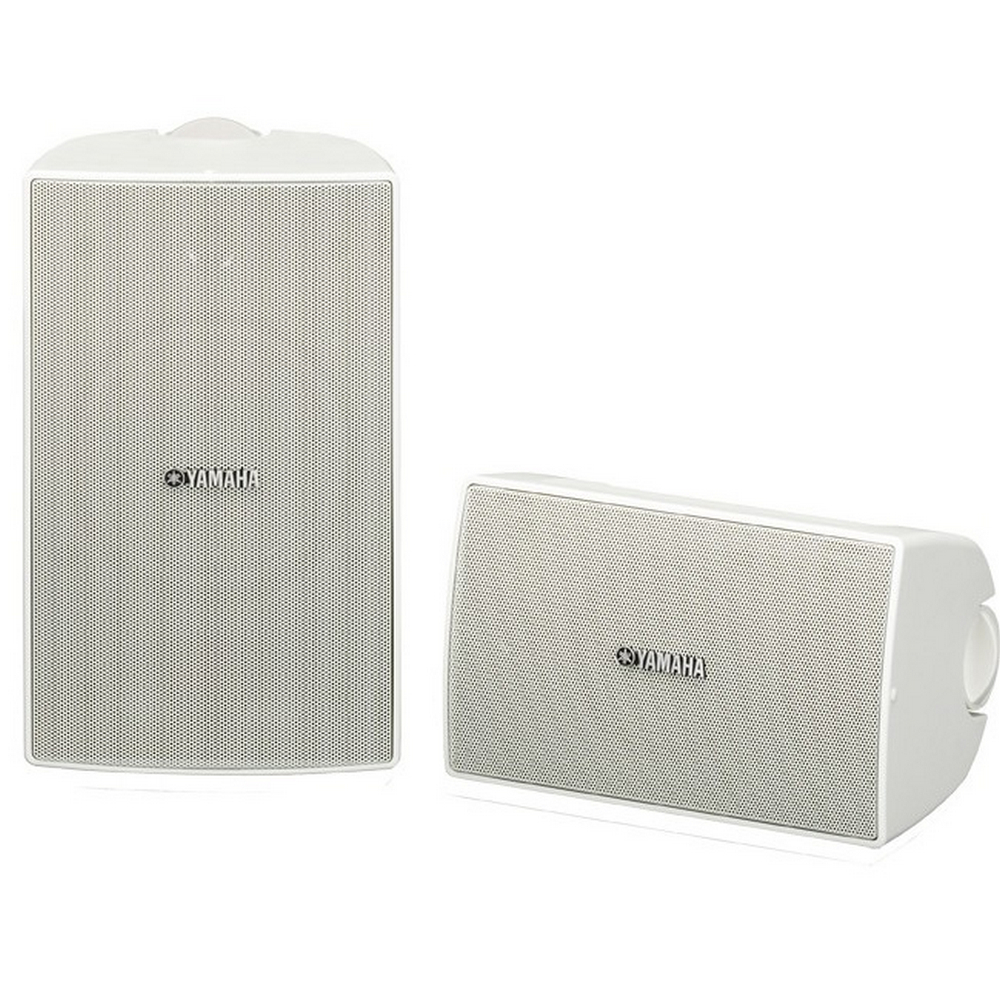

NS-AW194 OUTDOOR SPEAKERS YAMAHA

• High performance outdoor speakers with outstanding sound quality and weatherproofing.
• The simple design allows them to be installed in many types of locations.

FEATURES:

High Sound Quality

• Yamaha’s advanced speaker design combines superior sound quality with excellent weatherproofing
• Two-way bass reflex design
  - Powerful woofer delivers accurate mid/low frequency response
  - Balanced dome tweeter ensures clear high frequency response
• Excellent audio performance, weatherproof cabinets that are drip, water and UV resistant

Convenient Design

• Simple design looks natural on a home exterior, on a patio or inside a room
• Two sizes and two color variations allows you to choose the best match in various installations
• Flexible installation options with supplied mounting brackets
• Powder-coated grilles provide outstanding weatherproofproperties
• Push type speaker terminals for easy installation

Highly Durable Cabinets Designed forSound Quality

• The specially processed plastic cabinets ensure both excellent sound quality and durability.
• They are drip, water and UV resistant, maintaining their excellent performance during outdoor use.

Wide Range of Installation Possibilities

• The supplied brackets allow you to adjust the speakersto match the installation location.
• They can be installed vertically or horizontally, and can be moved through a range of 81° to the right or leftand up or down directions.

Powder-Coated Grille

• The grille has a special powder coating that gives it outstanding weatherproof properties.

Push Type Speaker Terminals

• The push type terminals make connecting speaker cablesa quick and easy operation.

SPECIFICATIONS:

• Type 2-way bass-reflex
• Woofer 4" (10cm) waterproof cone
• Tweeter 1" (2.5cm) fluid-cooled, coated balanceddome
• Frequency Response 100 Hz–20 kHz
• Nominal Input Power 30 W
• Maximum Input Power 80 W
• Sensitivity 85 dB/2.83 V/1 m
• Waterproof Characteristics IPx3
• Cabinet HIPS
• Movable angle 81° (degree pitch:13.5°)
• Grille Powder coated iron
• Speaker Terminals Push-type Push-type
• Impedance 8 ohms
• Dimensions (W x H x D) 6” x 9-5/8” x 6-3/4”; 152 x 243 x 171 mm
• Weight 2.9 lbs.; 1.3 kg/unit
