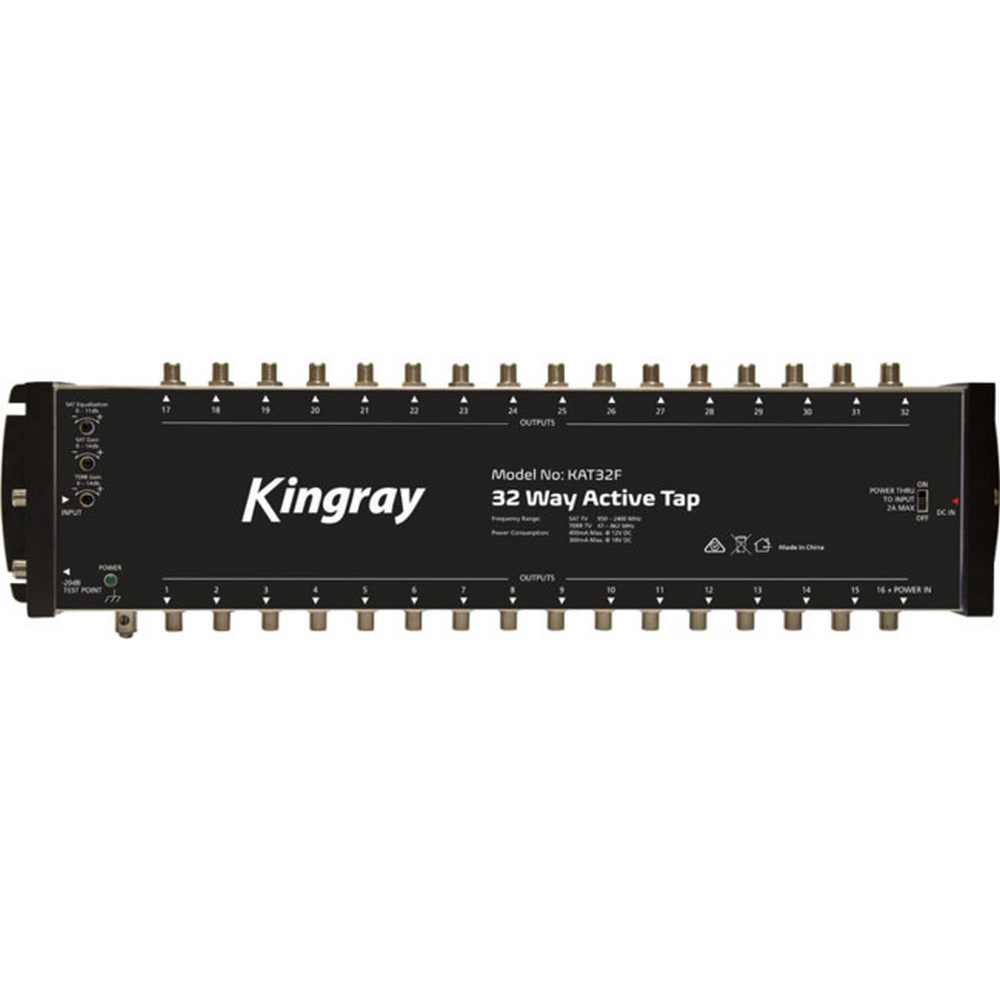

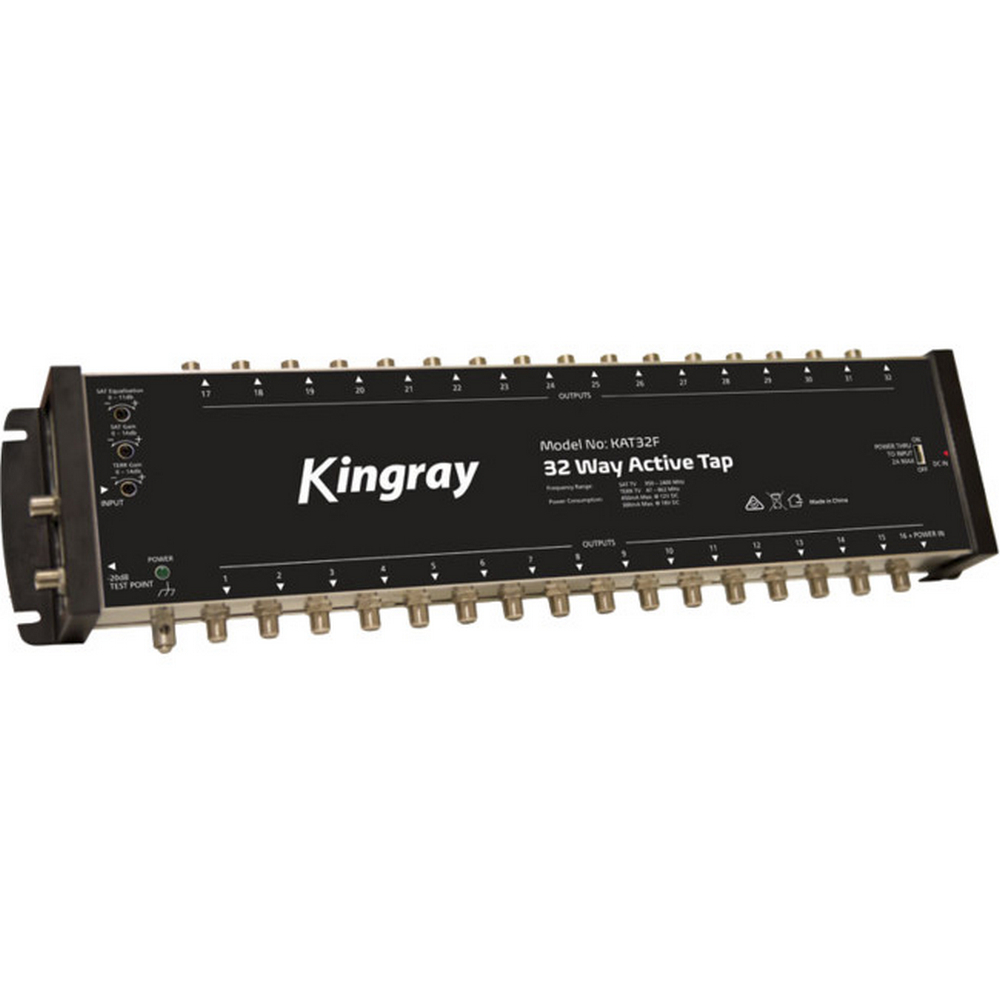

32 Way Active Tap designed for the distribution of terrestrial and satellite signals, 47-862 MHz & 950-2400 MHz Frequency Range & can be either locally or remotely powered.

  • The Kingray KAT32F Active Tap is specifically designed for the distribution of terrestrial and satellite signals in a Multistacker installation.
  • It features high output with adjustable gain and equalisation control.

Features

  • Frequency Range of 47-862 MHz & 950-2400 MHz
  • 1 Input, 32 Outputs
  • 10-14dB Maximum Gain @ 47-862 MHz
  • 14dB Maximum Gain @ 950-2400 MHz
  • 14dB Gain Control for both Terrestrial & Satellite
  • Fixed 4dB Equalisation for Terrestrial
  • 11dB Equalisation Control for Satellite
  • 20dB Test Point
  • Maximum Output Level of 96dB for Terrestrial (60dBuV IMA3 @ EN60728-5)
  • Maximum Output Level of 96dB for Satellite (35dBuV IMA3 @ EN60728-3)
  • Return Loss >12dB
  • Connectors: F-Type
  • Power Consumption: 360mA Max. @ 12V DC
  • Power Consumption: 240mA Max. @ 18V DC
  • Operating Voltage: 12V DC 2A
  • Maximum of 2A power can be sent to the RF input via the power through switch
  • Can be remotely powered with the use of a power injector (PIK2400) & suitable power supply
  • Suitable Power Supply: PSK18M, PSK124F or PSK183F

(KAT32F)

12 Months

SKU KAT32F
Model # KAT32F
Barcode # 9319493280990
Brand Kingray
Unit Of Measure Each
Assembled Width 1.237m
