VOLUME CONTROL WALL PLATES 100V - BOSCH

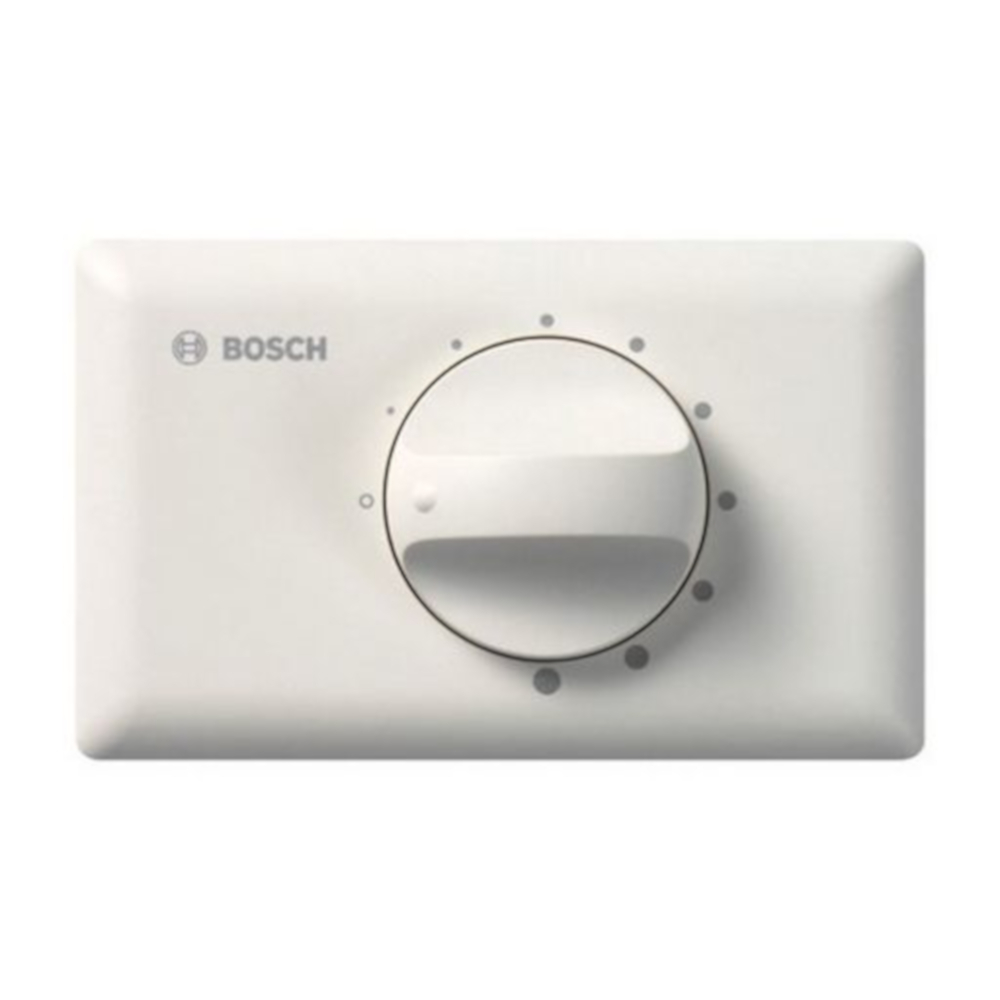

Volume control 100V 36W with relay, landscape

100V LINE WITH EMERGENCY ANNOUNCEMENT

Public address systems are often used for both announcements and background music distribution.

Volume controls can be used to adjust the sound level locally. In the event of an (emergency) announcement, the built-in relay ensures that the message is broadcast at a preset level, independent of the local volume setting.
The volume controls are suitable for 3-wire and 4-wire override systems.
The volume controls are available in 12 W and 36 W and available in portrait (vertical) and landscape (horizontal) design.
The 12 W volume control features 5 attenuation steps of -3 dB and an off position.
The 36 W volume control features 8 attenuation steps of -3 dB and an off position.

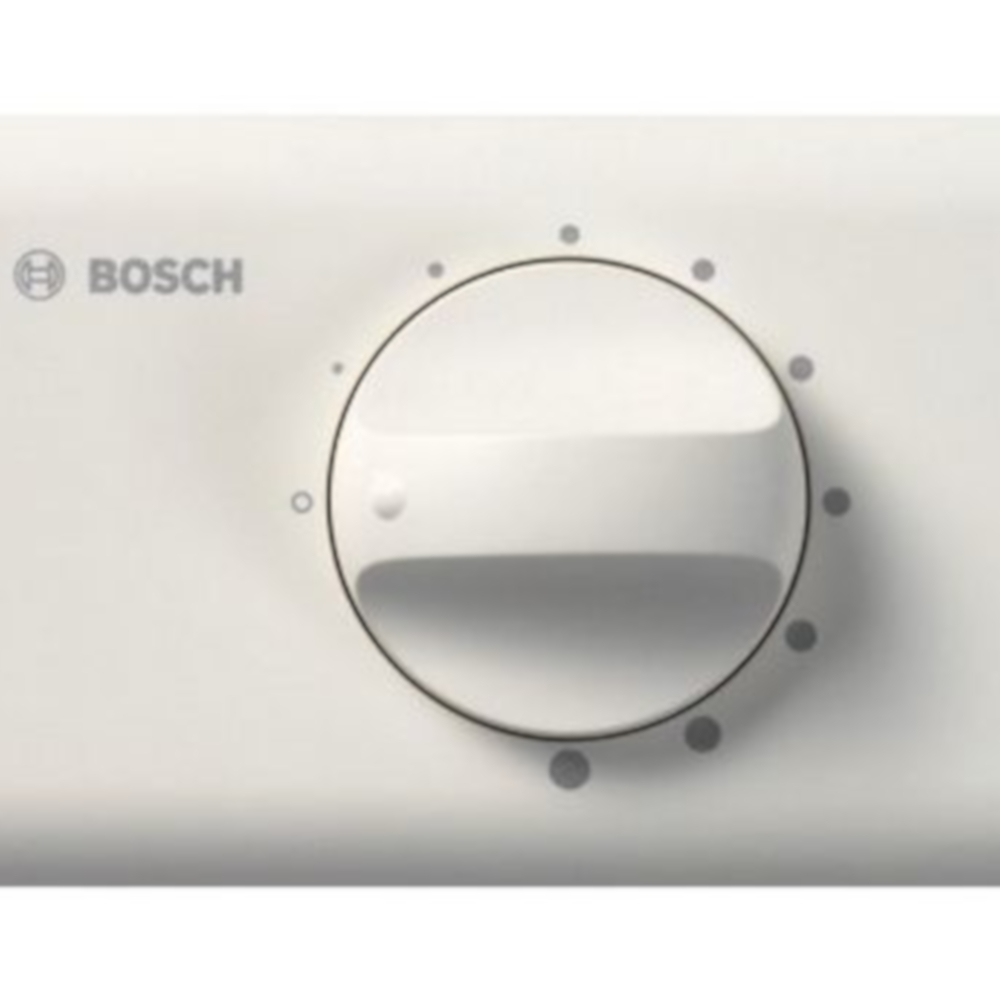

The intuitive graphics around the knob clearly shows the attenuator steps and off position.

• 12W and 36W versions 100V Line Input
• Available in Portrait – and Landscape design
• Suitable for 3-wire and 4-wire override systems
• Built-in 24 VDC override relay
• Robust design

The volume controls can be mounted in standard 2” x 4” electrical installation flush mounting boxes with 2 fixing screws (3 x 15 mm) standard supplied.
The minimum allowable depth of the applied flush mounting box must be 36 mm, allowing convenient wiring.
For the electrical connections, an easy accessible 8-way screw terminal block is provided.

Specifications:
