ATSP38 38dB GAIN CATV AMPLIFIER FOXTEL: F31092

Features:

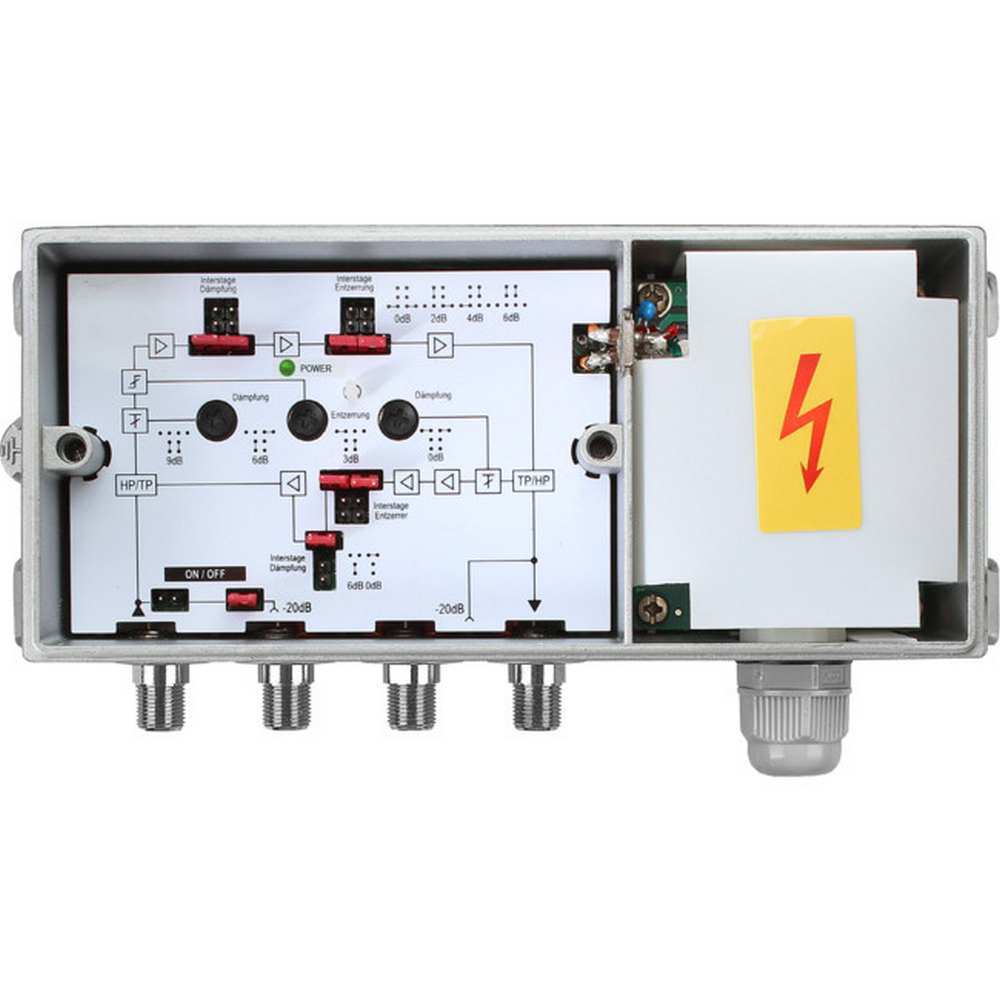

• Attenuation and equalisation adjustable
• Attenuation and equalisation pluggable with jumpers

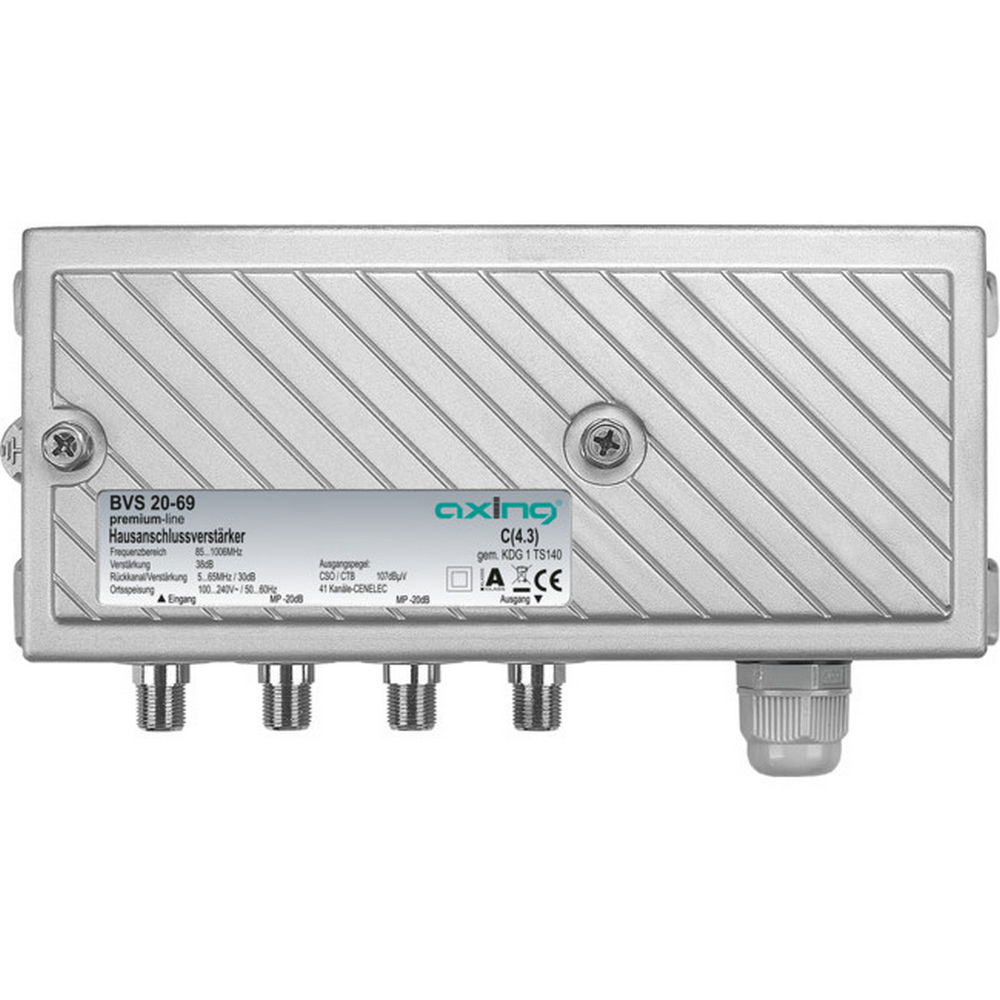

• Solid all die-cast housing
• Test ports at the input and at the output

Specifications:

Forward Path

• Frequency range 85 … 1006 MHz
• Gain 38 dB
• Attenuation adjustable 0 ... 15 dB
• Attenuation pluggable with jumpers 0, 2, 4, 6 dB
• Equalisation adjustable 0 ... 15 dB
• Equalisation pluggable with jumpers 0, 2, 4, 6 dB
• Return Loss = 18 dB
• Noise figure = 5.5 dB
• Maximum output level CSO/CTB 107 dBµV

Return Path

• Frequency range 5 ... 65 MHz
• Gain 30 dB
• Attenuation adjustable 0 ... 15 dB
• Attenuation pluggable with jumpers 0, 6 dB
• Equalisation pluggable with jumpers 0, 3, 6, 9 dB
• Noise figure = 7 dB

Test port Input: - 20 dB ± 2.5 dB, Output: - 20 dB ± 1.0 dB
Power supply 100 ... 240 VAC / 50 ... 60 Hz
Power consumption 10 W
Power indicator LED
Ambient temperature range - 20 ºC ... + 50 ºC
Earth terminal Yes
Dimensions 195 x 90 x 55 mm
