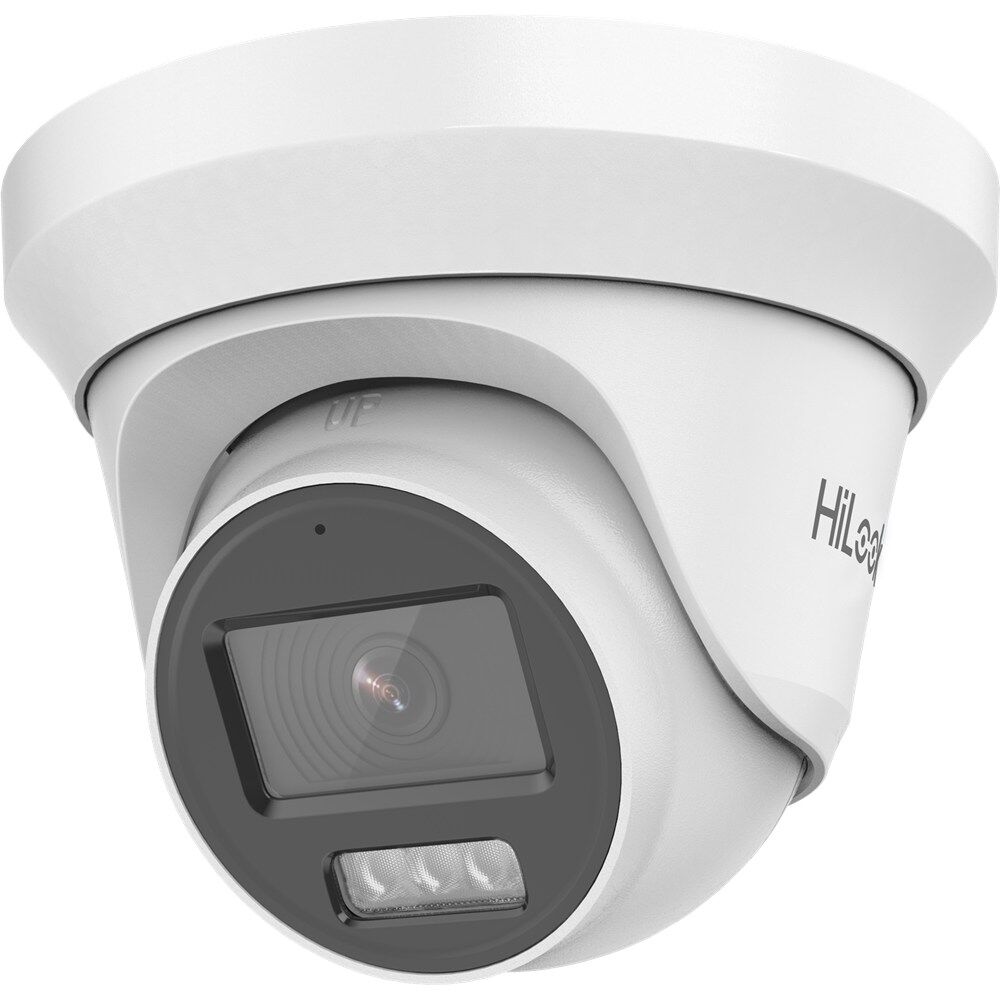

3K Dual Light Audio Fixed Turret Camera

• High quality imaging with 3K, 2960 × 1665 resolution
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 40 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP66)
• High quality audio with audio over coaxial cable, built-in microphone
• Smart-Hybrid light, optimize your security with flexible lighting options

Camera

• Image Sensor3K CMOS
• Max. Resolution2960 (H) × 1665 (V)
• Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
• Signal SystemPAL/NTSC

Lens

• Lens Type2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV
  • 2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8°
  • 3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°
• Lens Mount M12

Microphone

• Pickup DistanceIn a radius of up to 5 m
• Amount 1

Illuminator

• Supplement Light Range
  • IR : up to 40 m
  • White Light : up to 20 m
• Supplement Light TypeSmart, IR, White Light


• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate
  • TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
  • AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps
  • CVI: 4 MP @25 fps/30 fps
  • CVBS: PAL/NTSC
• Day/Night ModeAuto/Color
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

General

• Material
  • Body: metal
  • Enclosure: metal
• DimensionØ127.9 mm × 97.8 mm (Ø5.04" × 3.85")
• Approx. 476 g (0.75 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply
  • 12 VDC ± 25%
  • *You are recommended to use one power adapter to supply the power for one camera.
• ConsumptionMax. 3.3 W

Approval

• Protection IP66
