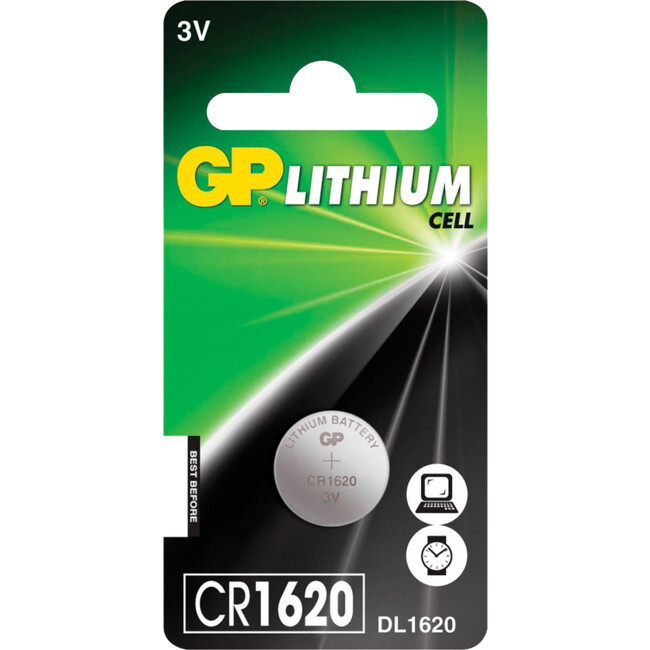

GP Lithium Battery 3V 75 MAH for Calculators- Hearing aids-watches- PDA devices

3V LITHIUM BUTTON CELL / COIN BATTERY - GP

Coin-shaped cells are thin compared to their diameter. The metal can is the positive terminal, and the cap is thenegative terminal.

FEATURES:

Lithium Batteries are primary batteries with outstanding high-energy density
Voltage during discharge is about twice that of ordinary batteries.
The energy density is the highest among conventional primary batteries - 5 to 10 times higher than that of carbon zinc batteries.
These lithium batteries are able to operate at very low temperatures of around -20°C.
Extremely small voltage decrease and very stable voltage during operation.
CR denotes manganese dioxide lithium chemistry. Since LiMnO2 cells produce 3 volts there are no widely availablealternate chemistries for a CR coin battery. Conversely, one LiMnO2 cell can replace two alkaline or silver-oxide cells.
All these lithium cells are rated nominally 3 volts (on-load), with open circuit voltage about 3.6 volts. The IEC "CR" prefix indicates a round, lithium/manganese dioxide cell. Some sizes are also designated with a "BR" prefix, indicating a round lithium/carbon monofluoride cell.

Common Applications:

Electric wristwatches, both digital and analog.
Calculators
Hearing aids
Some remote controls, especially for keyless entry
Backup power for personal computer real time clocks and BIOS configuration data.
Small PDA devices
Various electronic toys (like tamagotchi, Pokémon Pikachu or a Pokéwalker and other various Virtual Pet devices.)
Laser pointers
Small LED flashlights
Battery-operated children's books
Glucometers
Security tokens
Cyclocomputers
Red dot sights and electronic spotting scopes
Manual cameras with light meters, such as the Pentax K1000
LED throwies
Various video game cartridges or memory cards where battery-powered RAM is used to store data.
PCMCIA static RAM memory cards

SPECIFICATIONS:

IEC 60086 designation	ANSI C18 /NEDA designation	Typical Capacity mAh	Dimensions (mm) Diameter x Height	Comments
CR927		30	9.5 × 2.7	This obscure type of lithium coin cell is used extensively in blinkies.
CR1025	5033LC	30	10 × 2.5	Standard Discharge Current: 0.1 mA
CR1216	5034LC	25	12.5 × 1.6	Standard Discharge Current: 0.1 mA
CR1220	5012LC	35–40	12.5 × 2.0	Standard Discharge Current: 0.1 mA, 0.03 mA (BR)
CR1225	5020LC	50	12.5 × 2.5	Standard Discharge Current: 0.2 mA. Maximum discharge current: 1 mA. Maximum pulse discharge current: 5 mA. {Energizer says this type is obsolete.}
CR1616		50–55	16 × 1.6	Standard Discharge Current: 0.1 mA
CR1620	5009LC	75–78	16 × 2.0	Standard Discharge Current: 0.1 mA
CR1632		140 120 (BR)	16 × 3.2	Standard Discharge Current: 0.1 mA, 0.03 mA (BR)
CR2012		55	20 × 1.2	Standard Discharge Current: 0.1 mA
CR2016	5000LC	90	20 × 1.6	Standard Discharge Current: 0.1 mA, 0.03 mA (BR). Often used in pairs instead of CR2032 for devices that require more than 3 V, like blue/white LED flashlights.
CR2025	5003LC	160–165	20 × 2.5	Standard Discharge Current: 0.2 mA.
CR2032	5004LC	220–225	20 × 3.2	Standard Discharge Current: 0.2 mA, 0.03 mA (BR). Maximum discharge current: 3 mA. Maximum pulse discharge current: 15 mA. Common battery in computers to keep the date and CMOS settings current when power is off.
CR2330		265 255 (BR)	23 × 3.0	Standard Discharge Current: 0.2 mA, 0.03 mA (BR)
CR2354		560	23 × 5.4	Standard Discharge Current: 0.2 mA
CR2430	5011LC		24.5 × 3.0
CR2450	5029LC	610–620	24.5 × 5.0	Portable devices requiring high current (30 mA) and long shelf life (up to 10 years)
CR2477		1000	24.5 x 7.7	Standard Discharge Current: 0.2 mA
CR3032		500–560 500 (BR)	30.0 × 3.2	Standard Discharge Current: 0.2 mA, 0.03 mA (BR)
