• Yamaha designed the new VXC speakers to accommodate a growing list of applications in the installation market.
  • While these speakers deliver quintessential Yamaha sound quality, they have also been carefully designed for safe andeasy installation.

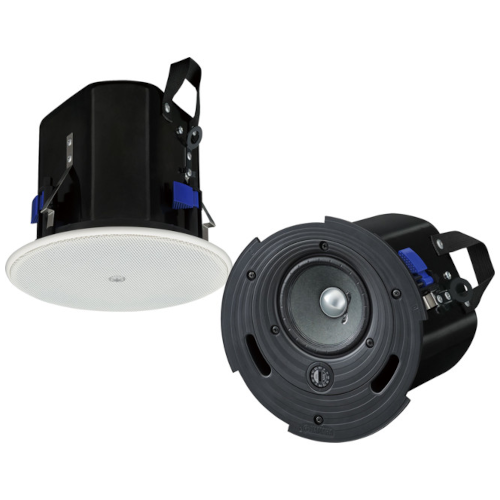

  • Featuring a simple ceiling mount option, this 4" full range ceiling speaker are available in either black or white, or can be painted to match the interior of any application.

Ceiling speakers for any application

  • The VXC Series offers three different woofer sizes, allowing you to choose the speaker that is most suitable foryour venue.

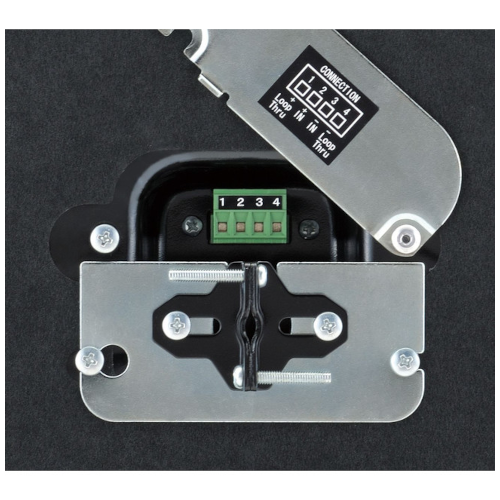

  • Each model has an internal transformer that allows both high and low-impedance drive with just a single speaker, simply by switching the tap on the baffle.
  • Since a single speaker can be used for both operations, inventory control is simplified, and you can easily adapt your system to any changes.

Safe, seamless installation

  • Series speakers' Anti-Drop tab allows them to be mounted temporarily in the ceiling, freeing your hands for better safety and ease of installation.
  • An attached, flexible carrying band also makes the speakers very portable, allowing you to carry multiple speakers at once safely.
  • Additionally, VXC Series speakers also come complete with O-rings and tile rails for a safer, smoother installation.

Speaker Design

  • Several aspects of these speakers' design reflect a strong emphasis on functionality as well as the aesthetic features of their construction - effectively enhancing soundquality and speaker performance without disturbing the interior decor of the installation.
  • This concept is evident in the hexagonal design featured on the grille of both series' speakers that actually improves sound clarity by raising the aperture ratio.
  • Even the innovative design of the VXC's tweeter improves sound clarity by providing unrestricted woofer movement.



(VXC4W)

12 Months

Speaker type Full-range, Bass-reflex
Frequency range (-10dB) 80Hz - 20kHz (Half-space:2p)
Nominal coverage 130°Conical (Half-space:2p)
Components LF-HF 4" full-range
Power rating NOISE 30W
PGM 60W
PEAK 120W
Nominal impedance 8O
Transformer taps 100V 30W (330O), 15W (670O), 7.5W (1.3kO)
70V 30W (170O), 15W (330O), 7.5W (670O), 3.8W (1.3kO)
SKU VXC4W
Model # VXC4W
Barcode # 4957812523615
Brand YAMAHA
Unit Of Measure Each
